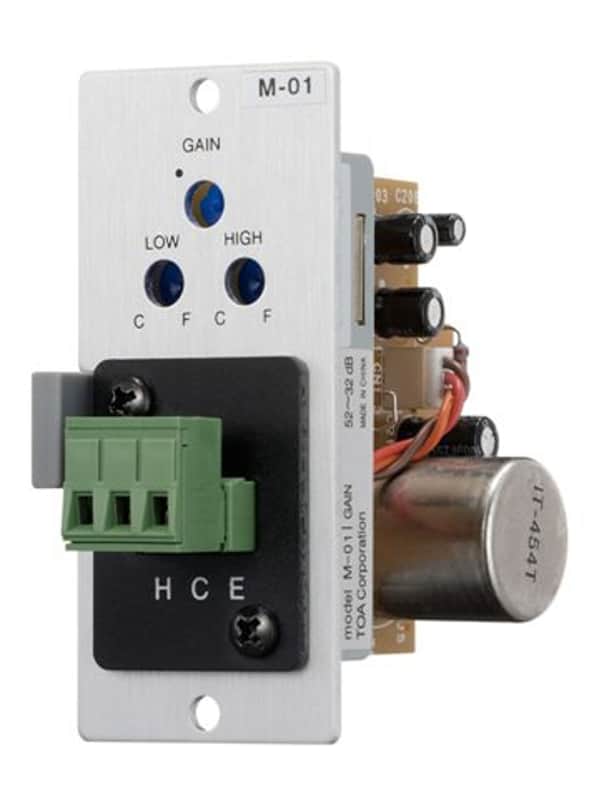

TOA M01S Microphone Input Module for 900 Series Amplifiers, Removable Terminal Block

The M01S is a microphone input module for use with the 900 Series of power amplifiers. It has a transformer-balanced microphone input with terminal block connector, phantom power supply function, and gain / tone controls.

Features:

• For use with 900 Series power amps
• Mic input module with removable terminal block connector
• Phantom power supply function
• Gain/tone controls
• For balanced, low-impedance mics

Specifications:

• Power Source: 24VDC (supplied from the main frame)
• Current Consumption: 9mA
• Controls/Functions:
  • Gain Control
  • High and Low Cut Filters
  • Phantom Power
• Performance Input: 600tb
• Input Sensitivity: -70 to +50dBu
• Input Impedance: 600Ω, balanced transformer-isolated
• Frequency Response: 25Hz - 20kHz ±2.0dB
• Distortion: 0.05% or less (1kHz, output: 0dB)
• Noise Level: -86dB (20Hz - 20kHz BPF)
• Gain (adjustable): 32 to 52dB
• Maximum Input: -14dB
• Signal to Noise (S/N): -126 (EIN 200Ω)
• Physical Connector: Removable terminal block
• Dimensions: 1.38" x 3.07" x 3.46" (35 x 78 x 88mm)
• Weight: 0.24lbs (110g)
