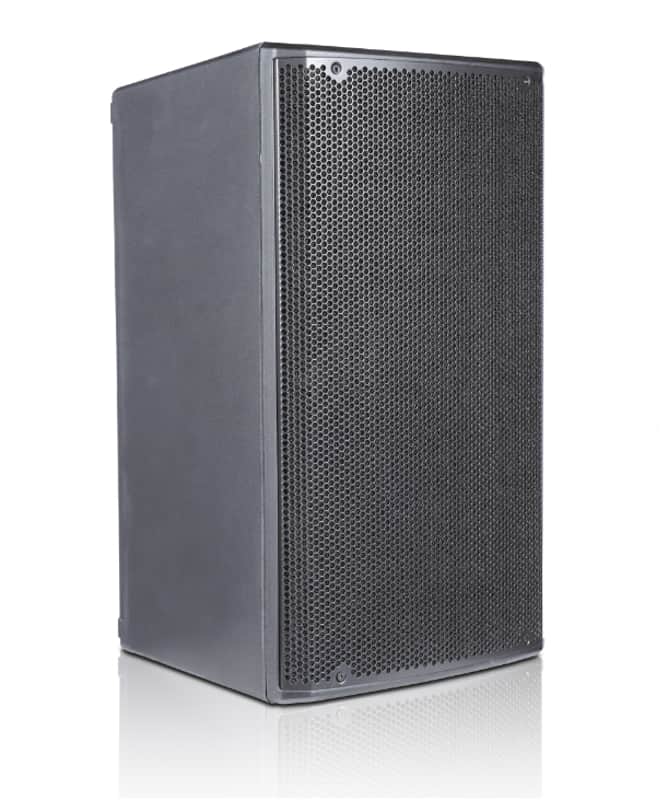

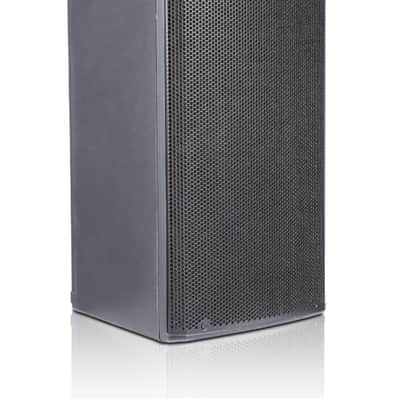

DB Technologies OPERA-12 12" 2-Way Active Speaker, 600W, DSP

The dbTechnoliges OPERA 12 has exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

dbTechnoliges OPERA 12 Features:

• 1200 W peak power
• 600 W RMS power
• Newly designed asymmetrical horn
• Advanced DSP with fir filters
• 2 input channels (MIC-LINE/MIC-INSTR)
• Selectrable output channel (LINK CH1/MIX CH 1+2)
• 8 EQ presets
• Fresh full grille design
• Stage montior use

dbTechnoliges OPERA 12 Specifications:

• Technical Data:
  • Speaker Type: 2-Way Active Speaker
• Acoustical data:
  • Frequency Response [-10dB]: 52 - 20.000 Hz
  • Frequency Response [- 3dB]: 67 - 19.600 Hz
  • Max SPL: 129 dB
  • HF: 1" Exit, 1.4 v.c.
  • Type HF: Compression driver
  • Horizontal Directivity: 100° (85° up/120° down)
  • Vertical Directivity: 85° (+ 25°/-60°)
  • Horn: Asymmetrical Horn
  • LF: 12", 2" v.c.
• Amplifier:
  • Amp Technology: Amp SMPS Power supply dual range
  • Amp Class: Class D
  • RMS Power: 600 W
  • Peak Power: 1200 W
• Processor:
  • Controller: DSP 56 bit
  • AD/DA Converter: 24 bit/48 KHz
  • System Presets: Rotary Encoder (8 Presets)
  • X-Over Frequency: 2000 Hz
  • Limiter: Peak, RMS, Thermal
  • Advanced DSP Functions: Linear Phase FIR Filters
• Input:
  • Signal Input:
    • 1xCombo (XLR/Jack 6.3 mm) MIC/Line
    • 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
  • Signal Output:
  • 1x XLR Male (CH1 Link/Mix OUT)
  • Selectable
• Mechanics:
  • Housing: Polypropylene with internal frame
  • Grille: Full grille
  • Handles: 1 on left Side, 1 on Top
  • Rigging Points: 2XM10 on Top + 1x M10 on Back
  • Pole Mount: D36 mm
  • Angles up: Monitor use 45°
  • Dimensions (WxHxD): 13.78" x 25.28" x 13.74" (350 x 642 x 349 mm)
  • Weight: 31.53 lbs (14.3 kg)
