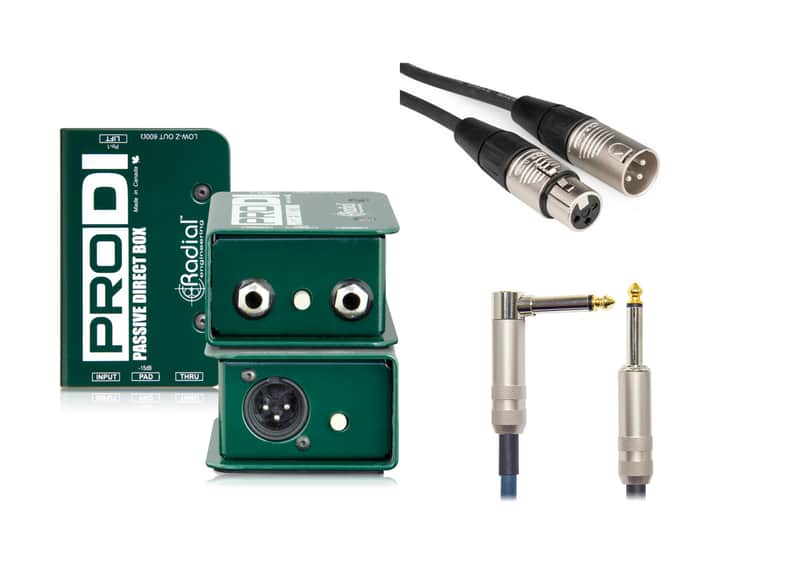

This bundle includes the PRODI direct box, MIC-XX-25 and G-HT-25-R cables.

The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140kΩ input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL® shield to protect against electromagnetic fields that can cause unshielded transformers to distort.

Cable Up Industrial's line of High-Tec guitar cables are built with special low capacitance, low loss polyethylene insulated cables with oxygen free copper cores designed specifically for high impedance instrument applications. The High Tec cables feature a conductive plastic PVC layer next to a copper braided shielding, thus minimizing static noise due to mechanical movement. These cables deliver a pristine and totally clear sound with minimal noise, offering an essential uncolored guitar sound for discerning guitar players.

Cable Up's rugged Industrial line features high-performance, balanced analog microphone cables. The soldered XLR connectors are fitted with gold-plated contacts for reliable professional use at a competitive price.

All Cable Up® Industrial cables are covered by a 1-year unconditional warranty and a limited lifetime warranty against defects in material or workmanship.

PRODI Features

• Compact passive direct box for stage and studio
• Able to handle huge transients without distortion
• Transformer isolation eliminates noisy ground loops
• Plug and play easy to use feature set – on stage or in the studio

PRODI Specifications

• Audio circuit type: Passive, transformer based
• Transformer: Eclipse ET-DB2, 12:1 ratio
• Number of channels: Single channel (mono)
• Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
• Dynamic range: 128dB
• Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
• Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
• Input Impedance: 140k Ohms, unbalanced
• Output Impedance: 150 Ohms, balanced
• Maximum Input:+18dB @ 20Hz
• Features
  • Input pad, Ground lift
  • Input Connectors: 1/4" in & thru
  • Output Connectors: XLR-M out
• General
  • Construction: 14 gauge steel chassis & outer shell
  • Size (L x W x D): 4.25” x 2.75” x 1.75" (108 x 70 x 44mm)
  • Weight: 1.2lb (0.54kg)
  • Shipping size (L x W x D): 6.5" x 4" x 3" (165 x 76 x 102mm)
  • Shipping weight: 1.35lb (0.61kg)
  • Power: Passive, no power required
  • Conditions: For use in dry locations only between 5°C and 40°C
