PVA18 18w TMB18 high gain hand wired DIY guitar amp kits

Power Transformer used in Australia can supply now .
The cost of shipment includes tariff. ( DDP term) not Remote Area Surcharge
Amp kits of KLDguitar PVA 18 amplifier is 18w high gain hand wired guitar amp based on Marshall TMB18. It has two presence controls. "SKY" controls high Freq tone , "Earth" controls low Freq tone. The power amp is Class AB amp consisted by two EL84 tubes. It utilized eyelet board construction for service and reliability. High-quality coupling capacitors and resistors are selected for maximum tone, performance and reliability.
Features

·18w(rms) 4,8ohm
·3x12ax7, 2xEL 84(Not included)
·Brass Eyelet hand wired.
·Seven controls: Gain, Master , Bass, Middle, Treble ,Earth(Lower Freq), SKY(High Freq).
·Standby
·Pentode/Triode SW
·Speaker output jacks:4 , 8, 16ohm
·Precise parts used lowest noise 5W metal oxide power resistors,
·630 V voltage Axial lead MPT capacitor high ripple current capability with low ESR.
·All hand wired boards of KLD guitar amp kits have been passed through strict test before they left our factory.
Amp kits include:

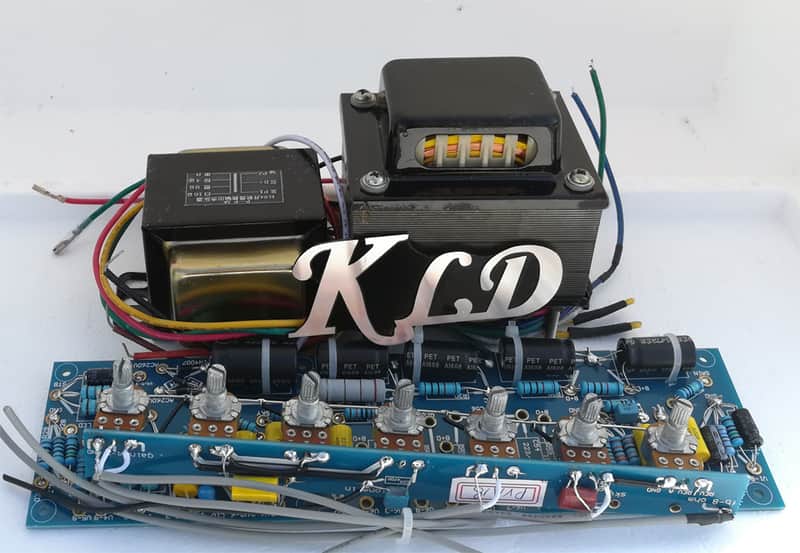

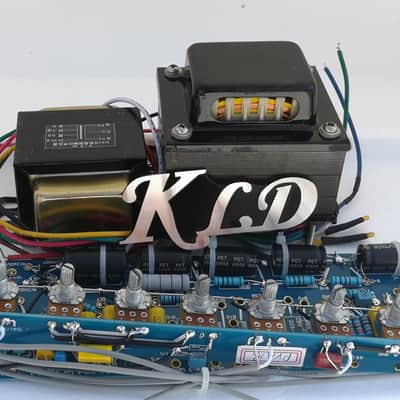

Power and output transformers, Eyelet board ofPVA18, total components of amp kits soldered on board, Resistors, Capacitors, Sockets of tube, socket of input and output, Switch.
Pack: Carton.
Shipment: Express delivery service.
Delivery time: within seven days.
Tracking :17track net
Assembled manual : download from KLDguitar

Good upgrade project for DIY amp.
Please go to KLDguitar website evaluating your skills and experiences of building amp by self. Before you start this project, must answer "YES " to all questions in NO.3 and almost all of the questions in NO.1 in the checklist.
There is still fatal high voltage in tube amp even if power off.
Tech support
The assembly manual KLDguitar amp kits includes several parts: 1. General guideline of assembly amplifier kits and pictures figures, how to deal with Grounding, hum and squealing(DOC of this amp kits homepage). 2. Assembly manual of the amp kits(DOC of this amp kits homepage). 3. Explain working principle of this amp (TECH homepage).4. Reference Modification and upgrade(TECH Homepage)
KLD will not accept any returns on amplifier kits and/or parts that have been assembled, soldered or modified
