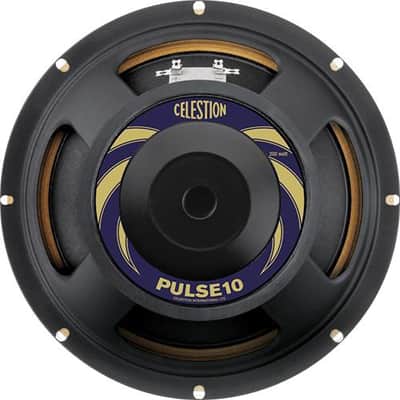

Celestion Pulse10 - Ferrite 200 watt 10" Bass Speaker - 8 ohm, P/N: T5968

With its robust steel-chassis, the PULSE10 is a 10 inch bass guitar speaker that provides a rock-solid bass performance whether alone in a single speaker combo, in a 4x10 or even an 8x10 cab. Expect a tight, punchy low end with a warm mid-range that’s full of presence, bringing focus and articulation to your playing. This heavy-duty driver truly delivers bass you can feel as well as hear.

Features:

General Specifications:

• Nominal diameter: 10", 254mm
• Power rating: 200W
• Nominal impedance: 8 ohm
• Sensitivity: 94dB
• Magnet type: Ferrite
• Voice coil diameter: 2", 50.8mm
• Coil material: Copper
• Cone material: Kevlar loaded paper
• Former material: Polyimide
• Surround material: Cloth-sealed
• Frequency range: 45-3500Hz
• Xmax: 0.15", 4mm
• Gap depth: 0.31", 8mm
• Voice coil winding width: 0.62", 16mm

Small Signal Parameters:

• D: 0.21m/8.3in
• Fs: 68Hz
• Mms: 32.9g/1.16oz
• Qms: 2.54
• Qes: 0.53
• Mmd: 29.26g/1.03oz
• Qts: 0.44
• Re: 6.03 ohm
• Vas: 25.8lt/0.91cu.ft.
• BI: 12.88Tm
• Cms: 0.15mm/N
• Rms: 5.79kg/s
• Le (at 1kHz): 0.92mH

Mounting Information:

• Cut-out diameter: 9", 229mm
• Diameter: 10.1", 256mm
• Mounting slot dimensions: 0.24x0.31", 6x8mm Ø
• Mounting slot PCD: 9.6", 245mm
• Number of mounting slots: 4
• Overall depth: 4.3", 110mm
• Unit weight: 6.6lb, 3k
