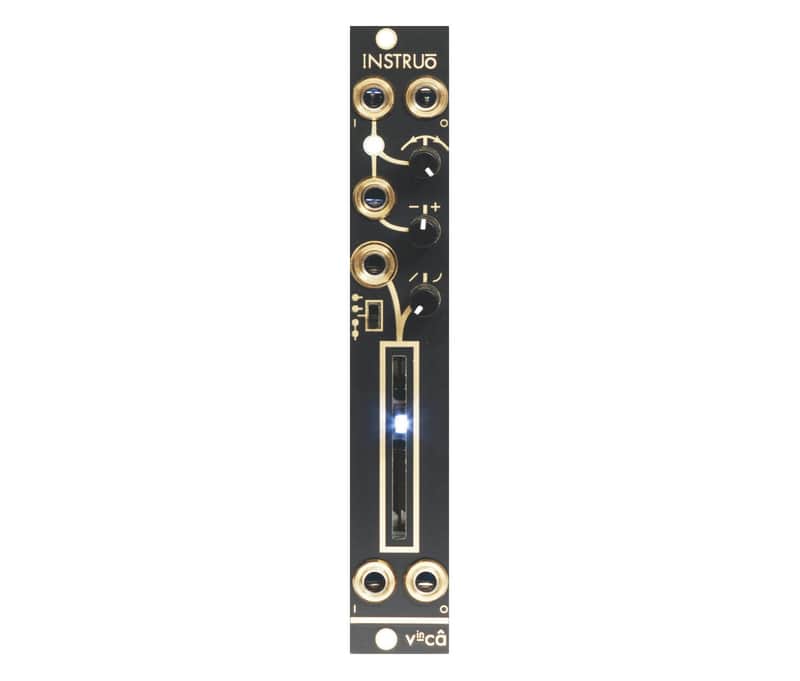

More than just a dual VCA, the Vinca can be a controller, mixer and ring modulator, compressor, signals can be scaled, offset, amplified, attenuated and all CV controllable. The top channel features a four-quadrant VCA with attenuverters over both modulator and carrier signals. The lower channel interpolates from linear to exponential response and has a full length fader for optimum performability. The two vca's can be switched to operate in series or in parallel, opening up a surprising number of routing capabilities. The vinca also features rear sockets allowing them to be daisy chained across a system ad infinitum to fence multi-channel mixing/routing eco-system. With nothing plugged in, each channel also has a normalised DC reference voltage at its output which can be scaled to give you full fader control over anything from -/+10V.

Features:

• Four quadrant multiplier (ring rnodulator)
• Linear/Exponential VCA
• 2 channel mixing
• CV scale and offset
• Rear Sockets

• 4 HP 27 mm deep

DualStereo VCA RingModulator
