Smooth Tone, Every Time

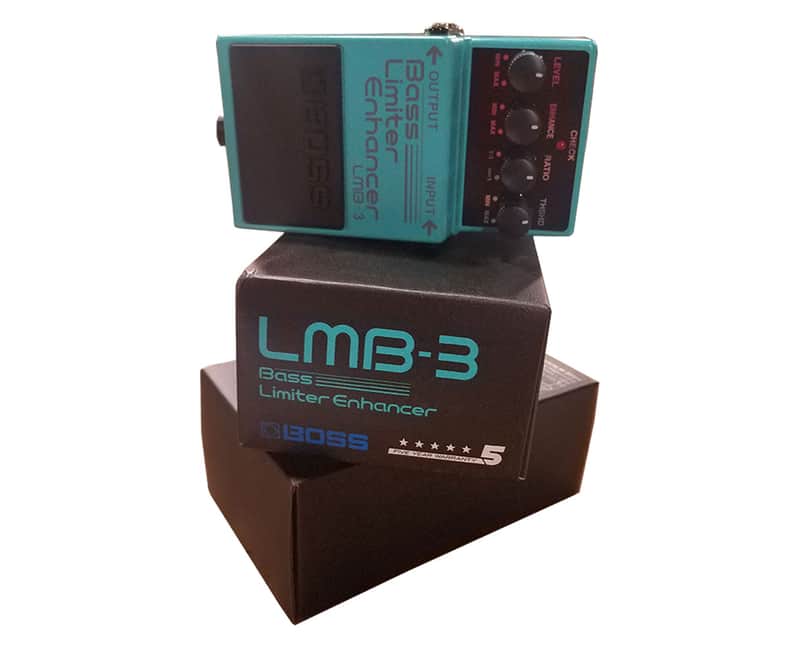

The LMB-3 affords complete control over a bass guitar's dynamic range using a limiter effect and an enhancer circuit designed specifically for electric bass.

• Full control of bass guitar's dynamic range via threshold level and ratio knobs
• Enhancer provides increased bass clarity and presence
• AC adaptor or 9V battery operation

Features

• Nominal Input Level : -20 dBu
• Input Impedance : 1 M ohm
• Nominal Output Level : -20 dBu
• Output Impedance : 1 k ohm
• Recommended Load Impedance : 10 k ohms or greater
• Bypass : Buffered bypass

Controls :

• Thshd knob
• Ratio knob
• Enhance knob
• Level knob
• Pedal switch

Indicator : CHECK indicator (Used for indication of check battery)

Connectors :

• Input jack: 1/4-inch phone type
• Output jack: 1/4-inch phone type
• Dc in jack

Power Supply :

• Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)
• Current Draw : 17 mA

Expected battery life under continuous use :

• Carbon: Approx. 13 hours
• Alkaline: Approx. 25 hours

Accessories :

• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Carbon-zinc battery (9 V, 6F22)

Options : AC adaptor: PSA series

Size

• Width : 73 mm 2-7/8 inches
• Depth : 129 mm 5-1/8 inches
• Height : 59 mm 2-3/8 inches
