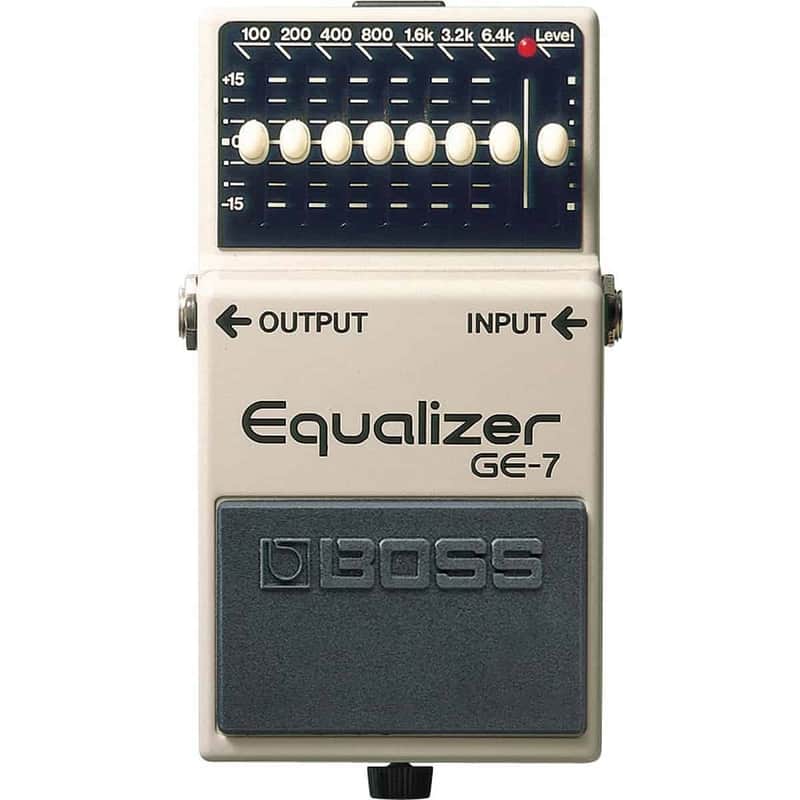

BOSS GE-7 Seven-Band Graphic Equalizer Pedal

The BOSS GE-7 is a compact seven-band graphic equalizer pedal engineered for precise tone shaping across the full range of electric guitar. It offers +/-15 dB of boost or cut at seven guitar-optimized frequency bands — 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHz, 3.2 kHz, and 6.4 kHz — plus a master Level slider.

The GE-7 serves a wide range of players and applications: guitarists who need to tame problem frequencies in a live mix, players compensating for room acoustics, and those using it as a mid-boost or presence-boost pedal for solos.

The GE-7 fits naturally into any signal chain — in front of an amp for tone sculpting, in an amp's effects loop for post-preamp EQ, or stacked with drive pedals. Its standard BOSS compact format ensures compatibility with all BOSS power supplies and most pedalboard systems. Backed by the BOSS five-year warranty.

Key Features

• Seven Guitar-Optimized Bands: Frequency centers at 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHz, 3.2 kHz, and 6.4 kHz.
• +/-15 dB Boost/Cut Per Band: Wide range of tonal adjustment enables subtle correction or dramatic shaping.
• Master Level Slider: Independent output level control allows volume balancing or overall boost.
• Peaking and Shelving Filters: Six peaking filters plus a high-frequency shelving filter deliver natural, musical EQ response.
• BOSS Compact Format: Industry-standard enclosure compatible with all BOSS power supplies.
• Long Battery Life: Up to 19.5 hours on alkaline battery.
• Buffered Bypass: Maintains signal integrity across long cable runs.

Technical Specifications

• Input Impedance: 1 M ohm
• Output Impedance: 1 k ohm
• Current Draw: 30 mA
• Battery Life: Approx. 19.5 hours (alkaline)
• Width: 2-7/8 inches
• Depth: 5-1/8 inches
• Height: 2-3/8 inches
• Weight: 15 oz (including battery)
