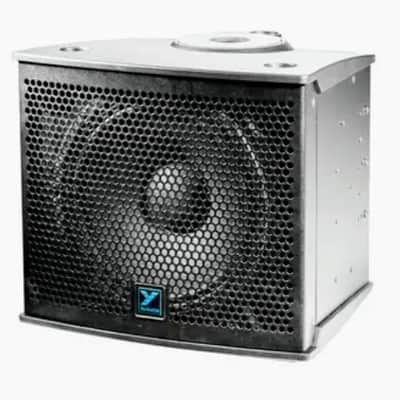

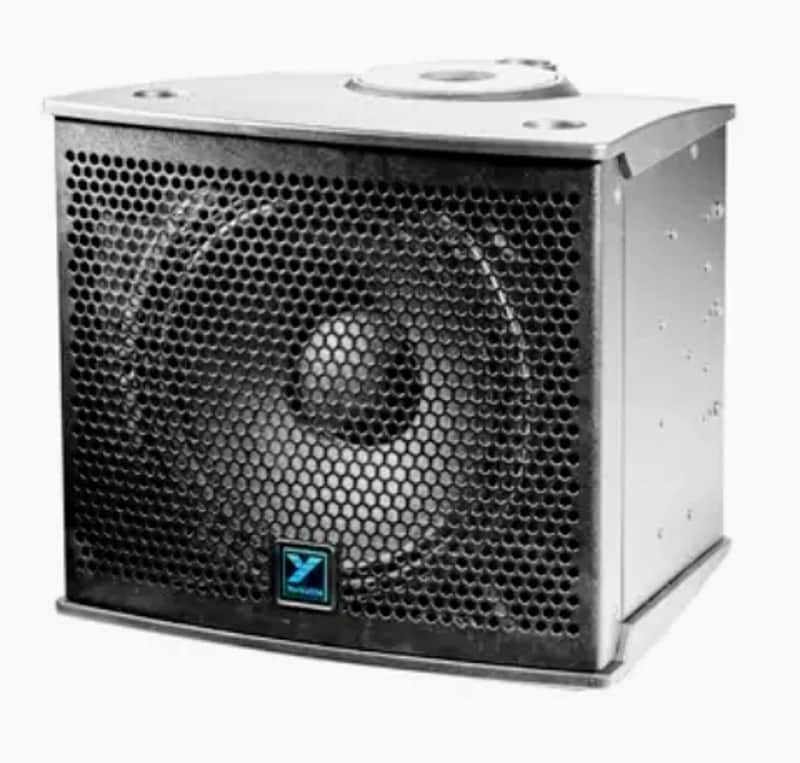

Yorkville NX10C | 10" Coaxial Powered PA Speaker. New with Full Warranty!
This seller has not set a shipping cost for Bulgaria. Please contact them to ask about shipping.
Our users rate Reverb
Price increase April 15. Don't Delay!
Yorkville NX10C | 300W Powered 1/10” COAX woofer w/ an internal 1” driver & built-in mixer
Brand New with Full Manufacturer's 2-Year Unconditional No-Fault Warranty!
Overview
No need to bring separate stands for stage lighting and speakers when NX10C's can be mounted under the light bars, saving valuable stage space.
For side-wash monitor applications on tight stages, the NX10C can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.

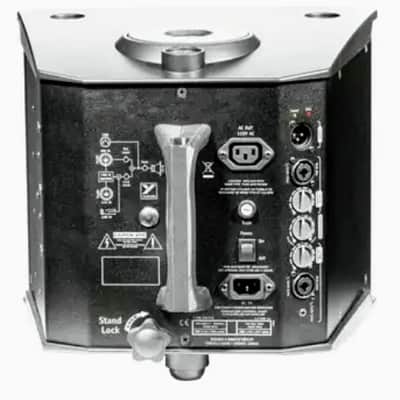

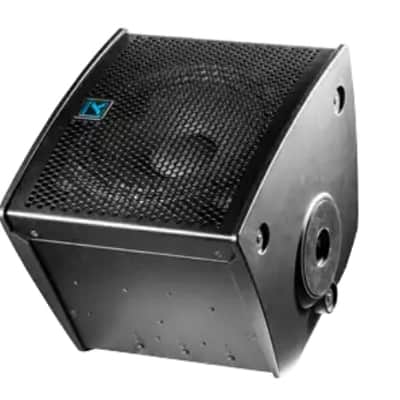

The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C to be used as a compact wide coverage floor monitor or center fill cabinet.
Versatile inputs for mic or line level sources as well as an 1/8th-inch TRS jack allow the NX10C to direct connect to any audio source.
Specs
Active or Passive Active
Program Power (Watts) 300 Watts (600 Watts Peak)
Biampable Self Powered
Max SPL (dB)125dB Peak (122dB Continuous)
Frequency Response (Hz +/- 3dB)80Hz - 20kHz
Crossover Frequency (Hz) 2500Hz
Driver Configuration Coaxial 10-inch/1-inch
HF Driver(s)1-inch Throat, Ceramic Magnet, 1.4 inch PETP Film
HF Dispersion (°H x °V)60 x 60
LF Driver(s)10- inch Ceramic Magnet with a 2.5" voice coil
HF Amplifier Type Class A/B
LF Amplifier Type Two Tier Class- H
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max)100-240V, 12-5A, 1200W
Inputs 3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4" inputs are parallel
Input Sensitivity (Vrms Sine)1.23 Vrms, +4dBu
Mixer Controls
- Contour (Playback/Vocal Mode)
- Level Controls Line/Mic
- Limiter Yes
LED Indicators Power, Clip
Feet Yes
Pole Mount Adapter (1 3/8"-3.5cm) Pole Through
Enclosure Materials Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
Grille Perforated Metal
Dimensions (DWH xbackW, inches)13 X 13.5 X 12
Dimensions (DWH xbackW, cm)33 x 34.3 x 30.5
Weight (lbs/kg)25 / 11.3
Specifications subject to change without notice
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Categories | |
| Made In |
|
