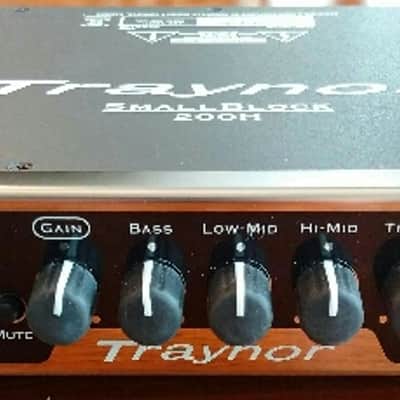

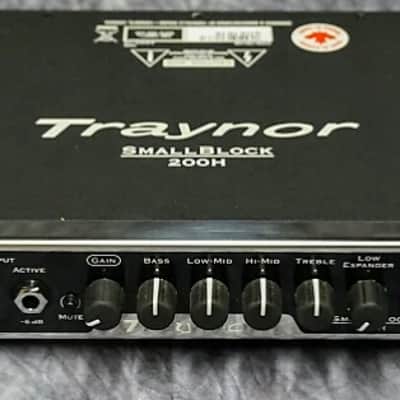

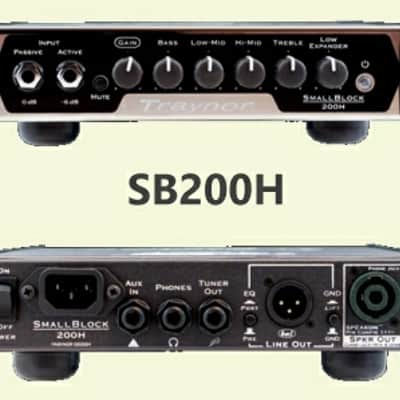

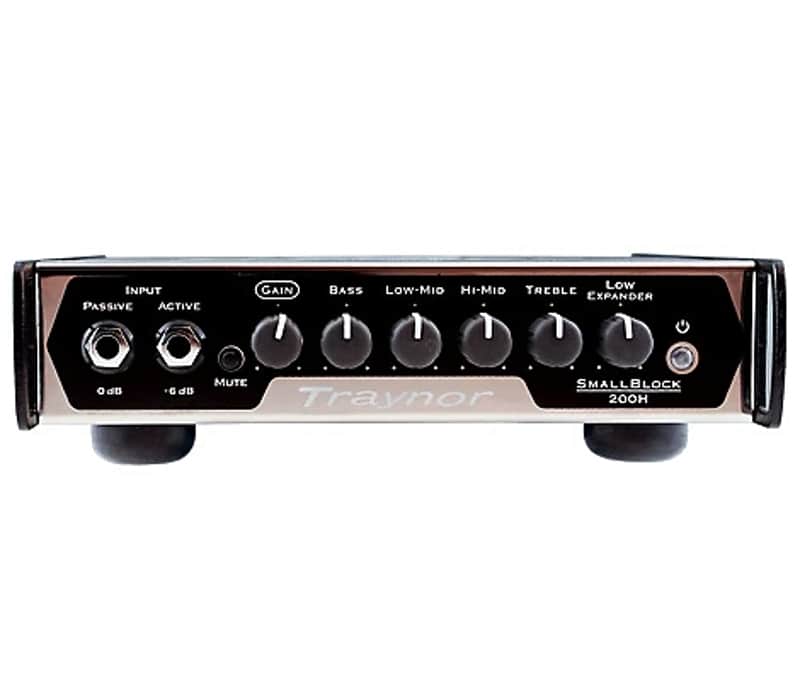

Traynor SB200H
Ultra compact and lightweight 200W Bass Head

Summary
The Small Block 200 Head! 200-watt ultra compact bass head w/ 4-band EQ, Expander, & more

Overview
The ultra-compact and lightweight 200-watt Traynor Small Block SB200H head is built for the travelling musician. At less than 7 ½ inches (20cm) wide and weighing under 1.5lbs (680g), the SB200H is small in stature, but big on tone. Loaded with essential features including Active and Passive level instrument inputs XLR DI output, a versatile four band EQ with an additional low frequency expander, the SB200H allows virtually any tone to be dialed in quickly and easily.

Designed to withstand the rigors of the road, the SB200H is built using an all-metal chassis with front mounted handles to protect the knobs and jacks. A combination Speakon™ - ¼-inch speaker output jack ensures the SB200H is included for maximum convenience. A ¼-inch Auxiliary Input allows source material to be blended with bass making the SB200H a perfect rehearsal tool. A ¼-inch headphone out is provided for private practice.

The SB200H is made in Canada and like all Traynor products, covered by our unconditional two-year transferable warranty.

Features

• Ultra Compact and Lightweight Design
• All-Metal Chassis
• Versatile 4-band EQ with Additional Low Frequency Expander
• Passive and Active Inputs
• Selectable Pre / Post XLR DI Output
• Auxiliary Input & Headphone Output for Private Practice
• Convenient Speakon™ - ¼-inch Combi-jack Speaker Output
• Made in Canada

Specs

Power @ min.  impedance (Watts): 200 watts

Minimum Impedance (Ohms): 4

Burst Power - 2 cycle: 250 watts

Inputs: Passive 0 dB, Active -6 dB

Controls: Gain, Bass, Low Mid, High Mid, Treble, Low Expander

Additional Inputs: ¼-inch Aux Input

Line Out (type / configuration): Balanced Pre/Post Line Out W/ Ground Lift Switch

Line Out Sensitivity (Vrms): 1 Vrms

LED Indicators: Blue - Power / Red - Protect/Mute

Protection: Clip, Thermal, Overcurrent

External speaker output / location: Speakon™ / ¼-inch Combi-Jack

Other Features: Aux Input / Headphone Out /Mute / Tuner Out

Dimensions (DWH, inches): 7.5 x 8 x 1.75

Dimensions (DWH, cm): 19.1 x 20.35 x 4.5

Weight (lbs / kg): 1.5 / 0.68

Specifications subject to change without notice.
