X-Fade Modular ADSR 4

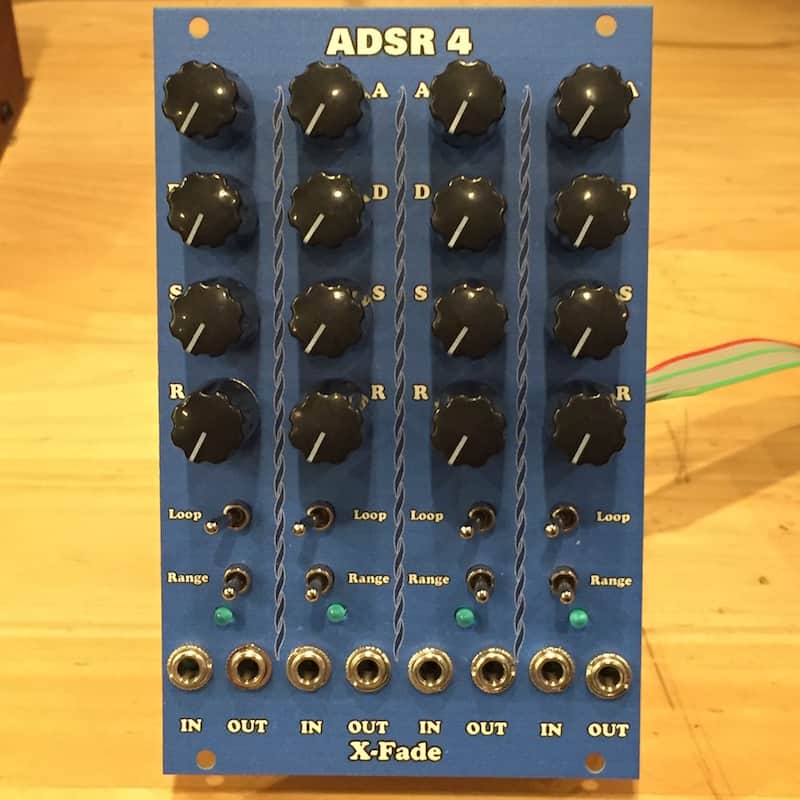

The ADSR4 is a quad envelope generator module with four ADSRs.

■About Features
・ADSR knob
Set each time level.

・Loop Switch
When on, Env is repeated while the gate signal is input.
Set all the ASR knobs to 0 and gradually turn the D knobs to see the effect clearly.

・3 Position Range Switch
Switches the ADR time range in three steps from the right: High/Low/Mid.
*There may be slight differences in the speed of the four channels due to individual component differences.

・In/Out Jack
Gate input and Env output jacks
The gate in of channel 1 at the left end is internally wired to the gate in jack of the next channel on the right.
For example, if you plug the gate in jacks of channels 1 and 3 respectively, 2 will work together with the gate input to 1 and 4 will work together with the gate input to 3.

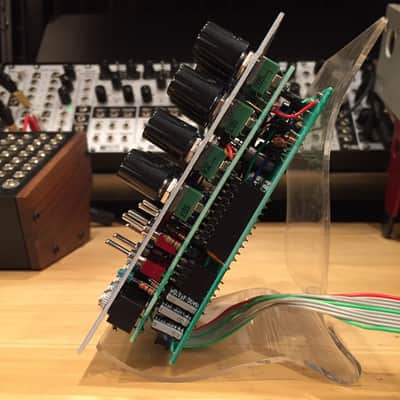

16HP  Max Depth:28mm

As this is a full handmade product, please be aware that there may be small scratches or paint baldness on the panel.

Operation manual isn't included.
