Sansui G-801 120WPC Stereo Receiver Professionally Restored 1-Year Warranty

Sansui G-801 120WPC Stereo Receiver – Professionally Restored – 1-Year Warranty

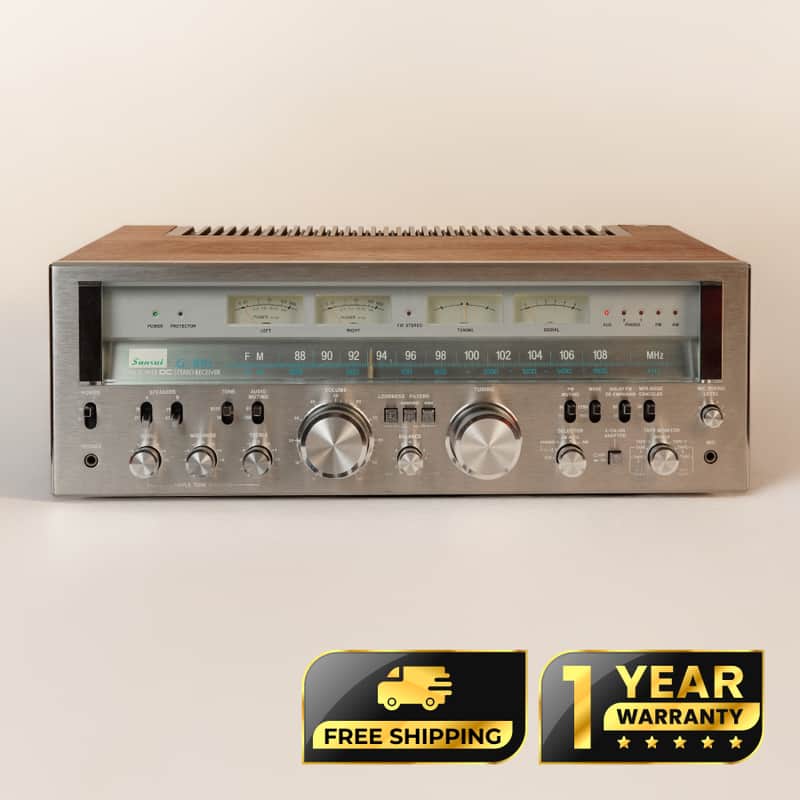

Up for sale is a Sansui G-801 Pure Power DC Stereo Receiver, one of Sansui’s substantial high-powered receiver designs from the late 1970s.

Rated at 120 watts per channel into 8 ohms, the G-801 combines Sansui’s direct-coupled amplifier architecture with a large power supply, extensive analog controls, illuminated tuning display, and large power meters.

This specific unit has been professionally inspected, serviced, and tested by HQaudios. Service addressed the documented left-channel and signal-path operating issues while preserving original components wherever they remained within proper operating condition.

Key Highlights

• Authentic Sansui G-801 Pure Power DC Stereo Receiver
• 120 watts per channel into 8 ohms
• Pure Power DC direct-coupled amplifier design
• Three-band Bass, Midrange, and Treble controls
• Selectable tone-control turnover frequencies
• Subsonic Filter and High Filter
• Loudness and Audio Muting
• Dual Speaker System A / B operation
• Phono, Aux, Tape, Pre Out / Main In connectivity
• Large illuminated tuning display and power meters
• Professionally serviced by HQaudios
• Multiple electrolytic capacitors replaced during service
• Switches and signal-path contacts cleaned and checked
• Functional and extended listening tests completed
• Video demonstration available
• 1-Year HQaudios Warranty

Professional Restoration & Service

During the initial inspection, the service record documented an operating issue affecting the left channel / stereo signal path, together with concerns involving the Balance control and Pre Out / Main In signal path.

Service work performed on this receiver included:

• Inspection and targeted service of the power-supply and related amplifier circuitry
• Replacement of multiple electrolytic capacitors in the serviced areas
• Documented replacement values including 47µF, 100µF, 220µF, and 470µF
• Inspection of the Balance-control circuit and associated signal path
• Inspection and service of the Pre Out / Main In signal-path areas
• Cleaning of switches and electrical contact points
• Verification of left/right signal continuity after service
• Exterior cleaning and detailing while preserving the receiver’s vintage character

Final Testing

After service, the Sansui G-801 underwent comprehensive functional and listening tests.

The following areas were checked:

• Left and right channel operation
• Stereo function
• Amplifier output
• Tuner reception
• Balance control
• Inputs and outputs
• Pre Out / Main In operation
• Speaker outputs
• Front-panel controls and switches
• Power and tuning meters
• Illumination
• General operational stability

The receiver also completed an extended real-world listening test before being approved for sale.

Multi-Voltage Version

The Sansui G-801 is a multi-voltage version from the same receiver platform as the Sansui G-8000.

Its selectable mains-voltage system includes 120V operation for U.S. use.

The voltage selector setting should always be verified before connecting the receiver to AC power. Please contact us if you would like confirmation of the voltage configuration before shipment.

Sound & Performance

With 120 watts per channel, the G-801 provides substantial amplifier headroom for a wide variety of vintage and modern passive speakers.

Its direct-coupled amplifier design delivers strong, controlled power, while the three-band tone controls, selectable turnover frequencies, Loudness circuit, Subsonic Filter, and High Filter provide extensive flexibility for matching different speakers and listening rooms.

Cosmetic Condition

This Sansui G-801 is in very good to excellent restored vintage cosmetic condition.

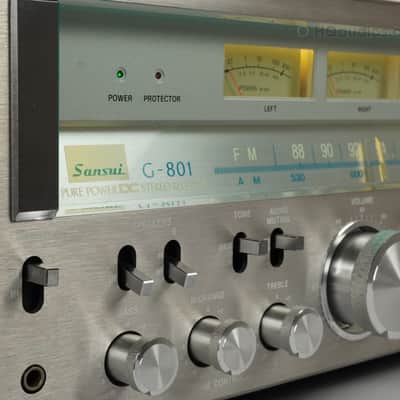

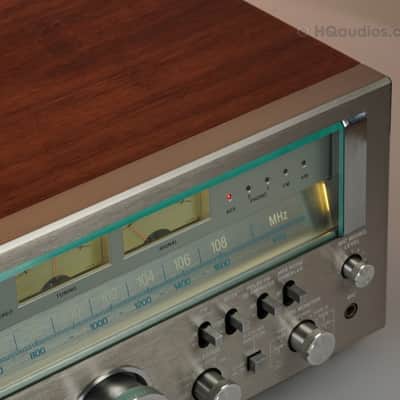

The silver front panel presents very well, with the original controls, knobs, switches, meters, lettering, and illuminated display retained.

The wood cabinet shows light age-related wear and minor marks consistent with vintage use.

Please review all listing photos carefully, as they are part of the description and show the exact unit being offered.

Specifications

• Brand: Sansui
• Model: G-801
• Type: Pure Power DC Stereo Receiver
• Power Output: 120 watts per channel into 8 ohms
• Frequency Response: 5Hz – 50kHz
• Total Harmonic Distortion: 0.03%
• Damping Factor: 60
• Phono Sensitivity: 2.5mV
• Line Sensitivity: 150mV
• Speaker Load: 4Ω or 8Ω depending on configuration
• Tuner: FM / MW
• Voltage: Multi-Voltage / Selectable, including 120V operation
• Dimensions: 22.05 × 7.91 × 18.70 in
• Weight: Approx. 54.2 lbs

What Is Included

1 × Sansui G-801 Stereo Receiver, exactly as shown in the listing photographs.

Video Test & Sound Demo

A video demonstration of this Sansui G-801 is available.

Please contact us if you would like to see the receiver operating before purchase or would like additional close-up photos of any specific area.

Professional Packing

Large vintage receivers require careful preparation for safe transport.

This unit will be professionally packed by HQaudios using heavy-duty protective materials, with additional protection around the faceplate, knobs, chassis corners, and rear connections.

Tracking information will be provided after shipment.

Local pickup may also be available by appointment.

1-Year HQaudios Warranty

This receiver is backed by our 1-Year HQaudios Warranty, covering proper electronic and functional operation under normal home use.

If you experience an issue, please contact us first. Our team will work with you to diagnose the problem and determine an appropriate solution.

Warranty coverage does not include misuse, improper setup, incorrect voltage selection, unauthorized repair, physical or cosmetic damage, incorrect speaker wiring, incompatible equipment, amplifier clipping, or operation outside the manufacturer’s intended specifications.

Trade-In & Vintage Audio Services

HQaudios welcomes trade-ins on vintage receivers, amplifiers, speakers, reel-to-reel decks, cassette decks, turntables, and other classic audio equipment.

We also provide professional vintage-audio repair, restoration, cosmetic refinishing, and custom restoration services.

Contact us if you are building a complete vintage audio system or would like to discuss a trade-in.

HQaudios – Vintage Audio Restored with Care.

Professionally Restored • Fully Tested • Carefully Packed • 1-Year Warranty
