Mattson Matton Minin Modular 2009 - Walnut

Mattson Matton Minin Modular 2009 - Walnut

Portable Mini Modular System. Very Rare. No longer made.

This one is in mint condition. The only thing is that it's missing the 5pin to 6pin DIN connector to power second cabinet. The cable can me made by any tech or anyone that can solder.

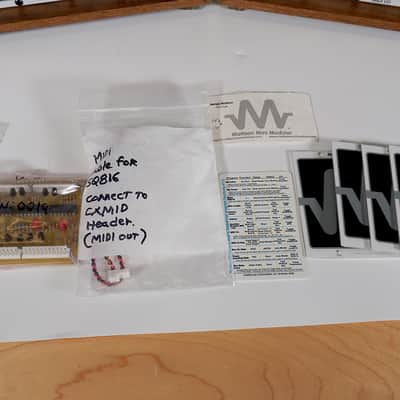

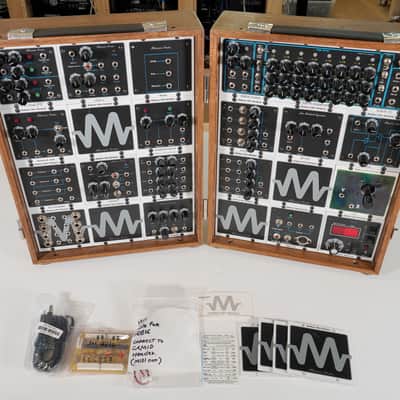

It comes with power supply and extra face plates, cables and quick start guide.

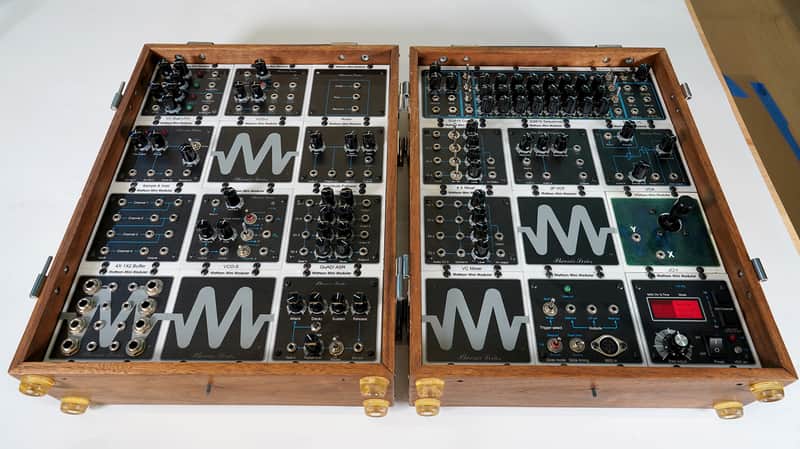

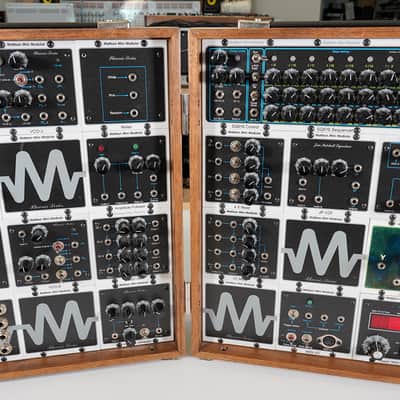

For sale is a rare, custom hand built modular synthesizer, from master synth builder George Mattson. The MMM's (as it's often referred to) is based on the circuitry of the EML 100, it's filters ( there are two of them) are based on the E-mu modular SSM filters...which were also used in the Sequential Circuits Prophet Rev 2. They sound rich and gorgeous. The overall tone of this synth, working as a sum of its parts, is very vintage sounding, with very powerful oscillators, 99% based on the EML circuit designs (this unit has two sets of oscillators). Also it interacts and plays nicely with eurorack.

The Mattson Mini Modular (MMM) is a portable, true-analog modular synthesizer system designed by George Mattson featuring a distinct ultra-compact proprietary format. [1, 2]Physical Specifications

• Module Height: Two standard rack units, or 3.5 inches (90 mm).
• Module Width: Most modules are two units wide (smaller footprint than Eurorack).
• Standard Cabinet Space: Holds 12 modules per cabinet frame.
• Closed Dimensions (Paired Cabinets Latched Face-to-Face): 11-3/8” (28.89 cm) W x 15” (38.1 cm) H x 7” (17.78 cm) D.
• Open Dimensions (Single Cabinet): 23” (58.42 cm) W x 15” (38.1 cm) H x 3.5” (8.89 cm) D (when unfolded flat or side-by-side).
• Patch Connections: Uses 3.5 mm jacks alongside on-board pin headers and female DuPont-terminated patch wires. [1, 2, 3]

Power & Electrical Specifications

• Standard Operating Power: Typically standard ±15V (with support/adaptability for standard analog power schemas depending on implementation).
• Design: Utilizes true-analog circuitry housed in a portable "grab and go" latching wooden or protective enclosure format
