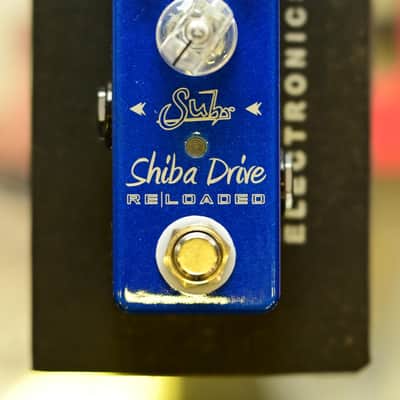

Suhr Shiba Drive Reloaded Mini

YOUR PEDAL BOARD JUST GOT BIGGER
Today pedal board real estate comes at a premium especially when traveling. And lets face it, sometimes having to choose which pedals to leave off your board can really limit your versatility. Well not anymore, The Shiba Drive Re|Loaded MINI has inherited all of the DNA of it’s larger sibling, only now it’s harnessed in a smaller more compact pedal board friendly design.

SMALL BUT MIGHTY
Small but mighty and heavily equipped with Drive, Tone and Level Controls, a 2-Position Smooth (Hi-Cut) switch, True Bypass, an On/Off Effect Status Indicator can be powered via any 9Vdc center negative power supply and housed in a road-worthy powder coated die-cast enclosure for years of reliable performance.

SMALL SIZE, BIG FEATURES
Shiba Drive Re|Loaded Overdrive Tone DNA
Compact, Pedal Board Friendly Design
2-Position Smooth Switch (Hi-Cut)
Drive, Tone & Level Controls
True Bypass
On/Off LED Status Indicator
Powder Coated, Die-Cast Enclosure


Specs:

Input Impedance: 1MΩ
Output Impedance: 1kΩ
Power Connector: Center Negative, 2.1mm x 5.5mm
Operating voltage: 4V to 18V (nominal 9V)
Maximum Voltage: 20 Vdc
Reverse Battery Protection: Yes
Over Voltage Protection: Yes
Current Consumption: 8mA
Dimensions: 1.82”(W) x 3.85”(D) x 1.89”(H)
Weight: 0.365lb
ROHS Compliant: Yes
