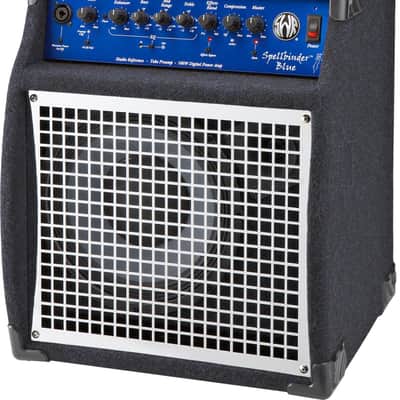

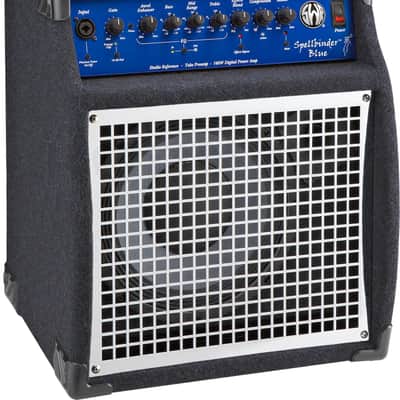

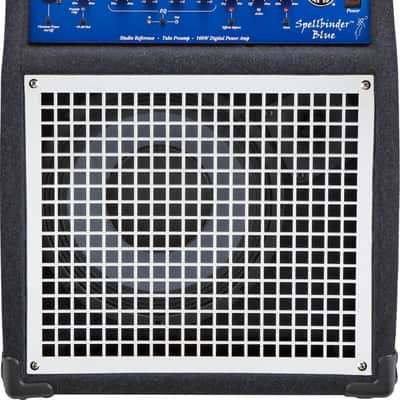

SWR Spellbinder Blue Combo

Exceptional tone in a small package.

The SWR Spellbinder Blue is a bass combo amplifier that features the iconic Baby Blue tube preamp”long treasured by sound engineers and bassists of all styles for its exceptionally clean, natural tone. The Spellbinder Blue is housed in a stylish, lightweight Italian poplar cabinet. A 160W Class D amplifier with switch-mode power supply powers the Spellbinder Blue bass combo, driving a 10" SWR-designed neodymium speaker and Eminence super-tweeter. The result? A 27 lb. portable dynamo with hi-fi tone. Well-suited for studio work and small-to-medium-sized gigs.

FEATURES
160W (Class D power amp with switch mode power supply)
SWR tube preamp with 3-band active EQ
1x10" SWR-designed neodymium driver
Eminence super-tweeter with rear Level control
EQ In/Out switch w/ LED indicators
+15V Phantom Power w/ On/Off switch

SPECIFICATIONS
Power Output: 160 Watts
Impedance (Ohms): 4 Ohms
Speakers: (1) 10" SWR-Designed 4 Ohm Eminence Neodymium Driver, P/N 0076017000, (1) Custom Eminence Supertweeter, P/N 0067254000
Channels: 1

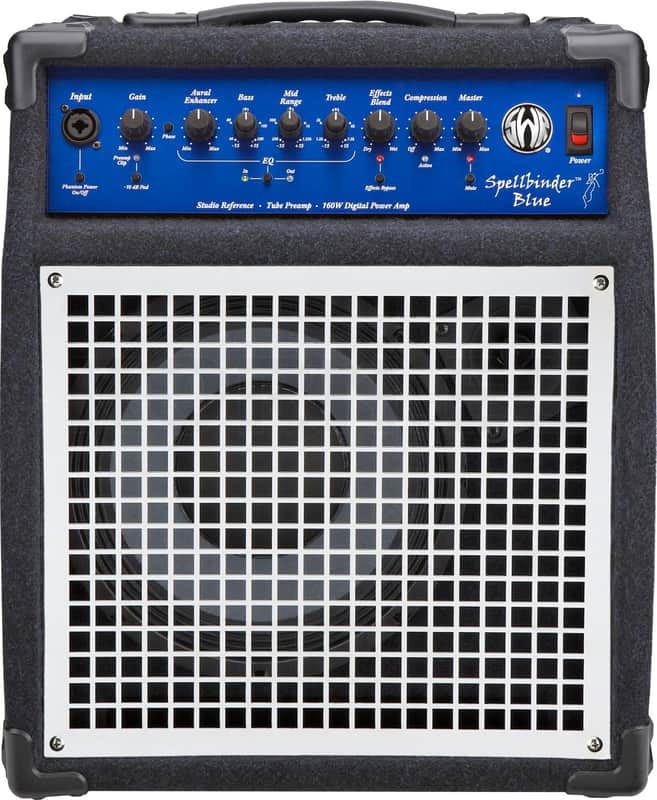

Front Panel Controls:
Neutrik Combo Input Jack (XLR or 1/4")
+15V Phantom Power On/Off Switch
Gain
-10dB Input Pad Switch
Phase Switch
Aural Enhancer
Bass
Mid
Treble
EQ In/Out Switch with LED Indicators
Effects Blend
Effects Bypass Switch
Compression with LED Indicator
Master
Mute Switch with LED Indicator

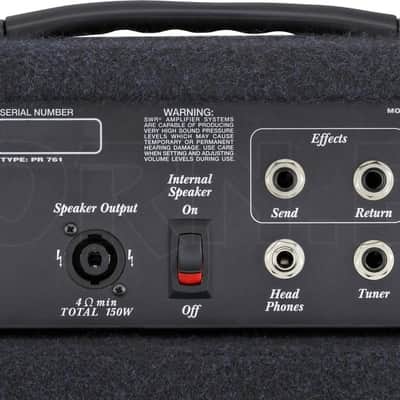

Rear Panel Controls:
Speakon Speaker Input Jack (XLR or 1/4")
Internal Speaker On/Off Switch
Effects Loop (Send/Return)
Headphone Out Jack
Tuner Out Jack
Balanced Outputs (XLR and 1/4")
Line Out Pad
XLR Ground Lift Switch
Line/Direct Switch
Cabinet:
Horn Level Attenuator
Covering: Anodized Blue Face Plate with Dark Blue Carpeting, Heavy Duty Corners and Chrome Stamped Steel Vibration-Free Grille
Weight: 27 lb.
Dimensions: 15-3/8" W x 19-1/2" H x 14-1/2" D
Tube Complement: 1 12AX7 (Preamp)
