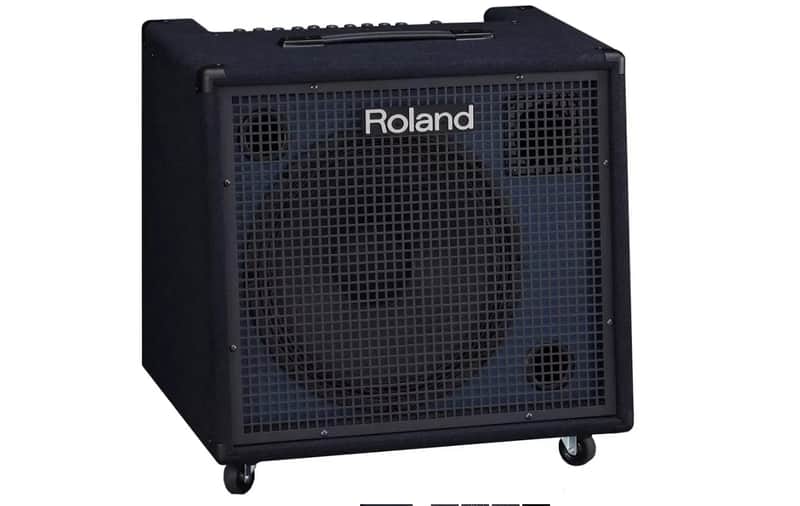

Packed with many new design features, the KC-600 updates the previous-generation KC-550, Roland's top-selling keyboard amp. The power has been increased to 200 watts, and the two-way speaker system features a newly designed 15-inch custom woofer for improved sound quality. In addition, the power section has been completely redesigned for better stability, enhanced bass reproduction, and reduced weight. With the KC-600's built-in mixer, you're able to connect a variety of stereo keyboards and instruments, plus an XLR vocal mic. And via the Stereo Link function, you can easily chain a second KC-600 for more inputs and true stereo amplification on stage.

Features

• Compact and versatile keyboard amplifier with 200 watts of power

• Redesigned power amp and universal power supply provide increased stability, improved bass reproduction, and reduced weight

• Custom two-way speaker system with newly developed 15-inch woofer and horn tweeter

• Onboard mixer with four stereo input channels, stereo auxiliary input, and master EQ with Shape switch

• Output Select function on Channel 4 for monitoring click and guide tracks

• XLR mic input, XLR and -inch line outputs, headphones output, and sub output

• Chain another KC-600 with the Stereo Link function for more inputs and true stereo sound on stage

• Metal jacks for increased durability

• Removable casters included

Specifications

Rated Power Output: 200 W

Nominal Input Level (1 kHz):
CH1 (BALANCED, L/MONO, R): -50-- -20 dBu
CH2 (L/MONO, R): -20 dBu
CH3 (L/MONO, R): -20 dBu
CH4/MONITOR IN (L/MONO, R): -20 dBu
AUX IN (L, R, STEREO): -10 dBu
STEREO LINK (IN): 0 dBu

Nominal Output Level (1 kHz):
LINE OUT (L/MONO, R): +4 dBu
LINE OUT (BALANCED L, R): +4 dBu
STEREO LINK (OUT): 0 dBu
SUB OUT: +4 dBu

Speakers: 38 cm (15 inches) Woofer x 1, Horn Tweeter x 1

Controls: SHAPE button; POWER switch; GND LIFT switch; [CH1] MIC/LINE knob; [CH2] LINE knob; [CH3] LINE knob; [CH4] LINE knob, OUTPUT SEL knob; [AUX IN] LEVEL knob; [PHONES] VOLUME knob; [EQUALIZER] LOW knob, MIDDLE knob, HIGH knob; MASTER knob

Indicator: Power

Connectors:
• CH1 (BALANCED) jack: XLR type
• CH1 (L/MONO, R) jacks: 1/4-inch phone type
• CH2 (L/MONO, R) jacks: 1/4-inch phone type
• CH3 (L/MONO, R) jacks: 1/4-inch phone type
• CH4/MONITOR IN (L/MONO, R) jacks: 1/4-inch phone type
• LINE OUT (L/MONO, R) jacks: 1/4-inch phone type
• LINE OUT (BALANCED L, R) jacks: XLR type
• AUX IN (L, R) jacks: RCA phono type
• AUX IN (STEREO) jacks: Stereo miniature phone type
• SUB OUT jack: 1/4-inch phone type
• STEREO LINK (IN, OUT) jacks: 1/4-inch phone type
• PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output)

Power Consumption: 50 W

Accessory: Owner's Manual, Caster x 4

Size and Weight:
Dimensions including casters (W x D x H): 590 x 445 x 590 mm (23-1/4" x 17-9/16" x 23-1/4")
Weight: 29 kg (63 lbs 15 oz)
