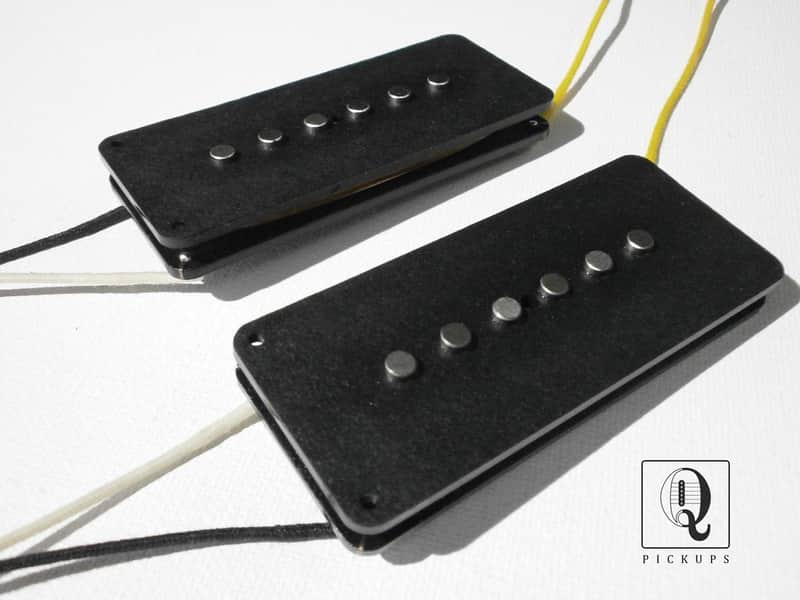

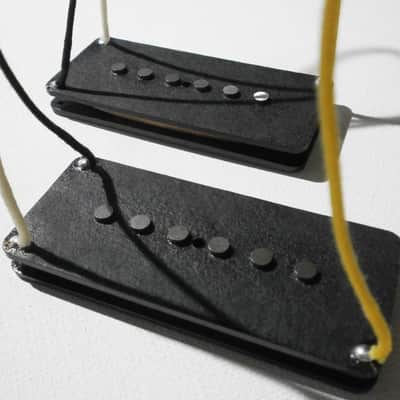

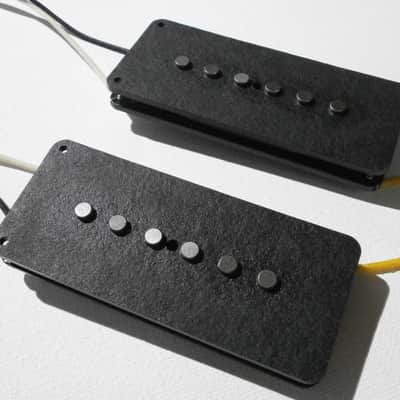

Jazzmaster Pickups SET Coil Tapped A5 Hand Wound Guitar Fits Fender HOT Vintage by Q pickups

Jazzmaster pickups set - matched bridge and neck.

Each pickup has 2 different outputs.

BRIDGE - NORMAL 8kOhm / HOT 14.5kOhm

NECK - NORMAL 7,5kOhm / HOT 13,5kOhm

Basically it is like having 2 different sets of pickups that can be combined together.
Use a push pull pot or DPDT switch - or simply connect the output you like the best - and play on.

BLACK - GROUND

WHITE - NORMAL

YELLOW - HOT

- hand wound with Elektrisola AWG43 enameled copper wire

- vintage specs BLACK flatwork - correct vintage Jazzmaster coil dimensions

- Alnico 5 hand beveled magnets

- wax potted in paraffin and bee`s wax

- BRIDGE magnetic polarity is SOUTH UP

- NECK is NORTH UP - R.W.R.P - hum cancelling when both pickups are active

These will fit genuine Fender and other replacement pickup covers.

Pole spacing is 51.0mm (2.007 in.) on center. If you have any questions or need something a little different please let me know and we will work it out.
