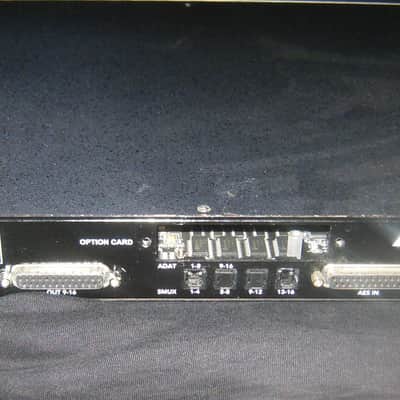

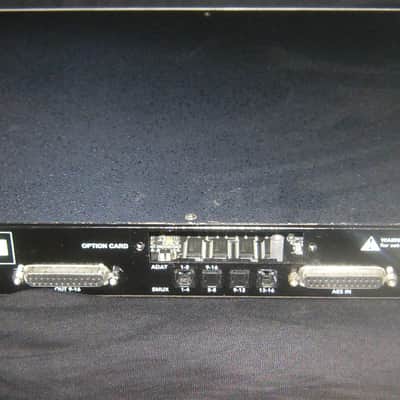

Apogee DA-16x

16-channel, 192kHz D/A Converter

Unit In very good working condition

-except for one of the 16x D-A output channels

(channel 11), having developed some intermittent noise.

The remaining 15x channels of D-A all crystal clear

and working as expected,

as well as the 16x AES digital inputs.

See other listings incl. Apogee Symphony I/O Mk1

2x6 Converter , as well as Apogee X-Symphony

option card, that allows the DA-16x to be integrated

into an Apogee Symphony system - using

a Thunderbridge, or the earlier Apogee Symphony

PCI/mobile cards.

Can pre-intall X-Symphony card in DA-16x,

if required as combined purchase.

Also

Features

• 16 channels of premium 24-bit D/A conversion
• Sample rates up to 192k
• 16 channels of AES, ADAT/SMUX Output
• Word Clock I/O
• Optional HD card for direct connection to ProTools HD (X-HD card)
• Optional S800 FireWire card capable of sample rates up to 192k, compatible with OS X/Windows XP and all popular DAW's (X-FireWire card)
• All option cards (X-FireWire and X-HD) facilitate connection of multiple units
• Direct Digital Synthesis (DDS) using Big Ben's C777 Clock Technology up to 192kHz
• Adaptive Loop Filtering (ALF) for optimum clock performance and minimum jitter
• Support for AES double wire and SMUX formats
• Intuitive front panel calibration
• Word Clock termination switch

Specs

• INPUTS

  AES-EBU in x 8, transformer balanced, DSUB 25pin connector (192k single wide compatible)

  Optical: toslink x 4, supporting ADAT and SMUX protocol

  WC in: BNC 75 ohm with switchable termination
• OUTPUTS

  WC out: BNC 75 ohm

  Analog out 1-8 Balanced, DSUB 25pin connector.

  Analog out 9-16 Balanced, DSUB 25pin connector.
• OPTION SLOT

  One x-type card can be installed, for Firewire, HD and or other future format connectivity.
• SPECS

  Sample rates internal: 44.1/48/88.2/96/176.4/192k

  Sample rates external: 44.1/48/88.2/96/176.4/192k +/- 10%

  Frequency response at 44.1 k : 5 - 20.000 Hz (+/- 0.2 dB)

  Analog levels: 6 to 24dBu max through digital gain adjustment. (Compatible with -10dBV levels)

  THD+N: -107 dB

  Dynamic range: 118 dB A weighted

  Power: 100 -240 VAC, 50 - 60 Hz, 65 Watt
