1961 Voice Of Music V-M 722 Stereophonic Tape Recorder
This gear has sold
See similar gear from other Reverb sellers
Our users rate Reverb

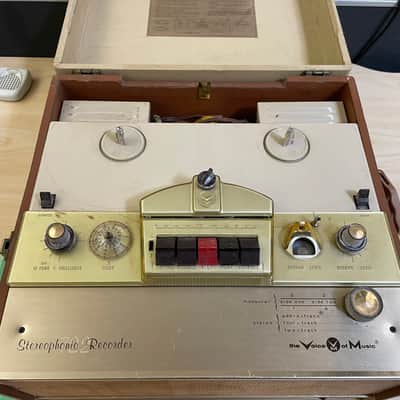

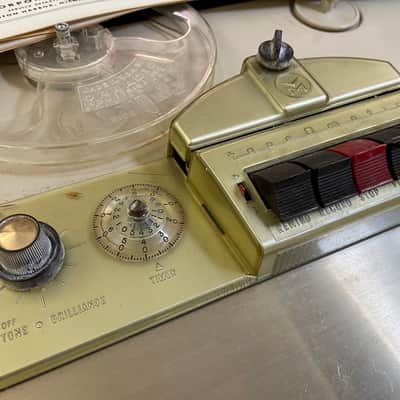

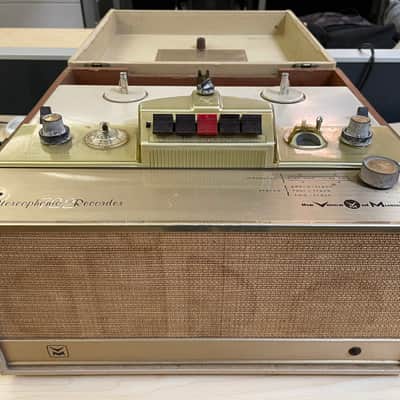

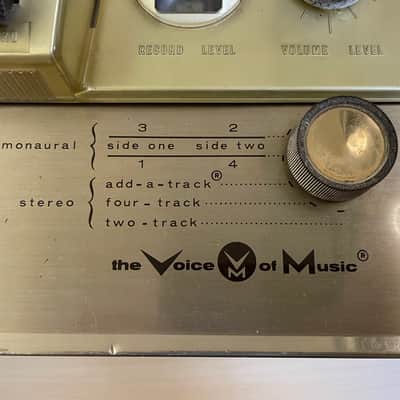

Check out this 1961 Voice Of Music V-M 722 Stereo Tape Recorder. The unit is a 4-track reel-to-reel stereophonic recorder and playback device with two speeds and a 7″ reel capacity. Controls include five safety-interlocked buttons for Stop, Record, Play, fast-forward and Fast-rewind. tone & brilliance controls, dual volume control, track selector switch, instant pause control, monitor switch and a three-digit counter.
Other features include Automatic shut-off,
hum balance adjustment and a dual Cathoptic tuning eye for stereo recording
with sensitivity adjustment. Audio output is rated at 14 watts peak and the
unit had an internal 6″ x 9″ Alnico V magnet woofer and a 3½” tweeter with a
1.5 oz. Alnico V magnet. Year: 1961
Track system: Quarter-track stereo
Heads: Two
Motors: One
Maximum reel size: 7″
Tape speeds: 7½ & 3¾ ips
Frequency response (all 3 dB): 7½ ips: 40Hz – 15kHz; 3¾ ips: 40Hz – 12kHz
Wow & flutter: 0.4% RMS at 7½ ips
Signal to noise ratio: -50dB
Bias frequency: 75kHz
Valve complement: 4 x 12AX7/7025, 7591, 5Y3, 2 x 12AU7, 6AF6 (magic
eye)
Audio output power: 14 watts peak

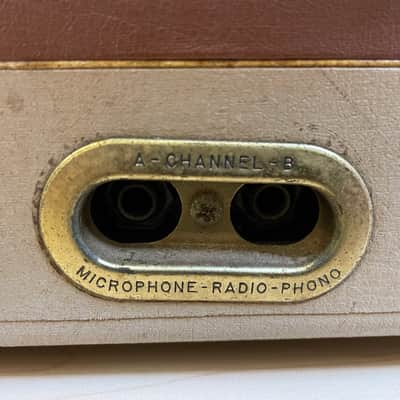

Inputs: Microphone and phono

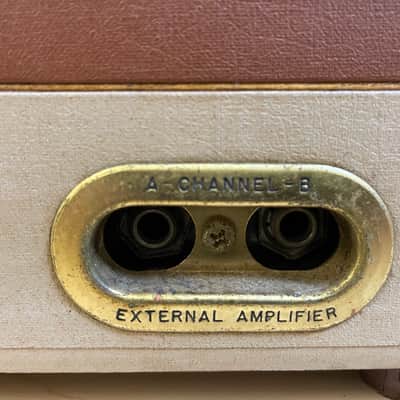

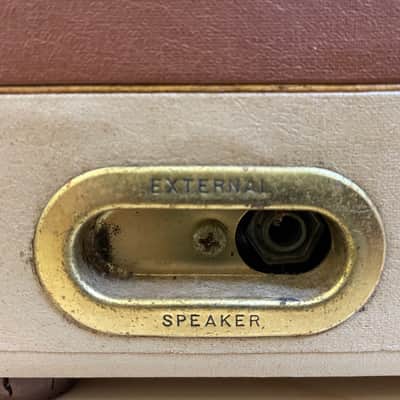

Outputs: External amp for stereo playback, extension
speaker (8-16 ohms)
Speaker(s): 5″ x 7″ with 2½ oz Alnico V magnet
Dimensions: 9¾ x 16½ x 14¾ ” (248 x 420 x 375 mm)
Weight: 34 lbs ( 15.5 kg)

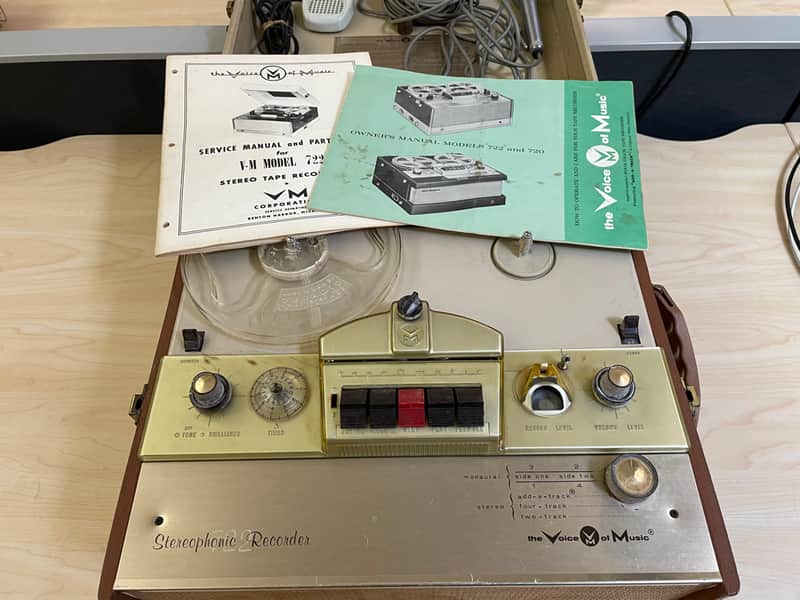

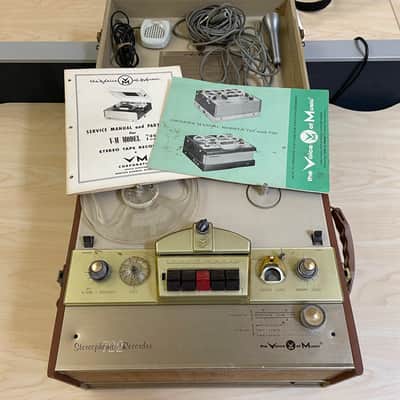

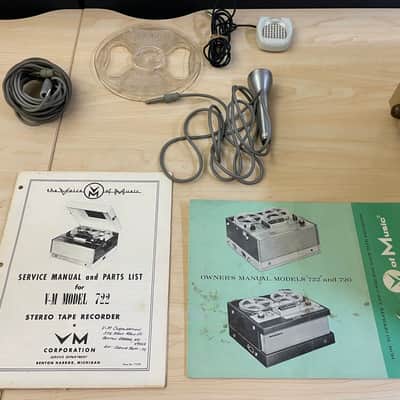

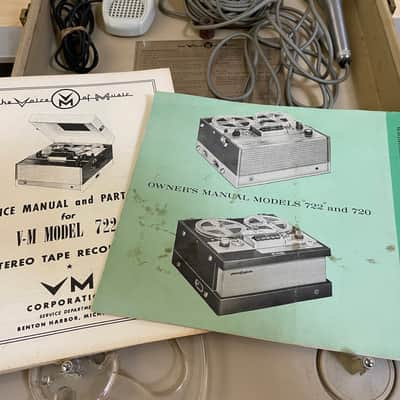

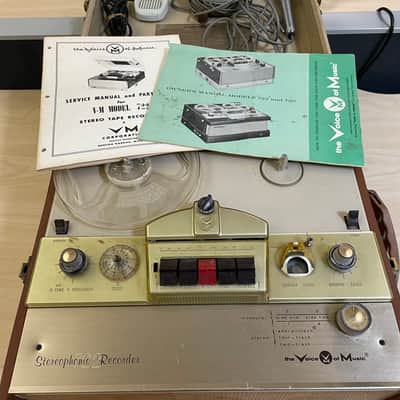

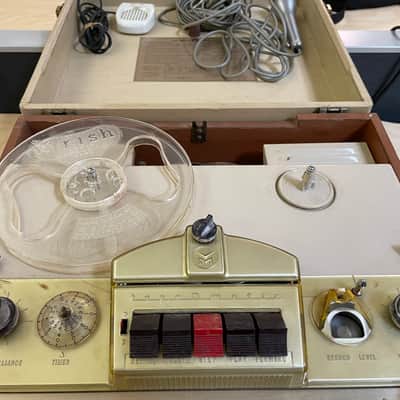

Comes with microphones, and other accessories pictured in the listing as well as the original owner's manual and service manual.
| Listed | 4 years ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Categories | |
| Year |
|
| Made In |
|
