About this listing

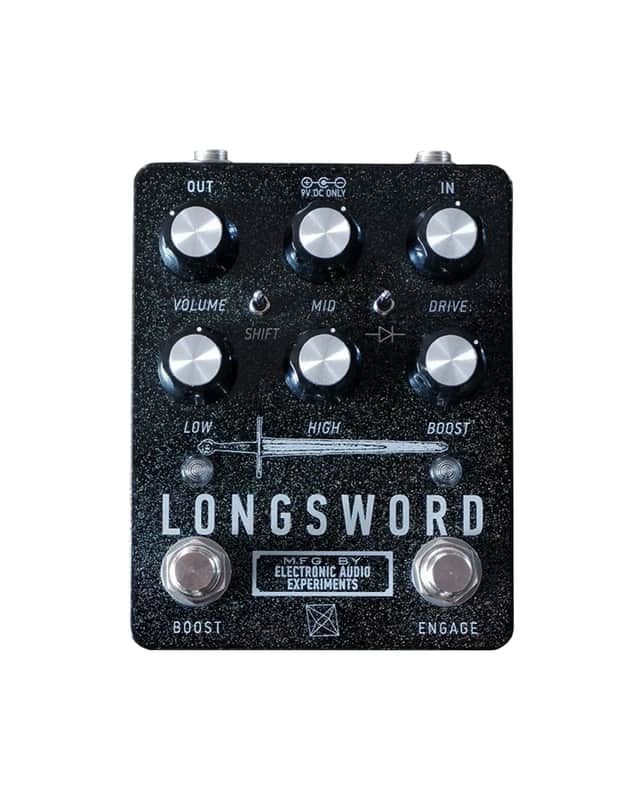

The Longsword is a versatile op-amp based drive that moves effortlessly from clean boost to massive distortion while keeping your tone flexible and full of character. Its cascaded gain stages deliver a huge range of textures, from light grit to thick, sparkly saturation, making it equally at home with guitar, baritone, or bass.
An advanced EQ section combines bass and treble shelving filters with an active, frequency-selectable midrange boost or cut. This lets you carve out space in dense mixes or push your instrument forward with authority. The Longsword’s broad frequency response and interactive controls make it a powerful tool for shaping your sound, whether you are chasing mid-2000s post-hardcore punch or modern clarity.
⚙️ Features and Specifications
Type: Overdrive and distortion pedal
Circuit: Op-amp based with cascaded gain stages
Controls:
Level – Output volume
Drive – From light grit to heavy overdrive
Low / High – James/Baxandall tone stack (shelving filters)
Mid – Active midrange boost or cut
Shift – Selects frequency controlled by the Mid knob
Diode – Three clipping options:
Up: MOSFET clipping, medium compression
Center: No diodes, minimal compression
Down: Silicon diode clipping, maximum compression
Boost Footswitch – Engages a front-end mid boost
Boost Knob – Adds up to 20 dB of gain when Boost is engaged
Bypass: Relay switching with true bypass
Input Impedance: 500 kΩ at 1 kHz
Output Impedance: 1 kΩ at 1 kHz
Power: 9V DC center-negative, 75 mA current draw, regulated and isolated supply recommended (no battery operation)
Finish: Black sparkle
PriceA$362.96
+ A$218.65 Shipping
Only 1 left
Grab it before it's gone
