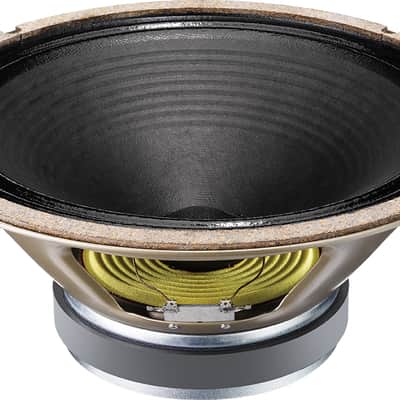

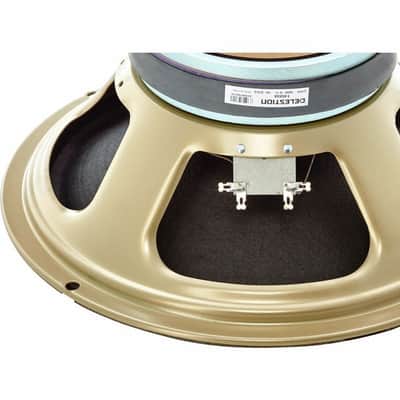

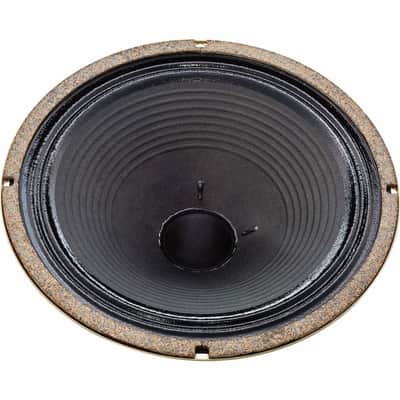

12-inch classic rock guitar speaker

DESCRIPTION

Originally re-released to celebrate Celestion's 70th Anniversary, the G12H guitar speaker remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.

With a strong aggressive low-end and powerful low-mids the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones easily cutting through loud stage levels for chord work and imparting a hard edge to single notes. A favourite in the ’boutique’ amplifier market the G12H guitar speaker is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.

FEATURES

• 12in Diameter
• 16Ω Rated impedance
• 100dB Sensitivity

SPECIFICATIONS

Nominal diameter: 305mm / 12in

Power rating: 30W

Rated impedance: 15Ω

Sensitivity: 100dB

Chassis type: Pressed steel

Magnet type: Ceramic

Magnet weight: 1.42kg / 50oz

Voice coil diameter: 1.75in / 44mm

Voice coil material: Round copper

Frequency range: 75-5000Hz

Resonance frequency, Fs: 85Hz

DC resistance, Re: 13.1Ω

Mounting Information

Cut-out diameter: 283mm / 11.1in

Diameter: 309mm / 12.2in

Magnet structure diameter: 156mm / 6.1in

Mounting hole dimensions: 7.9mm / 0.31in

ØMounting hole PCD: 297mm / 11.7in

Number of mounting holes: 4

Chassis depth (inc gasket): 97mm / 3.79in

Magnet depth: 38mm / 1.51in

Overall depth: 135mm / 5.3in

Unit weight: 4.7kg / 10.4lb
