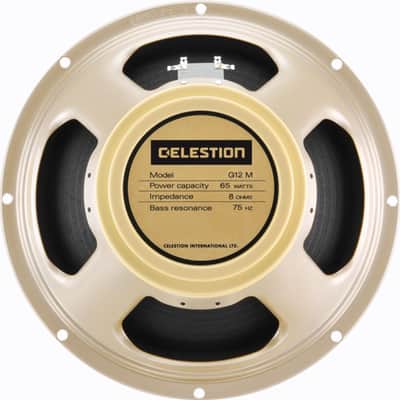

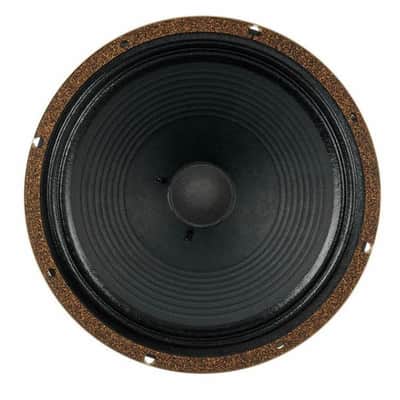

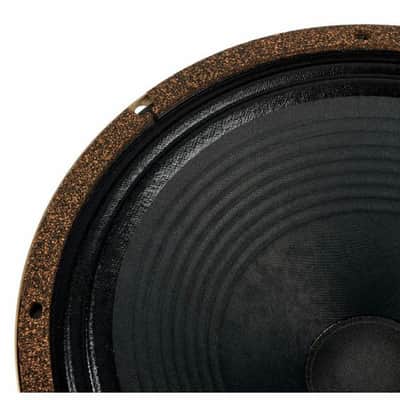

G12M-65 Creamback 12-inch vintage-toned guitar speaker

The G12M Greenback is perhaps the definitive vintage Celestion ceramic magnet guitar speaker. Developed in the mid-sixties it was quickly adopted by players like Hendrix, Clapton, Beck and Page who typified the louder and more aggressive blues rock playing styles that came to characterize that era.

The G12M-65 Creamback produces the familiar woody G12M tone but handles greater power, making it ideally suited for today’s amps when a vintage tone is desired. The increased power handling brings with it additional low end grunt complementing the warm and vocal mid range crunchy upper- mids and sweet refined highs.

Specifications

12in Diameter

16Ω Rated impedance

97dB Sensitivity

Nominal diameter 305mm / 12in

Power rating 65W

Rated impedance 16Ω

Sensitivity 97dB

Chassis type Pressed steel

Magnet type Ceramic

Magnet weight 0.99kg / 35oz

Voice coil diameter 1.75in / 44.5mm

Voice coil material Round copper

Frequency range 75-5000Hz

Resonance frequency, Fs 75Hz

DC resistance, Re 13.4Ω

Mounting Information

Cut-out diameter 283mm / 11.1in

Diameter 309mm / 12.2in

Magnet structure diameter 150mm / 5.9in

Mounting hole dimensions 7.9mm / 0.31in Ø

Mounting hole PCD 297mm / 11.7in

Number of mounting holes 8

Chassis depth (inc gasket) 91mm / 3.56in

Magnet depth 39mm / 1.54in

Overall depth 130mm / 5.1in

Unit weight 3.6kg / 7.9lb
