HH Audio TNA-2051-G3 Dual 5-Inch Passive Line Array Loudspeaker

HH Audio TNA-2051-G3 Dual 5-Inch Passive Line Array Loudspeaker

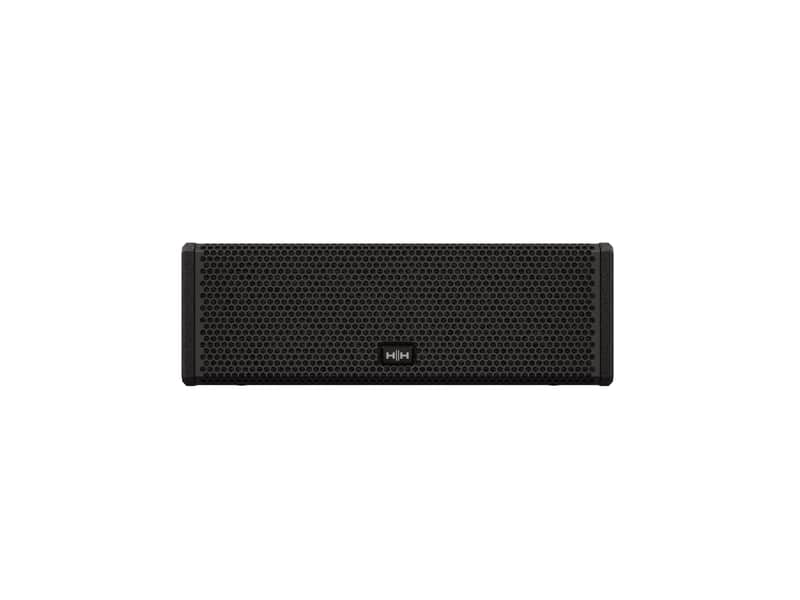

The HH Audio TNA-2051-G3 is a compact, high-output 2-way passive line array loudspeaker designed for live sound reinforcement, permanent installations, houses of worship, theaters, auditoriums, nightclubs, and small-to-medium touring systems.

Equipped with two HH-designed 5-inch low-frequency drivers and a 1.33-inch Celestion CDX1-10WG compression driver, the TNA-2051-G3 delivers clear vocals, detailed high frequencies, and controlled, consistent coverage. The Celestion compression driver is mounted to a Celestion-designed waveguide and horn flare, providing a wide 120° horizontal by 8° vertical dispersion pattern from each enclosure.

With a power rating of 200 watts AES and 800 watts peak, 94 dB sensitivity, and a maximum output of 123 dB SPL, this passive line array module provides impressive sound pressure from a compact cabinet. Its 16-ohm nominal impedance also makes it practical to combine multiple TNA-2051-G3 enclosures into larger array configurations when used with an appropriately matched amplifier.

Fast, Flexible Line Array Rigging

The TNA-2051-G3 features an integrated 3-point pin-based rigging system engineered to reduce setup and teardown time. Individual enclosures can be linked with selectable 0°, 4°, or 8° splay angles, allowing the array’s vertical coverage to be configured for the venue.

The system can be flown using the optional HH Audio TNA-BRK1-G3 mounting bracket or configured as part of a ground-stacked system. Six M8 mounting points and rugged integrated hardware make the enclosure suitable for both installed and portable professional sound applications.

Designed for the HH Audio Tessen G3 System

The TNA-2051-G3 integrates seamlessly with the TNA-1200S-G3 passive subwoofer or the TNA-2120SA-G3 active dual-12-inch subwoofer. The TNA-2120SA-G3 includes dedicated amplifier channels capable of powering compatible TNA-2051-G3 line array modules, creating a scalable and cohesive sound-reinforcement system.

A durable plywood cabinet, steel grille with acoustic-foam backing, and hard-wearing black painted finish provide the strength needed for professional use while maintaining a clean, modern appearance.

Key Features

• Compact 2-way passive line array loudspeaker
• Two HH-designed 5-inch low-frequency drivers
• 1.33-inch Celestion CDX1-10WG compression driver
• Celestion-designed waveguide and horn flare
• 200W AES and 800W peak power handling
• 123 dB maximum SPL at 1 meter
• Wide 120° horizontal by 8° vertical dispersion
• 16-ohm nominal impedance
• Integrated 3-point pin-based rigging system
• Selectable 0°, 4°, and 8° inter-cabinet splay angles
• NL4 twist-lock input and link connections
• Rugged plywood cabinet with steel grille
• Compatible with the optional TNA-BRK1-G3 flying bracket
• Designed for use with TNA-1200S-G3 and TNA-2120SA-G3 subwoofers

Specifications Model TNA-2051-G3 System Type 2-Way Passive Line Array Loudspeaker Low-Frequency Drivers 2 x 5-Inch HH-Designed Drivers High-Frequency Driver 1 x 1.33-Inch Celestion Compression Driver Power Handling 200W AES / 800W Peak Frequency Response 65 Hz–20 kHz (-10 dB); 100 Hz–18 kHz (-3 dB) Sensitivity 94 dB SPL (1W/1m) Maximum SPL 123 dB SPL at 1 Meter Nominal Impedance 16 Ohms Nominal Dispersion 120° Horizontal x 8° Vertical, Single Enclosure Internal Crossover Frequency 2,000 Hz Recommended High-Pass Filter 100 Hz Input Connector NL4 ±1 Twist-Lock Connector Link Connector NL4 ±1 Twist-Lock Connector Rigging System Integrated 3-Point Pin-Based Rigging System Splay Angles 0°, 4°, or 8° Between Enclosures Mounting Points 6 x M8 Cabinet 18mm Plywood Grille 1.5mm Steel Hexagonal Mesh with Acoustic-Foam Lining Finish Hard-Wearing Painted Black Dimensions 6.4 x 19.5 x 11.3 Inches (H x W x D) Weight 19.8 lb Ideal Applications

• Live music venues and performance spaces
• Houses of worship
• Theaters and auditoriums
• Nightclubs and entertainment venues
• Corporate and educational facilities
• Permanent sound-system installations
• Portable and small-to-medium touring systems

Please note: This listing is for one HH Audio TNA-2051-G3 passive line array loudspeaker. A power amplifier, subwoofer, speaker cables, flying bracket, and additional array modules are sold separately unless specifically stated otherwise.
