Product Description

SUITCASE COMPACT BG-400Powerful Small Combo

Introducing the Suitcase Compact. This model is based on the superlative and uncompromised performance of the original PJB Suitcase. It is more powerful but physically smaller, in fact the same size as our Compact 4 enclosure. It has an incredible punch sound cutting through air as “a knife through butter” but with a solid and powerful low end response normally associated with a much larger combo.

It features a two-channel pre amp with our unique 3 band EQ. Simple to find “your sound”, this EQ sounds has amazing control and transparency that allows you to unmistakably hear the true characters of your own playing and instrument.

In the heart of this amp lies a formidable ultra high-energy power supply. It feeds an efficient class D power amplifier which utilizes almost 95% of this energy to drive the four internal PJB Piranha speakers.

The Suitcase Compact puts out a healthy 300 watts RMS onto its own speakers. Adding a Compact 4 cabinet it becomes 500 watts.

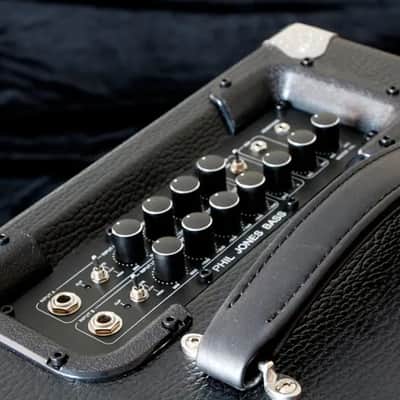

Control Panel

(1) Input Jack (2) Clip Indicator (3) Mute/ Passive/ Active Switch (4) Input Level (5) Bass-EQ (6) Mid-EQ (7) Treble-EQ (8) Master Vol. Control (9) AUX Level Control (10) Input AUX Jack (11) Line-Out Jack (12) Head-Phone Jack　 (13) Power On/Off Switch (14) Power LED

Specifications

• Model
  BG-400
• Power Output
  300W(RMS), 500W(RMS)/4Ω w/ext. speaker
• Speaker
  4ｘ5” PJB Piranha Type-B
• Control
  2 x [Level Selector, Volume, 3-Band EQ] Limiter w/On-Off Switch, Master Volume, Power Switch
• Jacks
  2 x Input(1/4”Phone), Headphone Out, D.I. Out(GND Lift SW), FX Send/Return, Tuner Out, Preamp Out, Ext. Speaker Out(8Ω/Speakon), AC-Input
• Dimension (WxDxH)
  14.2 x 12.4 x 13.4”
• Weight
  40lbs / 18Kg
• Power
  110/240V AC
