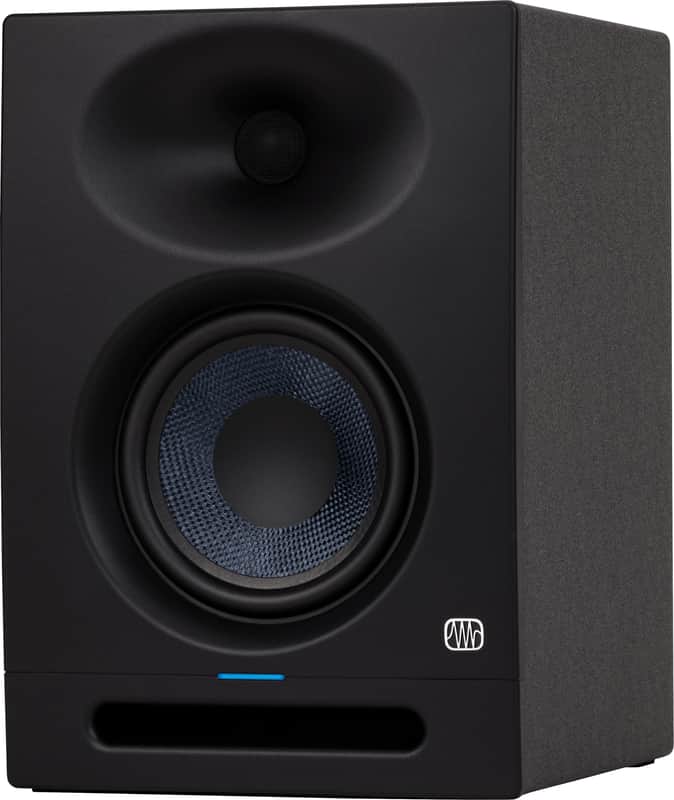

5.25-inch 2-Way Active Studio Monitors with EBM Waveguide

Eris Studio-series monitors are designed for superior performance with sonic clarity and accuracy, so you hear every detail in your mix. Building on decades of technological expertise, the third-generation Eris Studio 5 delivers rich low-end and controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, while the silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 80W of biamped power makes the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz—without a subwoofer!

Modern recording studios can be anywhere from a spare bedroom to a multi-million dollar facility; that's why Eris Studio 5 is equipped with controls that ensure the flattest response in your mix environment. Acoustic tuning controls let you configure your studio monitors perfectly for your room—you get Low-cut, Mid, and High controls, plus 3-way acoustic space tuning that helps you easily compensate for the sonic effects of speaker placement against a wall or in a corner.

Designed for superior performance in both home studios and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it in a class all its own.

Features

• 5.25-inch woven composite low-frequency driver
• 1-inch, ultra-low mass, silk-dome, high frequency driver
• Crossover Frequency 3.5 kHz
• 120˚ x 60˚ EBM waveguide provides a sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB dual amplification
• 48 Hz to 20 kHz frequency response
• 102 dB Peak SPL (@ 1 meter)
• Acoustic Tuning Controls:
• • Acoustic Space (Flat, -2 dB, -4 dB)
  • High Frequency (±6 dB, center 10 kHz, continuously variable)
  • Mid Frequency (±6 dB, center 1 kHz, continuously variable)
  • Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
• Inputs:

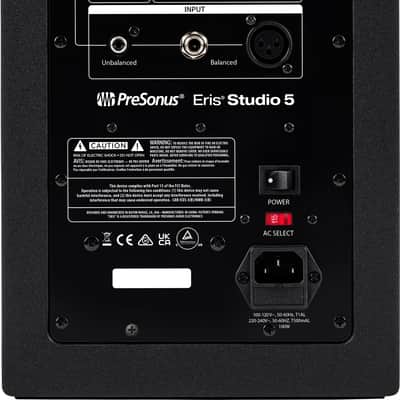

• • XLR and 1/4-inch TRS balanced rear-panel inputs
  • RCA unbalanced rear-panel inputs
• Protection:
• • RF interference
  • Output-current limiting
  • Over-temperature
  • Turn-on/off transient
  • Subsonic filter
• Power Saver mode (engages after 40 minutes)
