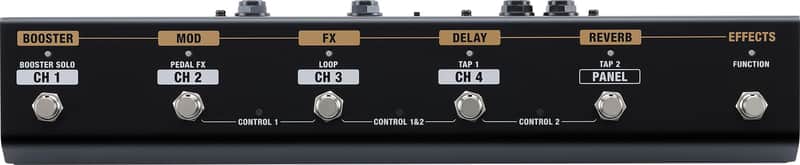

The Boss GA-FC EX Foot Controller expands foot control functionality for select BOSS amplifier models, maintaining the intuitive workflow of the standard GA-FC with enhanced features for more versatile performance control. Ideal for guitarists seeking more power and flexibility on stage, it includes dual-color status LEDs, two expression pedal jacks, and an additional control jack with a three-way mode selector.

Features:

• Rugged metal chassis with six heavy-duty footswitches
• Instantly switch between channels and effects
• Two expression pedal jacks for volume and drive control
• Additional control jack with three-way mode selector
• EXPAND mode for adding another GA-FC EX or GA-FC
• FOOT CONTROL 2 mode for two-amp setups
• EXP PEDAL 3 mode for a third expression pedal
• Functions as a standard GA-FC with other amplifier models
• Requires no power; connects via a single 1/4-inch TRS cable (included)

More Power and Flexibility

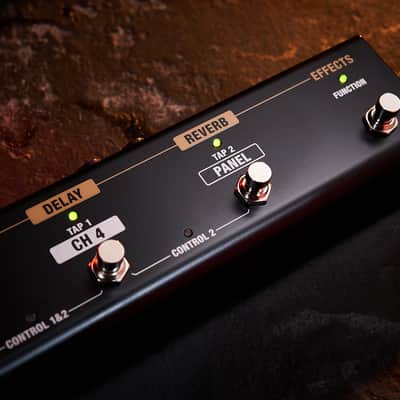

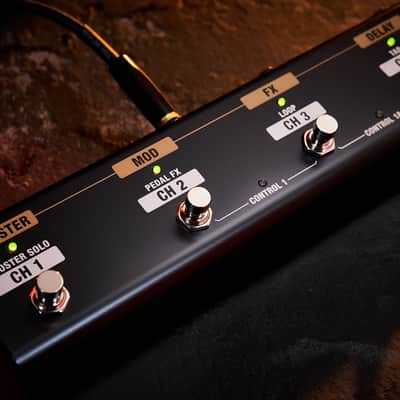

Enhanced with dual-color status LEDs for improved visibility
Includes two dedicated expression pedal jacks, plus an additional control jack with a three-way mode selector for expanded applications

Enhanced Performance Control for Katana MkII Amps
Offers advanced control options for supported Katana MkII models

Double Your Footswitches
In EXPAND mode, connect an additional GA-FC EX or standard GA-FC, giving you access to all memories and effects simultaneously

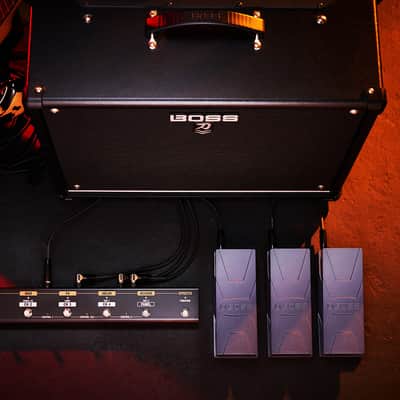

Operate Two Amps
In FOOT CONTROL 2 mode, use the GA-FC EX with two Katana MkII amps for control over memories and effects on both amps, either together or independently

Compatible Amplifiers:

Full GA-FC EX functionality supported by:
- Katana-Artist MkII
- Katana-Head MkII
- Katana-100 MkII
- Katana-100/212 MkII
- Compatible in standard GA-FC control mode with:
- BOSS Katana-100, Katana-100/212, Katana-Head, and Katana Artist
- BOSS Nextone Special, Artist, and Stage
- BOSS Waza Tube Amp Expander
- BOSS Katana-210 Bass and Katana-110 Bass
- Roland Blues Cube Artist, Artist 212, and Tour

Specifications:

Controls:
- Six Footswitches, [MODE] switch

Indicators:
- CH 1?CH 4
- PANEL
- FUNCTION
- CONTROL 1
- CONTROL 1&2
- CONTROL 2

Connectors:
- EXP PEDAL jack (1/4-inch TRS) x 2
- MODE jack (1/4-inch TRS)
- FOOT CONTROL 1 jack (1/4-inch TRS)

Dimensions:
- Width: 392 mm (15-7/16 inches)
- Depth: 81 mm (3-3/16 inches)
- Height: 49 mm (1-15/16 inches)
- Weight: 1.0 kg (2 lbs 4 oz)

Included Accessories:
- Owner's Manual
- Foot Controller Cable

Optional Accessories (sold separately):
- Expression Pedals: Roland EV-5, BOSS FV-500L, BOSS FV-500H
- Footswitch: FS-5U

Shipping Dimensions and Weight:
- Shipping Weight: 3 lbs
- Shipping Dimensions: 18 x 5 x 4 in
- Manufacturer Part Number (MPN): GA-FC EX
