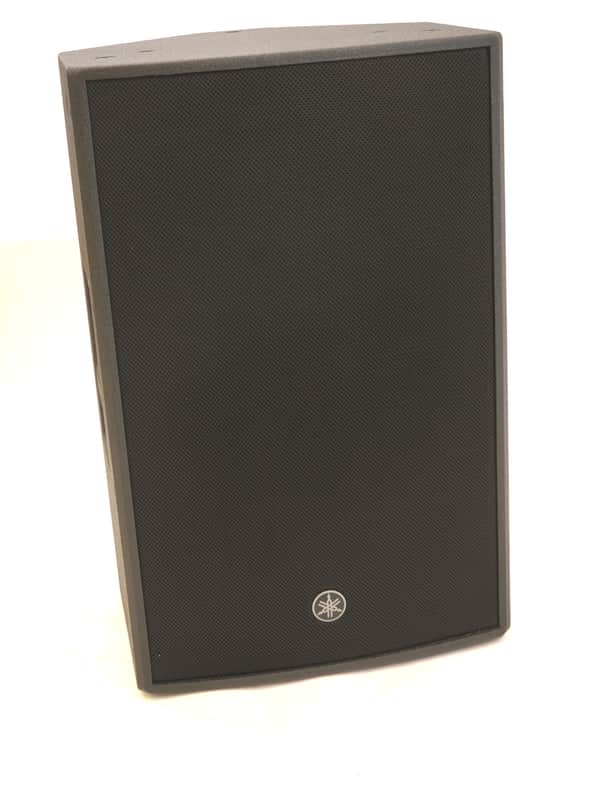

Yamaha DZR12-D 2000W 12-Inch 2-Way Powered Loudspeaker with Dante (Black)

The DZR12-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

High-Power 2-Way Bi-Amped Design

Features a 12-inch low-frequency driver with a 3-inch voice coil and a 2-inch high-frequency compression driver with titanium diaphragm. The 2000 W Class-D amplifier delivers up to 139 dB SPL with a wide 39 Hz–20 kHz frequency range, providing powerful, precise sound for professional audio applications.

Advanced DSP and FIR-X Tuning

Equipped with 96 kHz DSP and FIR filtering, including Advanced FIR-X tuning that combines FIR filtering with precise EQ to minimize phase distortion. Easily access DSP functions, load presets, and adjust PEQ, delay, and routing via the intuitive LCD display for fully customizable sound shaping.

Dante Digital Networking with SRC

Integrated Dante I/O (2 In / 2 Out) supports high-quality digital audio distribution and remote control. Includes SRC (Sample Rate Conversion) for 48 kHz device compatibility, making it easy to integrate into modern networked audio systems.

Versatile Configuration and Monitoring

Includes D-Contour protection circuits and a floor monitoring mode with mirrored configuration. The rotatable horn and multiple U-bracket options (UB-DZR) allow flexible placement and rigging in any venue or stage setup. Optional speaker cover (SPCVR-DZR12) protects your investment while traveling or storing.

Durable, Lightweight Cabinet

Constructed with high-quality plywood and finished with premium-grade Polyurea coating, this speaker is lightweight for portability but rugged enough for professional touring. Side-mounted aluminum die-cast handles and a dual Φ35 mm pole socket ensure easy transport and stable installation.
