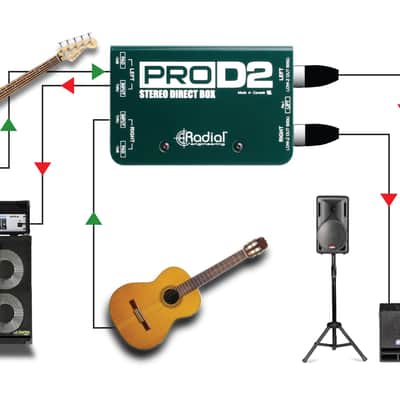

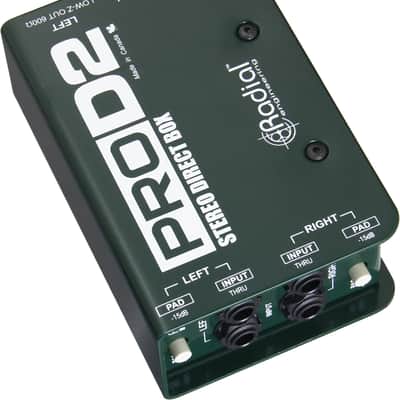

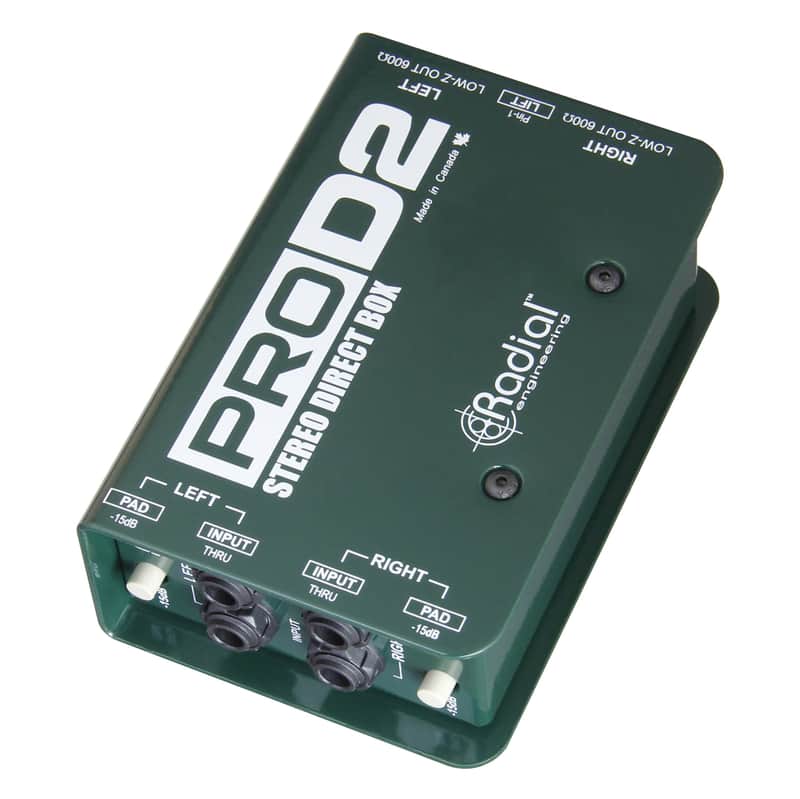

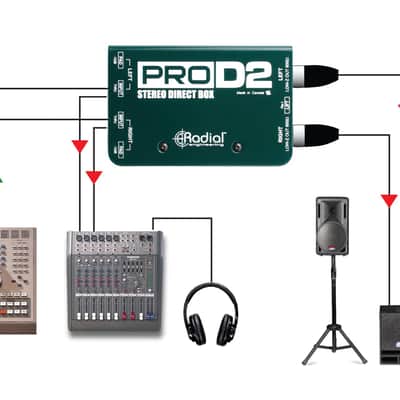

The ProD2 is a 2-channel passive direct box designed to connect stereo keyboards or high output instruments to a PA system or home recording setup without noise or distortion.
World Class DIAt the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.

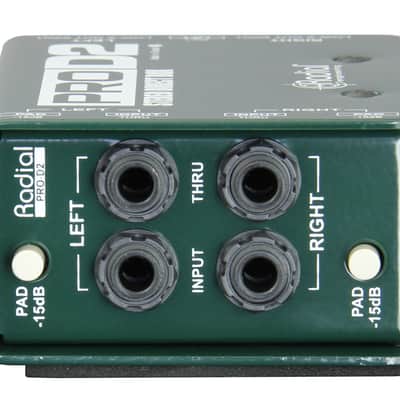

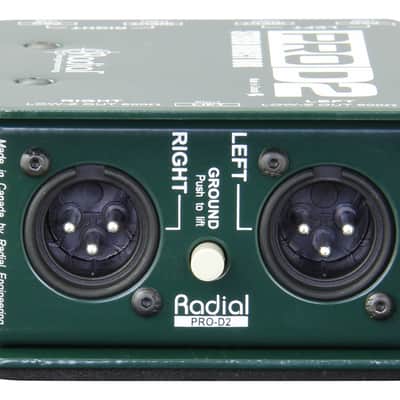

Specifications Audio circuit type: Passive, transformer based Transformer: Eclipse ET-DB2, 12:1 ratio Number of channels: 2 Frequency response: 20Hz ~ 18.5KHz (± 0.2dB) Dynamic range: 128dB Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB Phase Deviation: 1° @ 100Hz; 8° @ 20Hz Input Impedance: 140k Ohms, unbalanced Output Impedance: 150 Ohms, balanced Maximum Input: +18dB @ 20Hz Features Input pad, Ground lift Input Connectors: 1/4" Output Connectors: XLR, 1/4" thru General Construction: 14 gauge steel chassis & outer shell Size (L x W x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) Weight: .54kg (1.2lbs) Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm) Shipping weight: 0.61 kg (1.35 lbs) Power: Passive, no power required Conditions: For use in dry locations only between 5°C and 40°C Warranty:Reverb Buyer Protection
