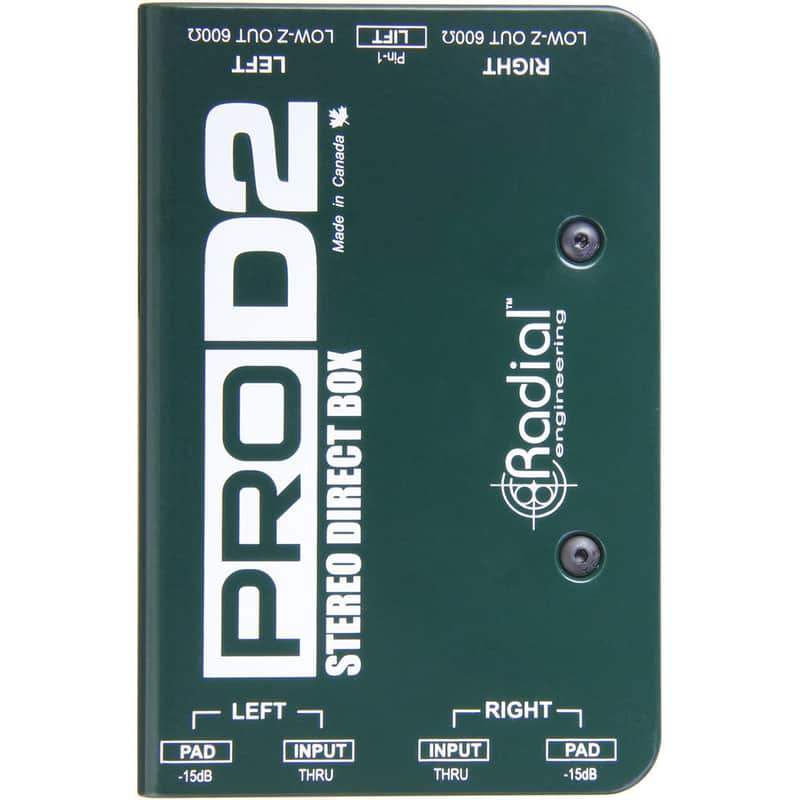

The Radial ProD2 Passive Direct Box is a high-quality ultra-compact passive direct box at a more affordable price point. Featuring a custom-made transformer for handling high levels without saturation, the ProD2 is ideal for electronic musical instruments and audio equipment.
The Radial ProD2 is a compact stereo direct box developed specifically to address the needs and challenges of interfacing a stereo keyboard to a professional audio system. This passive DI features two independent channels with separate inputs and thru-puts for the artist's stage amp and two fully isolated outputs for the PA system.
At the heart of the Radial ProD2 are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the Radial ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.
As with all Radial products, the Radial ProD2 is built tough to handle the rigors of professional touring. A 14-gauge steel ultra rigid i-beam skeleton frame eliminates opportunity from outside stress to flex the sensitive PC board and cause premature solder joint failure. The innovative book-end design creates a protective zone around the connectors and switches further increasing lifespan. And a full bottom no-slip pad adds mechanical isolation and electrical insulation to further reduce opportunity for noise.
The Radial ProD2's warm sound, legendary build quality and compact design have made it the most popular stereo direct box made today.
Radial ProD2 Passive Direct Box Features
Stereo direct box designed for keyboards
Smooth, warm sound rounds out digital edge
Able to handle huge transients without choking
May be rack mounted for touring rigs
Great sounding, rugged passive DI
High performance custom-wound transformer
-15dB PAD for wide range of input levels
Ground lift switch eliminates ground loop hum
Ultra-tough design, to last a lifetime
Plug & play - easy-to-use
Completely passive, no power needed
Radial ProD2 Passive Direct Box Applications
Stereo keyboards and drum machines
Interface consumer audio with pro gear
Eliminates buzz and hum caused by ground loops
Radial ProD2 Passive Direct Box Specifications
Technical Specs:
Audio Circuit Type: Passive, transformer based
Number of Channels: Single channel (mono)
Frequency Response: 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic Range: 128dB
Maximum Input: +18dB @ 20Hz
Total Harmonic Distortion: 0.01% from 20Hz~20kHz @-10dB
Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Features:
Transformer: Eclipse ET-DB2, 12:1 ratio
Shield: Faraday, MuMETAL® can
Input Pad: -15dB
180° Polarity Reverse: Inverts absolute phase
Ground Lift: Disconnects pin-1 at XLR output
XLR Configuration: AES standard (pin-2 hot)
Connectors: 1/4" in & thru, XLR-M out
General:
Construction: 14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size (W x H x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
Weight: .54kg (1.2lbs)
Shipping Size L x W x D: 6.5" x 4" x 3" (165mm x 102mm x 76mm)
Shipping Weight: 0.61 kg (1.35 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Radial ProD2 Passive Direct Box Includes
Radial ProD2 Passive Direct Box
User Guide
3 Year Warranty
