Description:

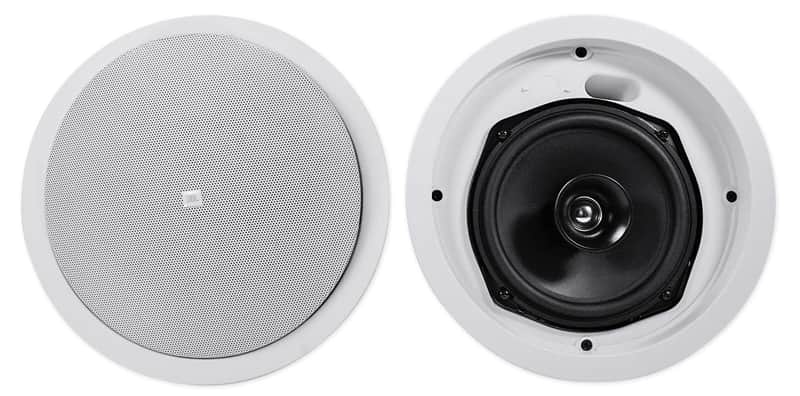

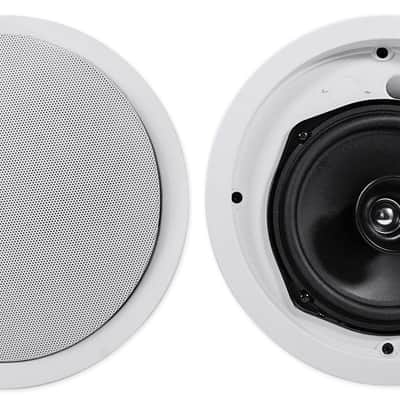

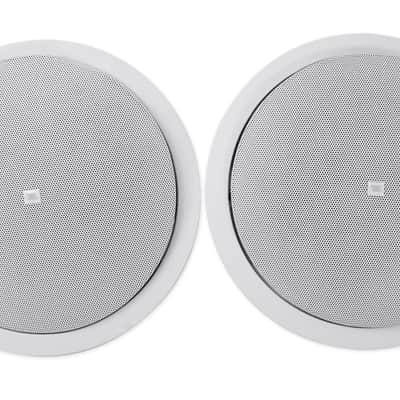

6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.

Features:

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
  • High power, wide frequency response and low distortion for high sound level capability.
  • JBL’s exclusive SonicGuardâ„¢ overload protection allows higher operational levels and improved system reliability.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications:

  • Frequency Range: 75 Hz - 20 kHz
  • Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
  • Nominal Sensitivity: 89 dB, 1m/1 W
  • Nominal Coverage Angle: 110°
  • Directivity Index (DI): 4.6 averaged 500 Hz to 4 KHz
  • Nominal Impedance: 16-ohms
  • Rated Maximum SPL: 107 dB SPL @ 1m (3.3 ft)
  • Low Frequency: 165 mm (6.5 in)
  • High Frequency: 19 mm (.75 in) titanium
  • Terminations: Screw locking barrier strip
  • Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9 in)
  • Net Weight (ea): 2.7 kg (6 lbs)
  • Shipping Weight (pair): 6.4 kg (15 lbs)

Promoted similar listings













Listed2 days ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • Control 26C U
