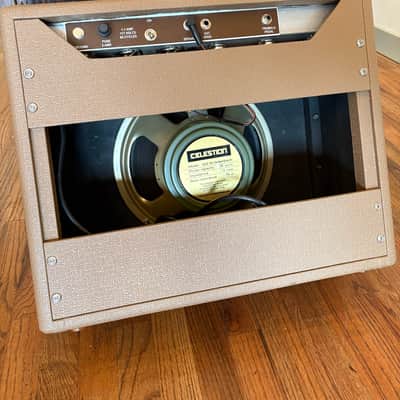

I bought this off of Reverb several months ago, only selling because I was able to score a vintage one, and I already have another 6G3 in a head/cabinet form. Hand wired, in a Mojotone 1x12 cab loaded with a Greenback. I also installed a beam blocker in there.

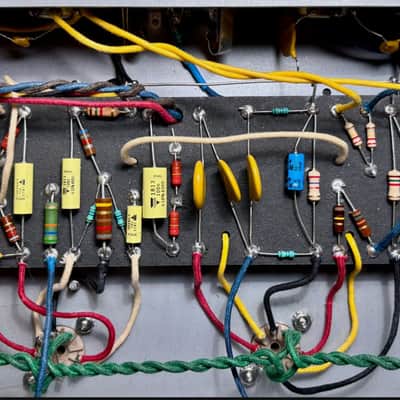

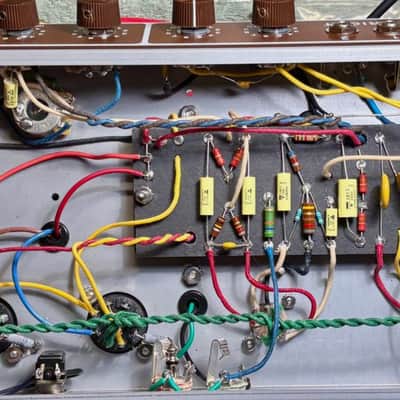

From the builder: "New set of Tube Depot matched EH 6V6S power tubes, aJJ GZ34 Rectifier tube and JJ preamp tubes. Tested, biased at 70% and ready to plug and play! Features Switchcraft jacks, Belton tube sockets with retainers and shields, Pacific Red Series power transformer and a killer sounding USA made, Heyboer paper interleaved output transformer with 8 ohm speaker out, F&T filter caps, Gavitt cloth covered solid wire, Vishay coupling caps, Vishay 1kv ceramic oscillator caps for the tremolo, new production carbon comp plate resistors for a lil mojo, 3 watt Vishay metal film power resistors in the power supply, Full sized Alpha/CTS pots just to name a few. The amp is built for a long and reliable service life! Eyelet board is 0.093" thick sourced from Mojotone as are the eyelet themselves. The amp has a bright and normal channel as pictured as well as Fender's famous bias tremolo! It also has an adjustable bias pot, additional filtering to the bias node, 1 ohm (1%) bias resistors on the 6V6 cathode for easy biasing in the future. 1.5k grid stoppers on the power tubes, reduced cathode bypass cap on V1 (a&b) from 25uf down to 4.7 uf to tighten up the low end a bit (-2 db at 100hz approx). Increased the filter caps to 47uf and the rest 22uf respectively for reduced power supply hum and better low frequency response, and a more modern grounding scheme which keeps the amp whisper quiet with regards to self noise. Other than what's mentioned above; the amp is stock Fender. All components are within 5% tolerance or better and are higher wattage rated than what the schematic calls for."

Promoted similar listings













Listed2 days ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • 6G3 Brownface Deluxe Circuit 1x12 Combo
Finish
  • Brown
Categories
Year
  • Recent
Made In
  • United States
