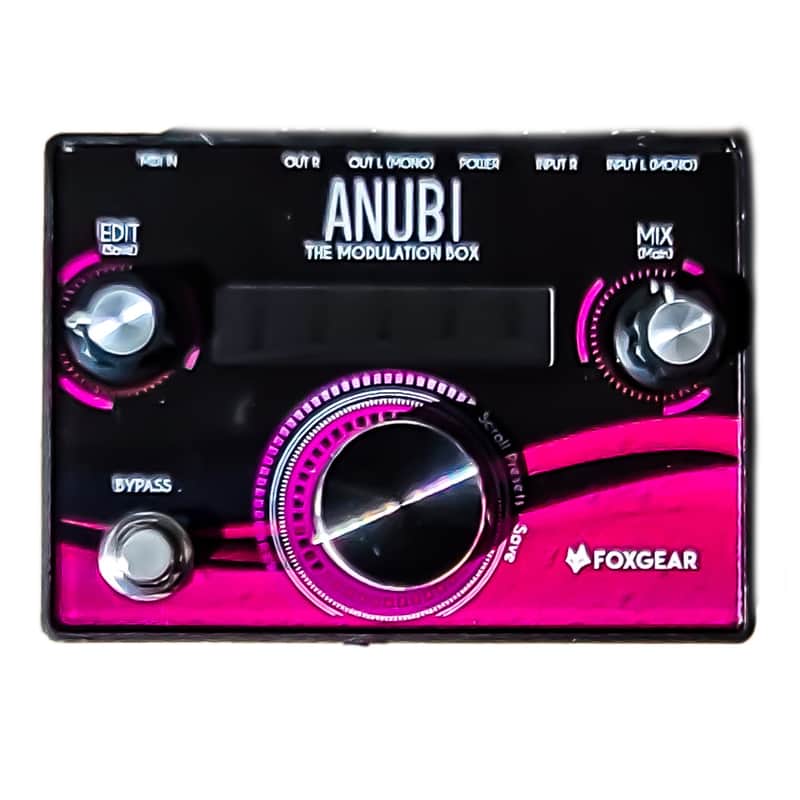

FOXGEAR ANUBI THE MODULATION BOX - WITH POWER SUPPLY

The Anubi Box is the perfect addition to your pedalboard or your Amplifier’s FX Loop as a master FX unit, cause it doesn’t convert all the signal into digital, but just respect your tone keeping the signal path 100% ANALOG. Anubi is able to give you one of the widest choice of premium designed Algorithms like in the list below. You can easily manage it by Midi pedalboard, or Midi Looper/Switcher To Change up to 128 Presets with 16 different Algorithms and also use MIDI to assign an expression pedal to modify each parameter like delay time, levels, speed, or Shimmer to be controlled like a sustain pedal in a piano to add the Shimmering, or again, pitch shifting to obtain a nice Whammy effect for solos.

• Algorithms List

ROOM CHORUSCHORUS (Reverb + Chorus)VIBE CHORUS(Vintage Vibe Chorus)CHORUS A CHORUS B CHORUS C PHASEREVPhaser + ReverbSTEREOPHASEStereo PhaserECHORUSEcho + ChorusLESLIEVERB ARotary + ReverbLESLIEVERB BRotary + ReverbVIBERBVibe + ReverbAUTOWAHVERBAutoWha + ReverbWAMMERPitch Shifting/OctaverPOLYPITCHMulti Pitch OptionsTREMOVERBTremolo + ReverbVINTPHASERClassic Phaser

• Features

The New ANUBI series,

Based on the trusty FV-1 Digital processor used in many boutique pedals, including our award winning Rainbow, the Anubi boasts a super bright LCD display, visible in any light conditions, and a super easy-to-use interface:

• 100% Analog Signal Path to keep your signal intact.
• Stereo Engine (input & output)
• Midi interface to manage Presets and EXP.
• 16 Algorithms (many are two algorithms together)
• 128 Presets Available
• 16 Midi Programmable Channels
• LCD display
• Analog MIX
• Digital Programmable Mix
• 100% Analog Signal Path
• Class A buffered Bypass with Relay

Check in the photogallery the State-of-Art Printed circuit board, proudly designed, manufactured and programmed ALL internally by our Team in our Factory.

You can see all the Audio-grade Capacitor (no SMD) in the Audio path, the Analog Mix, The Bypass Relay and the top quality components we use for the best sounding experience.

PARAM VALUE Power In9 to 12VDC (negative TIP)Consumption at 9V70mAInput Impedance<=1M OhmOutput Impedance<=10K OhmS/N ratio <90dbLength127mm. (5”)Width

Height

90mm. (3,5″)

30mm. (1,2”)

Weight0,6Kg. (1,3lbs)
