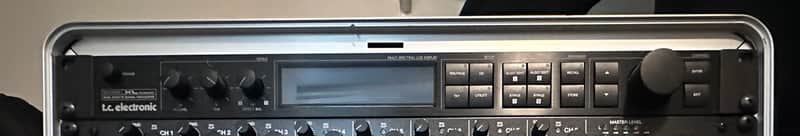

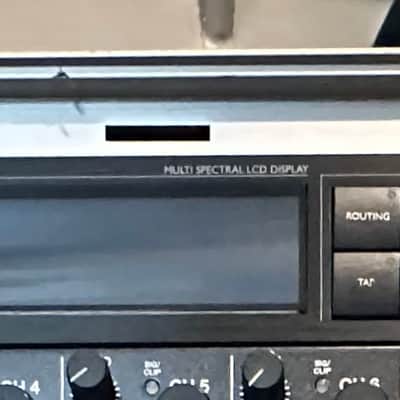

The TC Electronic M-One XL is a 1U rack-mountable, 24-bit digital dual-engine multi-effects processorwidely praised for live sound reinforcement and studio recording. Building upon the original M-One architecture, the XL version specifically introduces upgraded XL Reverb Technology and balanced XLR analog connections, making it a robust and reliable fixture for touring audio professionals.

Key Architectural Features

• Dual-Engine Processing: Powered by a 100 MIPS DSP engine, it features two independent processing blocks. You can run two pristine effects simultaneously without compromising sound quality.
• Flexible Signal Routing: The dual engines can be configured in multiple layouts. These include Dual Mono (completely separating the two engines for discrete send/return tracks), Parallel, Serial, and True Stereo.
• XL Reverb Technology: Delivers enhanced, dense reverb decays and complex early reflection patterns. It is highly optimized for realistic small room, ambient, and live vocal space simulations.
• Diverse Algorithm Palette: Beyond industry-standard reverbs, the unit packs 25 core algorithms including pitch shifting, delays, chorus, flanger, phaser, tremolo, compressor/limiter, de-esser, and expander/gate.

Technical SpecificationsParameter

SpecificationAudio Quality24-bit A/D and D/A converters, 128x oversamplingSample Rates44.1 kHz and 48 kHzAnalog I/O2 x Balanced XLR Inputs, 2 x Balanced XLR OutputsDigital I/O24-bit RCA Phono S/PDIF In/OutMIDI Interface5-pin DIN (In/Out/Thru) with MIDI clock sync capabilitiesMemory Capacity200 Factory Presets, 100 customizable User BanksControlFront-panel Tap Tempo button, data wheels, and footpedal input jackCommon Applications

• Live Vocal Processing: Sound engineers frequently favor it at live venues like The Empty Bottle to manage distinct vocal chains from one box. For instance, routing a doubling delay to engine one and a lush plate reverb to engine two.
• Acoustic Instruments: The room algorithms excel at adding depth and cohesive space to acoustic guitars, pianos, and live drums.
• Outboard Studio FX: Functions as a cost-effective, low-latency outboard processing insert for traditional mixing boards or hybrid DAW setups.
