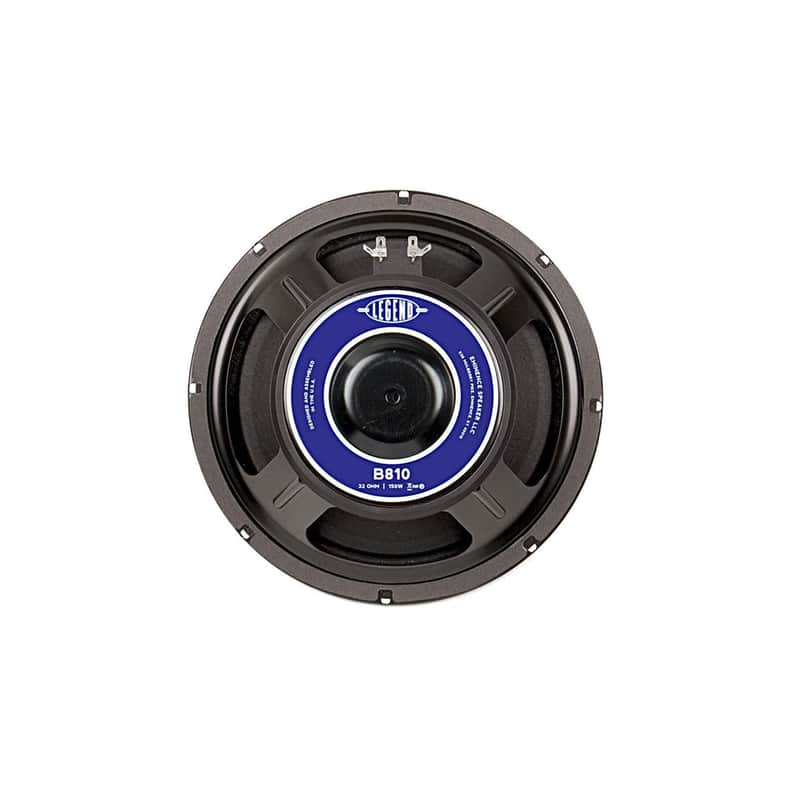

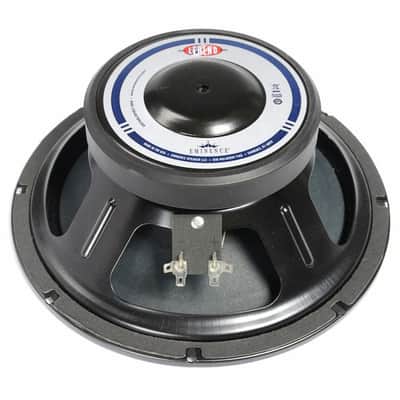

A 32 ohm, 10 inch bass guitar speaker offering classic sound with modern features. A perfect replacement for your 8x10 cabinet.

SPECIFICATION

Nominal Basket Diameter 10", 254 mm

Nominal Impedance* 32 Ω

Power Rating*

• Program Power 300 W
• Watts 150 W

Resonance 52 Hz

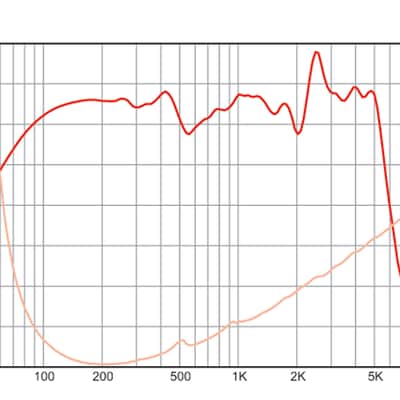

Usable Frequency Range 49 Hz - 5.1 kHz

Sensitivity* 92.7 dB

Magnet Weight 30 oz.

Gap Height 0.312", 7.9 mm

Voice Coil Diameter 2", 51 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs) 52 Hz

DC Resistance (Re) 27.5 Ω

Coil Inductance (Le) 2.72m H

Mechanical Q (Qms) 13.91

Electromagnetic Q (Qes) 0.68

Total Q (Qts) 0.65

Compliance Equivalent Volume (Vas) 66.4 liters / 2.34 cu.ft.

Peak Diaphragm Displacement Volume (Vd) 165.2 cc

Mechanical Compliance of Suspension (Cms) 0.39 mm/N

BL Product (BL) 17.7 T-M

Diaphragm Mass Inc. Airload (MMs) 24 grams

Efficiency Bandwidth Product (EBP) 77

Maximum Linear Excursion (Xmax) 4.7 mm

Surface Area of Cone (Sd) 350.1 cm2

Maximum Mechanical Limit (Xlim) 9.5 mm

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed Acceptable

Vented Acceptable

Driver Volume Displaced 0.039 cu.ft. / 1.1 liters

Overall Diameter 10.11", 256.8 mm

Baffle Hole Diameter 9.13", 231.9 mm

Front Sealing Gasket Yes

Rear Sealing Gasket Yes

Mounting Holes Diameter 0.23", 5.8mm

Mounting Holes B.C.D. 9.6", 243.8mm

Depth 4.08", 103.6 mm

Net Weight 6.7 lbs, 3.04 kg

Shipping Weight 7.9 lbs, 3.58 kgs

MATERIALS OF CONSTRUCTION

Coil Construction Copper voice coil

Coil Former Kapton former

Magnet Composition Ferrite magnet

Core Details Bumped

Basket Materials Pressed steel basket

Cone Composition Paper cone

Cone Edge Composition Cloth cone edge

Dust Cap Composition Zurette dust cap
