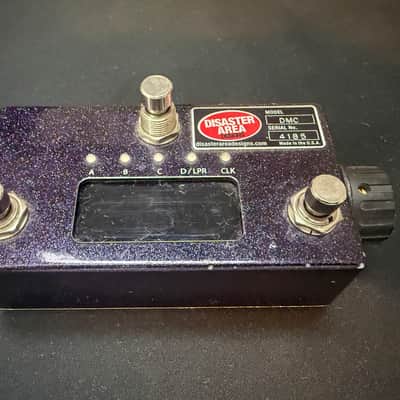

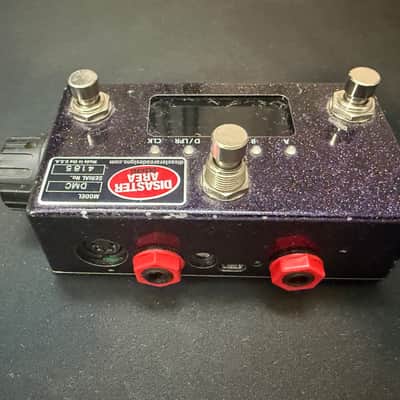

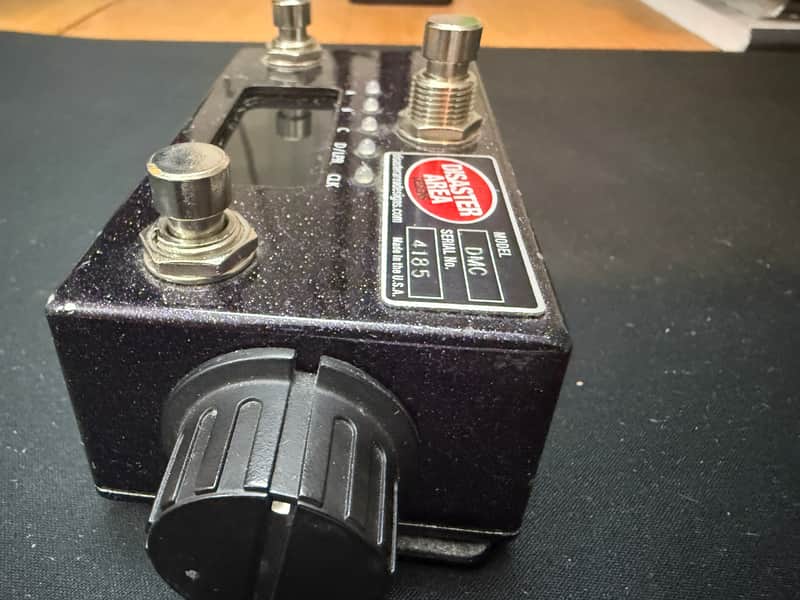

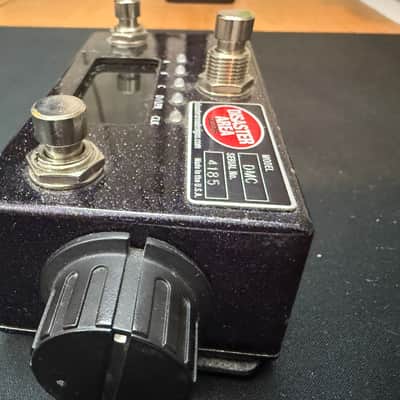

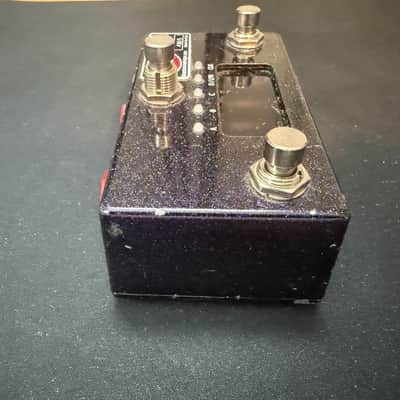

I have a gen3 DMC-3XL wit gHost controller and expression roller. Very versatile pedal with expression control! It's done up in a sparkle grape - a real beauty. Updated to the most recent firmware version and ready for your pedalboard.

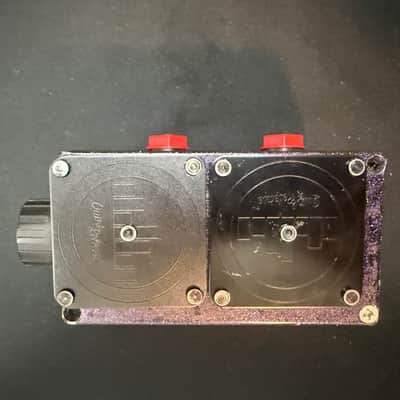

The pedal was part of a Temple audio board. I can remove the quick release plates or leave them on if you like.

Available to continental US only - still love you Alaska, Hawaii, Canada and Mexico. Thanks for checking it out.

The DMC-3XL Gen3 is the next generation compact MIDI controller from Disaster Area.

Control up to four MIDI devices plus any combination of Disaster Area pedalboard switching systems. Note that enabling any of the looper modes will disable control for the fourth MIDI device.

Built-in SMARTClock – The DMC-3XL Gen3 adds in support for sending MIDI Clock or tap tempo to your connected devices, without any additional hardware. The MultiJack connector can operate as an expression pedal input, tap tempo footswitch input, MIDI output, or isolated tap tempo output. The DMC-3XL Gen2 can send either a global tempo / BPM for all presets, or a new tempo / BPM for each preset.

User-Definable CC Command Mode – Based on customer requests, we’ve added the CC mode that allows the user to define any two commands for the left and right footswitches. Send one-shot, momentary, or toggle CC messages, MIDI notes, or change banks on your Strymon devices in this handy mode. (requires firmware v1.01 or higher!)

This pedal has the gHost controller – The DMC-3XL Gen3 can control an external USB-MIDI device including the popular Zoom MS-50G, MS-60B, and MS-70CDR using its native USB port. Connect your USB-MIDI device to the DMC-3XL Gen3 USB port through our gHOST adaptor, set the USB mode, and you’re all set! The DMC-3XL Gen3 can power most USB-MIDI devices, but please note that the power supply you’re using must be sufficient to power the DMC plus the connected device. Powering a USB device may require as much as 500mA, so be sure your power supply can handle the load.

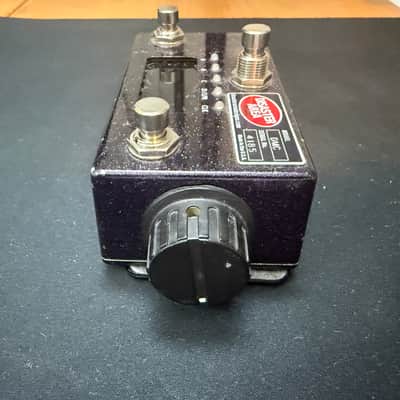

This pedal also has the expression roller. It’s a great way to add expression control without giving up valuable pedalboard real estate. In the Gen3, we’ve given the roller its own input channel, so that you can assign it independently from the expression input.

MultiJack – Now it can function as an expression pedal input, tap tempo footswitch input, or a second MIDI output by connecting the . You can use our to connect your Tonal Recall, Warped Vinyl or other Chase Bliss pedal for full MIDI control. Want more? Flip the DIP switches inside the pedal and the MultiJack can act as an isolated tap tempo output to your non-MIDI gear. Any of the pedals listed over on the TNT or SMARTClock pages can be controlled by the MultiJack.

— Supported MIDI Devices —

Full MIDI Control Support for the following devices:

Strymon: Timeline, Mobius, BigSky

Eventide: H9, Space, Timefactor, Modfactor, Pitchfactor

Line 6: M5, M9, M13

Chase Bliss: Warped Vinyl, Wombtone, Gravitas, Spectre, Tonal Recall (control up to 4 with an Empress MIDIBox, control a single pedal with our )

Boss DD-500 (full support,) SL-20 (clock only)

Electro-Harmonix HOG2

Pigtronix Echolution 2 / Deluxe / Ultra

Alexander: Super Radical, Oblivion

Empress: Reverb, Tremolo 2 (control up to four Empress devices using Empress MIDIBox, control a single pedal with a mono cable connected to the MultiJack)

Panda Audio Future Impact I

Free The Tone: Flight Time Delay FT-1Y

Source Audio Neuro Hub / Soundblox Hub: control up to five One Series or Soundblox 2 series pedals from a single MIDI channel. Control up to 20 (yes, twenty!) Source Audio pedals with a single DMC Gen3!

DigiTech: Whammy V, Bass Whammy (newest version) – works with Classic or Chords modes.

Zoom MS-50G, MS-60B, MS-70CDR using gHOST Adaptor Cable. MS-100BT not supported due to lack of USB port.

General MIDI: Supports most MIDI devices, sends program changes 0-127 and MIDI CC for tap tempo, expression, and performance switch controls.

— Features and Specs —

Sturdy cast aluminum enclosure
Enclosure Dimensions 4.8″ x 2.6″ x 1.4″
Soft-touch footswitches
Blue LED display with 10 brightness levels
5-pin MIDI port, doubles as MIDI input using the Disaster Area MIDI Y-Cable
9vDC power jack, 80mA max
USB port with USB-MIDI functionality or optional USB Host compatibility
1/4″ jack for expression pedal or tap tempo switch
MultiJack functions as expression pedal input, tap tempo input, tap tempo output, or MIDI output with , control a single Empress or Chase Bliss device with the appropriate cable.
Optional side roller assignable to expression or looper level
