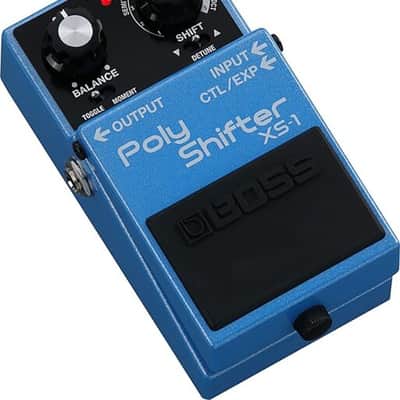

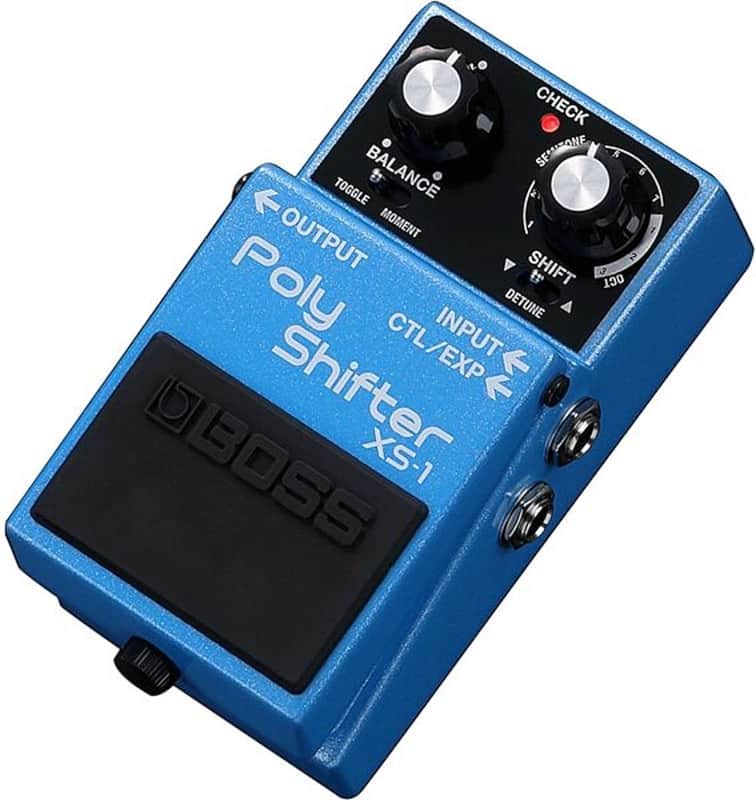

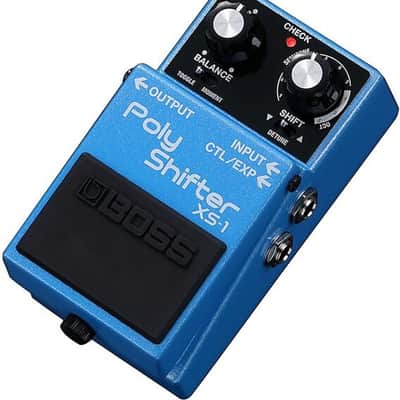

The BOSS XS-1 Poly Shifter brings next-level pitch-shifting power to your pedalboard, combining decades of Roland and BOSS innovation with a compact, road-ready design. At its core is advanced polyphonic pitch-shifting technology, delivering smooth, precise tracking whether you're playing single notes or dense chords. With high-quality 24-bit AD conversion enhanced by BOSS's proprietary Adaptive Focus (AF) method, the XS-1 ensures exceptional clarity and an improved signal-to-noise ratio. The 32-bit DA conversion and 48 kHz sampling frequency further guarantee pristine audio performance, giving players studio-grade sound on stage or in the studio. Designed to handle a wide range of playing dynamics, the XS-1 boasts an impressive input range, buffered bypass for tonal integrity, and flexible connectivity including dedicated control/expression inputs.

Beyond its sonic precision, the XS-1 is built for creative expression and ease of use. Players can shape their sound with intuitive onboard controls, including BALANCE and SHIFT knobs, plus dedicated switches for pedal mode and shift direction, making it simple to dial in subtle harmonies or extreme pitch effects. A bright CHECK indicator doubles as a battery status monitor, while rugged input/output jacks and a CTL/EXP input expand the pedal's versatility in live setups. Power comes from either an AC adaptor or a single 9V battery, with approximately three hours of continuous use on alkaline power, ensuring reliable operation on the go. Compact, powerful, and loaded with cutting-edge digital processing, the BOSS XS-1 Poly Shifter is a must-have tool for guitarists and bassists seeking dynamic pitch effects with uncompromising sound quality.

- AD conversion: 24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
- DA conversion: 32 bits
- Sampling Frequency: 48 kHz
- Nominal input level: -20 dBu
- Maximum Input Level: +7 dBu
- Input impedance: 1 MOhm
- Nominal output level: -20 dBu
- Maximum output Level: +7 dBu
- Output impedance: 1 kOhm
- Recommended load impedance: 10 kOhm or greater
- Bypass: Buffered bypass
- Controls:
- BALANCE knob
- SHIFT knob
- PEDAL MODE switch
- SHIFT DIRECTION switch
- Pedal switch
- Indicator: CHECK indicator (Used for check battery)
- Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- CTL/EXP jack: 1/4-inch TRS phone type
- DC IN jack
- Power supply:
- AC adaptor
- Alkaline battery (6LR61 or 6LF22, commercially available) x 1
- Current draw:- Expected battery life under continuous use: Alkaline battery (6LR61): Approximately 3 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
- Dimensions (W x D x H): 2-7/8 x 5-1/8 x 2-3/8 inches / 73 x 129 x 59mm
- Weight (including battery): 410 g / 15 oz
- Accessories:
- Leaflet ("USING THE UNIT SAFELY", "IMPORTANT NOTES" and "Information")
- Alkaline battery (9 V, 6LR61 or 6LF22)
- Options (sold separately):
- AC adaptor: PSA series
- Footswitch: FS-5U
- Dual footswitch: FS-6, FS-7
- Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
* 0 d Bu = 0.775 V rms Dimensions and Weight in Packaging Shipping Weight: 1.03 lbs Shipping Dimensions: 6 x 4 x 3 in Manufacturer Part Number (MPN): XS-1
