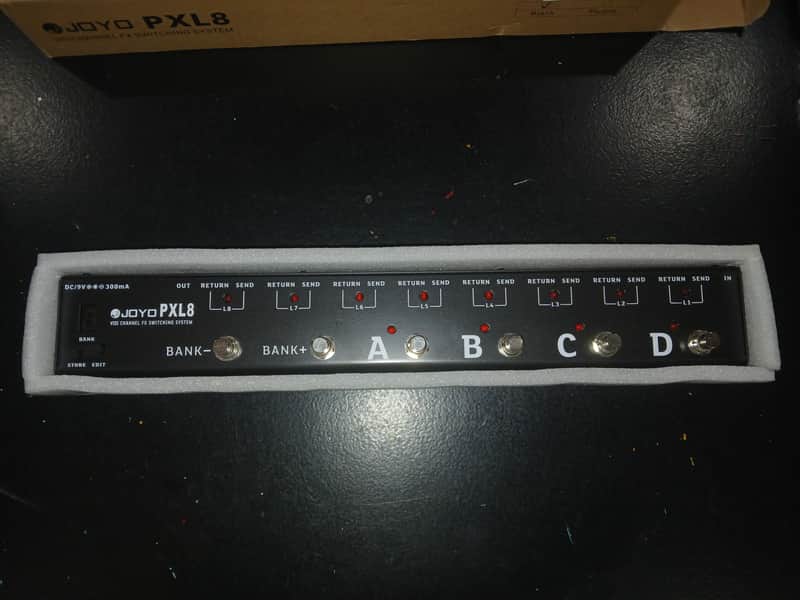

Like new in the box with original packaging. Power supply not included but can be run from a pedal power system with your other pedals. These things are great for setting up limitless pedal combinations.

OPERATION INSTRUCTIONS

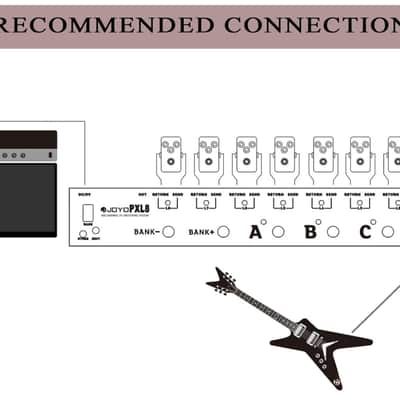

1. Connect your effect pedals to the L1 - L8 FX loop. Connect the SEND jack to the FX pedal's input jack, and connect to RETURN jack to the FX pedal's output jack.

2. Connect your guitar to the PXL8's input jack.

3. Connect the PXL8 from the output to your amplifier's input

4. Connect the PXL8 power supply and also power on all your effects pedals, turn on all the FX pedal connected in the PXL8's FX loop.

5. Power your amplifier on.

6. All the 8 LOOP channel of PXL is set to BYPASS mode and the group status indicator will flash after powered up, this means you have to choose one FX combination to start your sound.

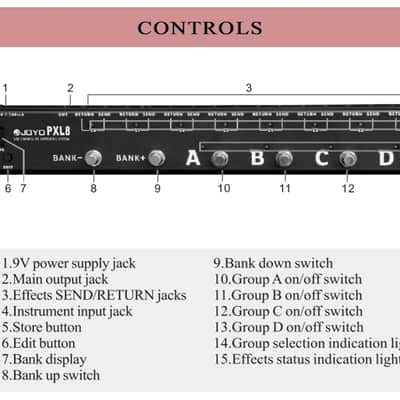

7. Use the A/B/C or D switches to turn on/off the effect group you select. By repeatedly pressing any one of those switches, you bring the unit in and out of bypass modee. NOTE: While in Bypass mode, you can not perform an edit operation.

8. The BANK+ and BANK- switches allow you to toggle between banks. there are eight banks（1-8）available in the PXL8. when any bank is changed, the group will not be switched until one of the A/B/(C/D) buttons is pressed.

Note：You can not perform an EDIT operation during bank change until you make a selection of one combination by pressing the A/B/C/D button again.
