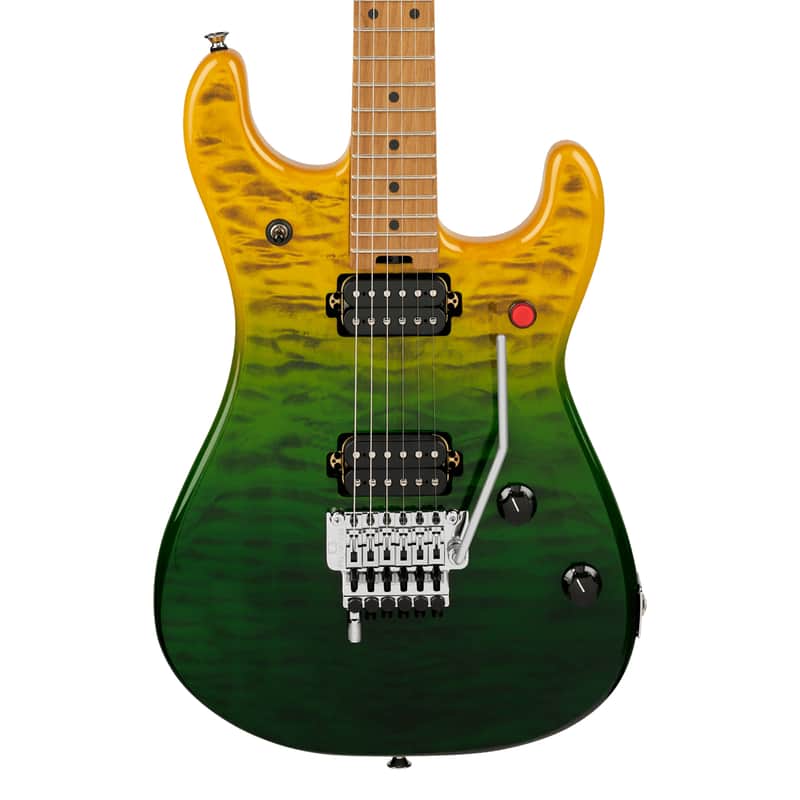

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150 Series DX is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the 5150 DX features a modified Strat-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn baked maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and "hockey stick" headstock with EVH logo decal. Built for smooth and speedy playability, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH Wolfgang Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna for switching back and forth from drop-D to standard tuning in an instant. EVH Wolfgang / Striped Series bag INCLUDED!!

Features

General

• Series : 5150 Series Guitars
• Color : Limeade Zest
• Number of Strings : 6
• Orientation : Right-Hand

Body

• Body Finish : Gloss Urethane
• Body Shape : 5150
• Body Material : Basswood
• Body Top : Quilt Maple

Electronics

• Bridge Pickup : Direct Mount EVH Wolfgang Humbucking
• Neck Pickup : Direct Mount EVH Wolfgang Humbucking
• Pickup Color : Black
• Controls : Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Pickup Switching : 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Auxiliary Switching : Kill Switch
• Pickup Configuration : HH

Neck

• Neck Material : Quartersawn Baked Maple
• Neck Construction : Bolt-On with Graphite Reinforcement
• Neck Thickness : .790" at 3rd Fret & .810" at 12th Fret
• Neck Finish : Hand-Rubbed Satin Urethane
• Neck Shape : EVH Modified "C" Backshape
• Scale Length : 25.5" (648 mm)
• Fingerboard Radius : 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material : Baked Maple
• Number of Frets : 22
• Fret Size : Jumbo
• Nut Material : Floyd Rose R3 Locking
• Nut Width : 1.685" (42.8 mm)
• Position Inlays : Black Dot
• Side Dots : Black
• Truss Rod Nut : Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench : 2.5 mm Hex
• String Trees : Floyd Rose Retainer Bar
• Headstock : EVH Hockey Stick
• Neck Plate : 4-Bolt Standard

Hardware

• Bridge : Top-Mount EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Hardware Finish : Chrome
• Tremolo Arm : Floyd Rose 1000 Series Locking
• Tremolo Block : Brass
• Tuning Machines : EVH-Branded Gotoh
• Control Knobs : Black Knurled with White Indicator
• Switch Tip : Black

Miscellaneous

• Strings : EVH Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons : Oversized
• Case/Gig Bag : EVH Striped Series Gig Bag (P/N 022-7742-100) Included; Optional EVH Striped Hardshell (P/N 022-6100-506)

Accessories

• Included Accessories : Tremolo Arm, Hex Keys & User Manual
