ADDAC System ADDAC901PF 15U Foldable Frame Eurorack Case #58930

WORKING CONDITION: Excellent. All power points provide the proper voltage and current, and the case opens and closes easily.

PHYSICAL CONDITION: Very Good. There are a few scuffs on the kickstand portion from use, but otherwise, this case is in excellent condition.

INVENTORY #58930

BRAND: ADDAC System

MODEL: ADDAC901PF

FUNCTION: Eurorack Synthesizer Module Case

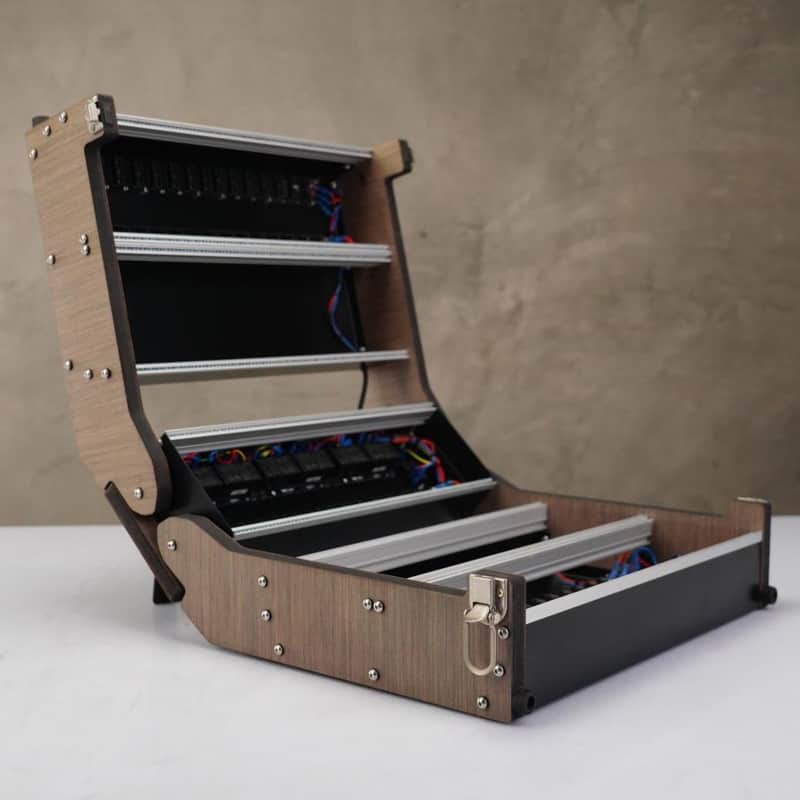

PRODUCT DESCRIPTION: This listing is for an ADDAC System ADDAC901PF 15U Foldable Frame Eurorack Case. The ADDAC System ADDAC901PF 15U Foldable Frame is a high-capacity, portable Eurorack case featuring a foldable 3-tier design. It is designed for musicians who need a large-format modular setup that can be easily transported, providing a total of 425HP of module space and a robust 9A power supply.

SPECS:

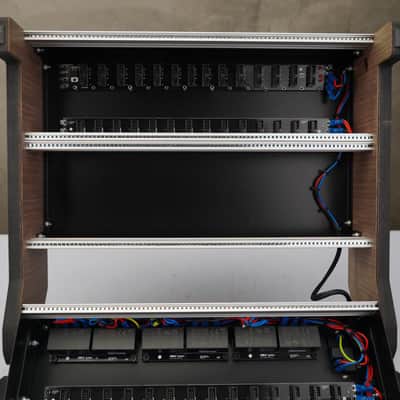

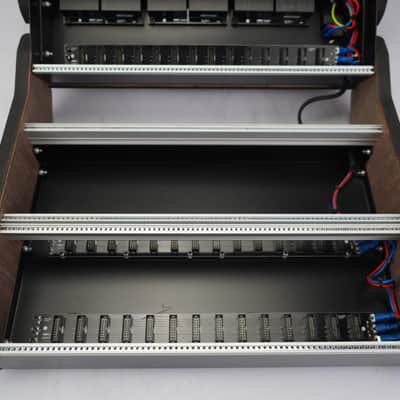

• Capacity: 15U total height (5 rows of 3U), providing 425HP total (85HP per row).
• Power Supply: Delivers a total of 9A current, split as 4.5A on +12V and 4.5A on -12V.
• Dimensions:
  • Folded: 47 cm (W) x 43 cm (H) x 24 cm (D).
  • Unfolded: 47 cm (W) x 50 cm (H) x 67 cm (D).
• Module Depth: Maximum depth of 6 cm (~2.4 inches).
• Foldable Frame: The three-tier structure allows the case to collapse for easier transport and storage while maintaining its capacity when open.
• Build Materials: Constructed from aluminum with 19mm side panels for durability.

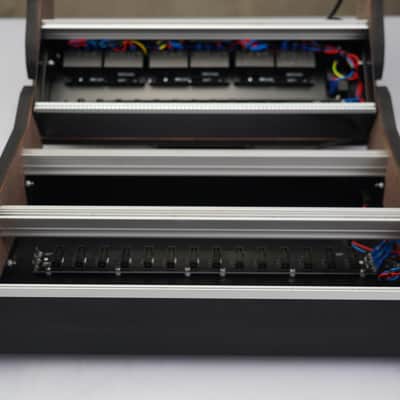

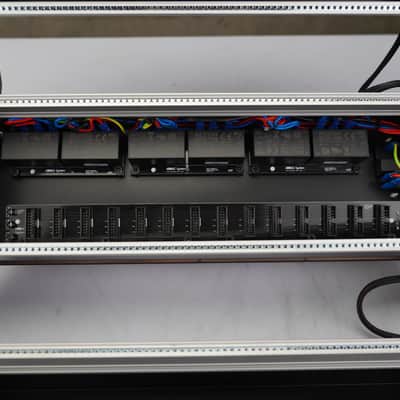

• Connectivity: Includes 5 busboards (one per row), each equipped with 19 connectors for modules.
• Portability: Compatible with the ADDAC MESA Shoulder Bag for easier travel.

ACCESSORIES INCLUDED: Includes power cable only

UNPACKAGED WEIGHT: 17 lbs.

UNPACKAGED DIMENSIONS: 19" x 10" x 19"
