Vintage Synth Lab VCF-74 Filter Eurorack Synthesizer Module w/ Box #58596

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58596

BRAND: Vintage Synth Lab

MODEL:  VCF-74 Voltage Controlled Filter

FUNCTION: Eurorack Synthesizer Module

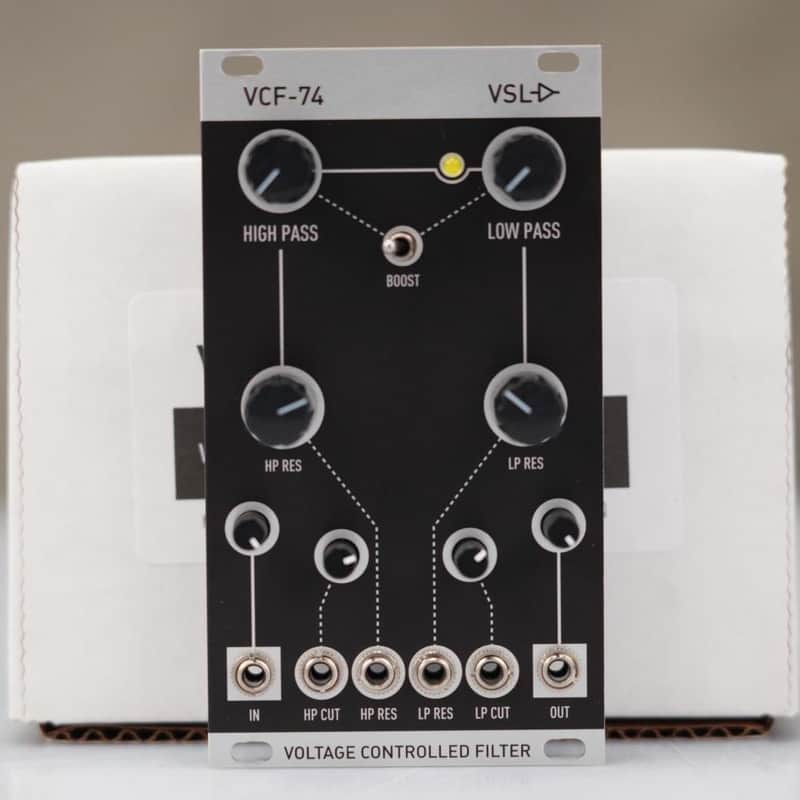

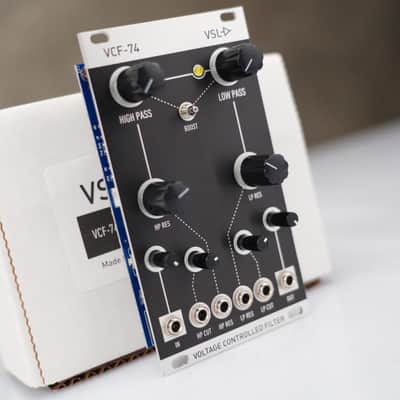

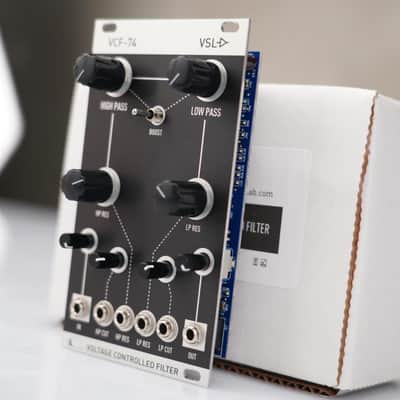

PRODUCT DESCRIPTION: This listing is for a Vintage Synth Lab VCF-74 Voltage Controlled Filter Eurorack Synthesizer Module. The Vintage Synth Lab VCF-74 MK2 is a 14HP Eurorack analog voltage-controlled filter module that provides a warm, organic sound inspired by the 1970s Univox Mini-Korg "Traveler" filter.

SPECS:

• Module Type: Voltage Controlled Filter (VCF).
• Width: 14HP.
• Depth: 29mm.
• Current Draw: 41mA @ +12V; 48mA @ -12V.
• Circuit Design: Discrete diode filter circuit.
• Filter Configuration: Cascaded (series) high-pass (HP) and low-pass (LP) filters.
• Controls: Independent manual cutoff and resonance controls for both the HP and LP sections.

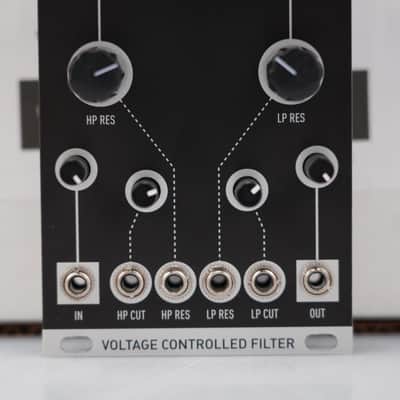

• Inputs/Outputs: Audio input, audio output, CV inputs for HP cutoff, HP resonance, LP cutoff, and LP resonance.
• Additional Features: A boost switch for driving the LP filter with a +5.3dB signal from the HP filter for warm saturation, and built-in attenuators for input/output levels and CV inputs.

ACCESSORIES INCLUDED: This item comes as seen in photos and includes its original box and...

• Eurorack Power Cable
• (4) Eurorack Screws

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 3" x 4"
