WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58544

BRAND: Malekko Heavy Industry

MODEL:  Wiard Oscillator

FUNCTION: Eurorack Synthesizer Module

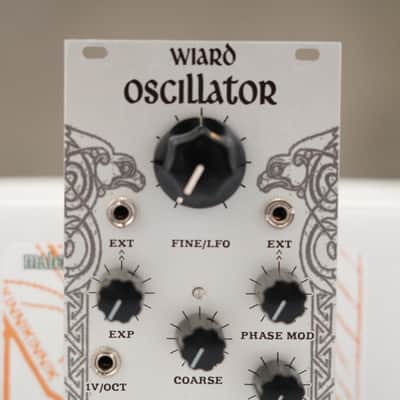

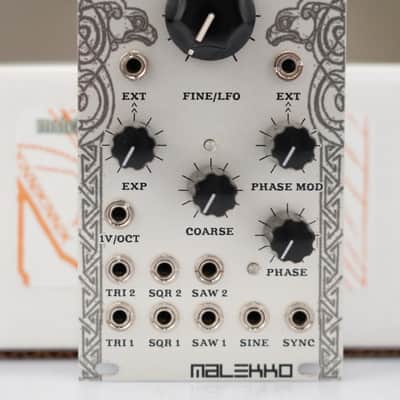

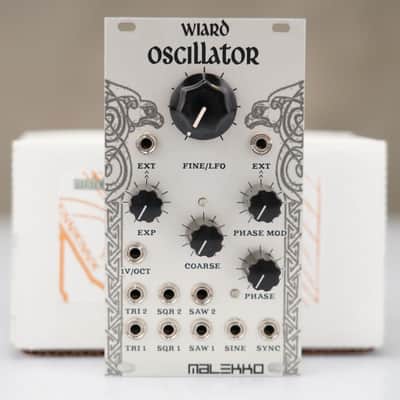

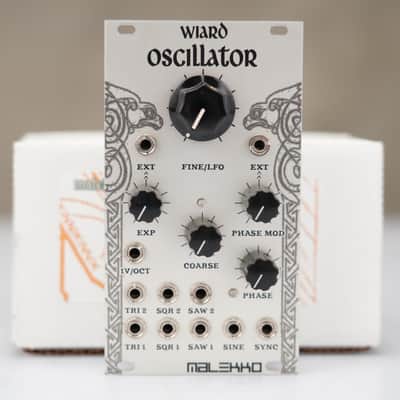

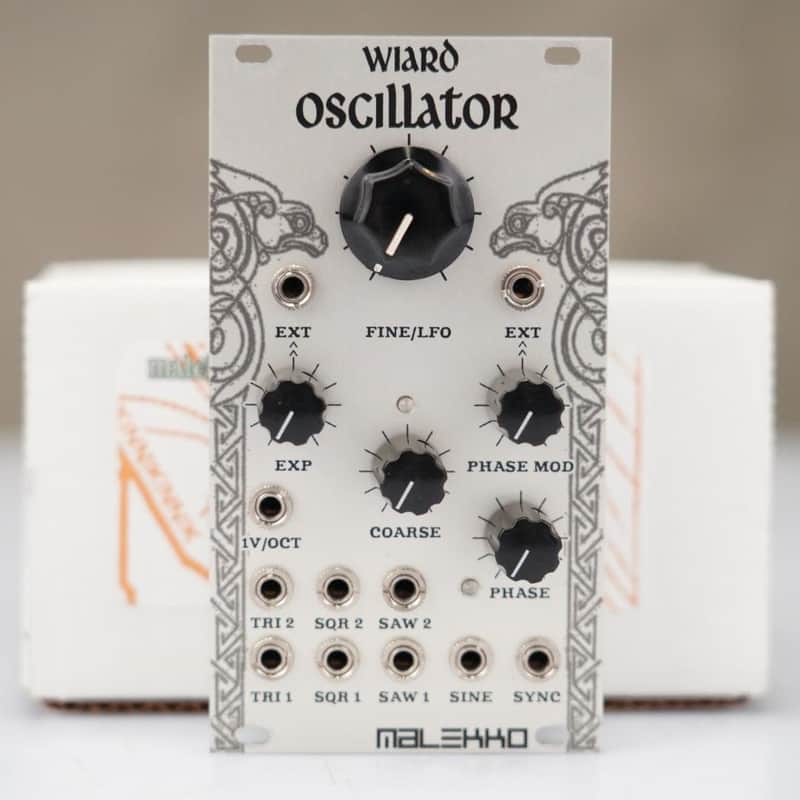

PRODUCT DESCRIPTION: This listing is for a Malekko Heavy Industry Wiard Oscillator Eurorack Synthesizer Module. The Malekko Heavy Industry Wiard Oscillator is a 14HP analog Eurorack module based on legendary designs by Grant Richter of Wiard Synthesizer Company. It is known for its high-quality analog waveforms and unique phase-modulation capabilities that allow for complex timbral exploration.

SPECS:

• This module provides seven simultaneous waveform outputs and can operate as both a high-frequency oscillator and a low-frequency oscillator (LFO).
• Standard Outputs: Dedicated outputs for Sine, Triangle, Square, and Sawtooth waves.
• Phase-Modulated Outputs: A second set of Triangle, Square, and Sawtooth outputs that can be shifted up to 90 degrees using the Phase control or external CV.
• LFO Mode: A center toggle switch (or push-pull pot on some versions) transitions the module into LFO range, where the phase-shifted outputs can be used for staggered modulation effects.
• Purity: According to users on Reverb and Perfect Circuit, the Sine wave is exceptionally pure, and the "Triangle 2" output is noted for its smoothness in the Eurorack format.
• Width: 14HP.
• Depth: 35mm.
• Power Consumption: 90mA on the +12V rail and 90mA on the -12V rail.
• Tuning Controls: Dedicated Coarse and Fine frequency controls with accurate 1V/Oct tracking over 8 octaves.
• Modulation Inputs: Includes 1V/Oct input, exponential FM with an attenuator, and a Phase CV input with its own attenuator.

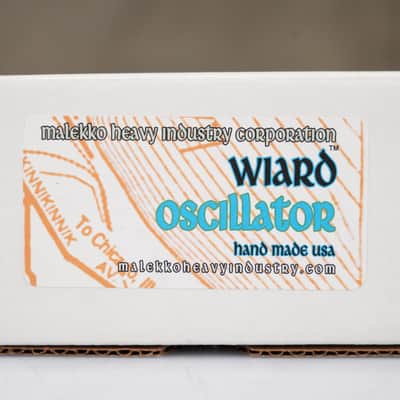

ACCESSORIES INCLUDED: This item comes as seen in photos and includes the original Wiard box plus...

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 3" x 3"
