Malekko CV.GT Eurorack Module w/ Patch Cables #58531

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58531

BRAND: Malekko Heavy Industry

MODEL:  CV.GT

FUNCTION: Eurorack Synthesizer Module

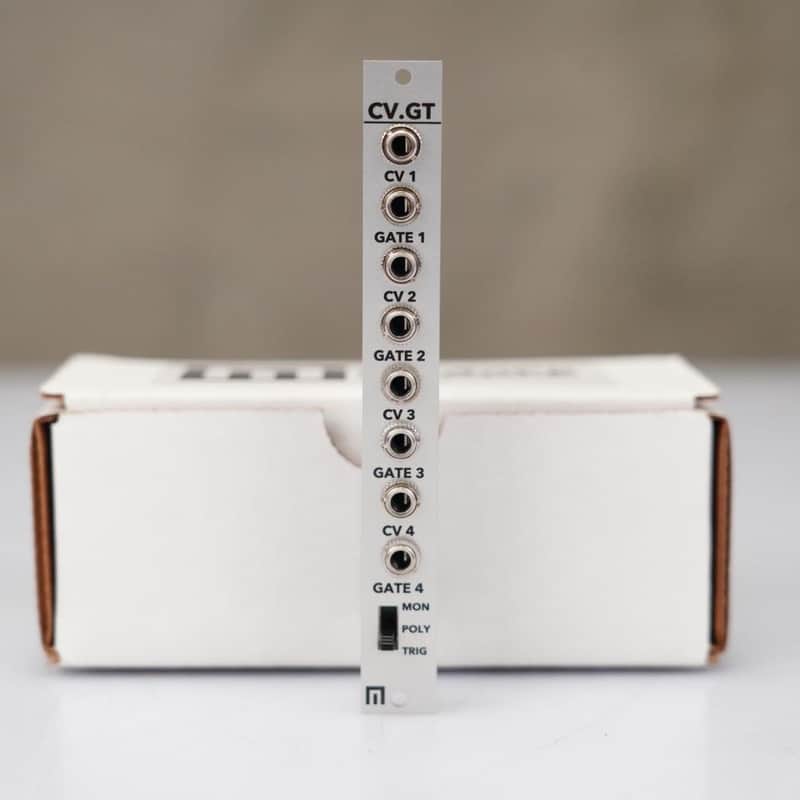

PRODUCT DESCRIPTION: This listing is for a Malekko Heavy Industry CV.GT Eurorack Synthesizer Module. The Malekko Heavy Industry CV/GATE (often referred to as CV.GT) is a compact 3HP expander module specifically designed to add MIDI-to-CV and MIDI-to-Gate functionality to the Malekko Heavy Industry SYNC master clock module. It provides four sets of CV and Gate connections (8 outputs total) to convert incoming MIDI or trigger information into analog signals for a Eurorack system.

SPECS:

• The module is primarily an interface tool that requires a connection to the Malekko SYNC module via the INCLUDED 6-pin cable to function.
• Expansion Capability: Adds 4 channels and 8 dedicated outputs (4 CV, 4 Gate) to the host SYNC module.
• Operating Modes: Features a 3-way mode switch to select between:
  • Mono: MIDI channels 1–4 are sent separately to CV/Gate jacks 1–4.
  • Poly: Four notes sent over MIDI channel 1 are distributed across the four CV/Gate pairs.
  • Drum Trigger: Specific MIDI notes (C1–G1) are converted into triggers across the 8 output jacks.
• Physical Dimensions: 3HP wide and 30mm deep.
• Power Consumption: Vintage King lists the maximum current draw as +12V: 19mA and -12V: 1mA.

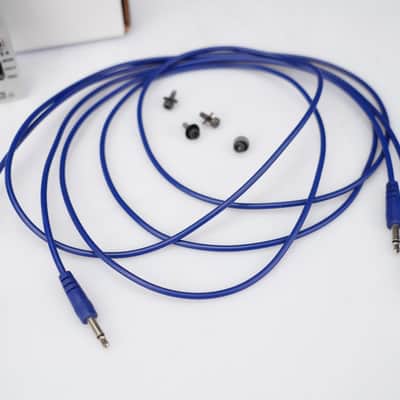

ACCESSORIES INCLUDED: This item comes as seen in photos and includes a module box and...

• (1) Eurorack Power Cable

• (1) 6-PIN Eurorack SYNC Connector
• (2) Eurorack Patch Cables
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 9" x 4" x 9"
