WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58355

BRAND: Noise Engineering

MODEL: Loquelic Iteritas Percido

FUNCTION: Eurorack Synthesizer Module

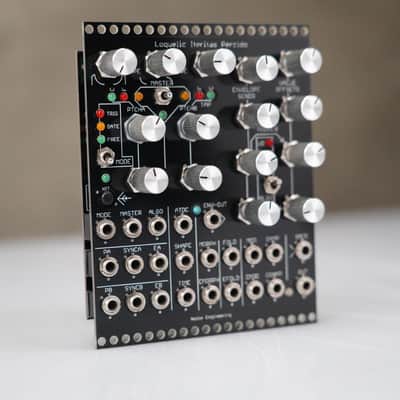

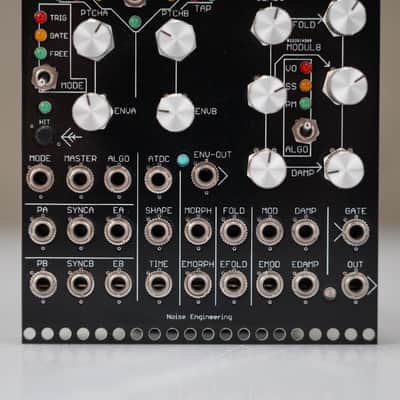

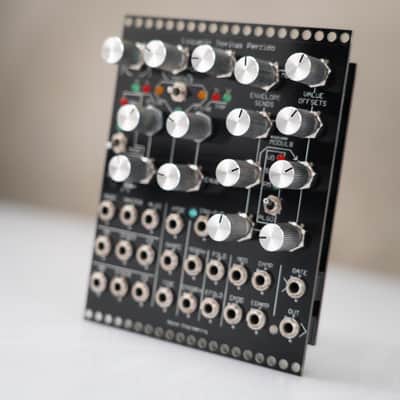

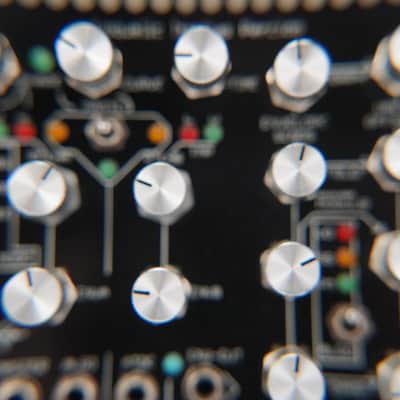

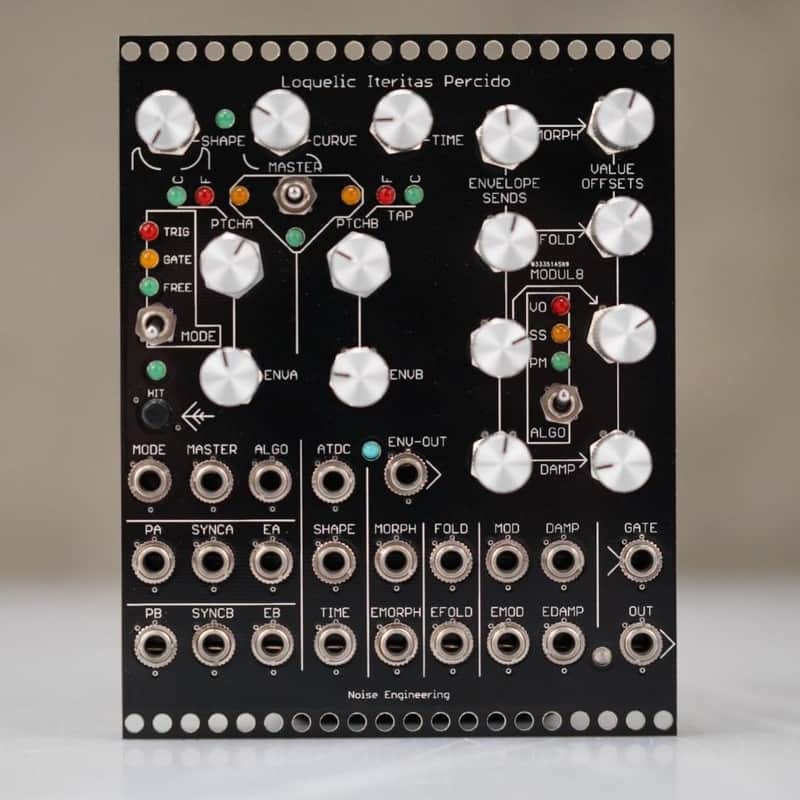

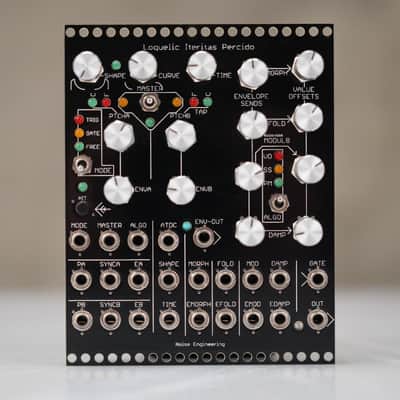

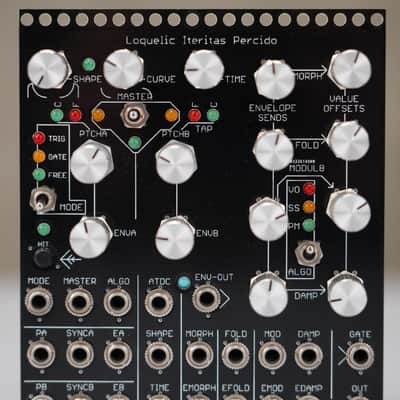

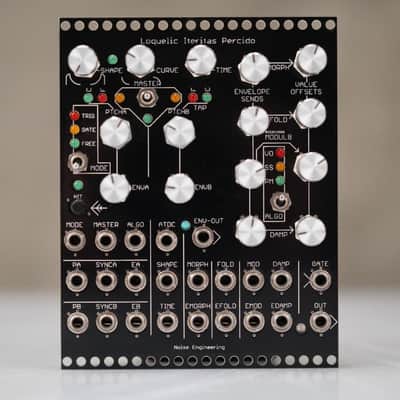

PRODUCT DESCRIPTION: This listing is for a Noise Engineering Loquelic Iteritas Percido Eurorack Synthesizer Module. The Loquelic Iteritas Percido (LIP) is a 20HP digital complex synthesizer voice from . It expands on the original Loquelic Iteritas oscillator by adding an integrated envelope generator and an internal modulation matrix.

SPECS:

• Synthesis Algorithms: It features three distinct digital algorithms:
  • VO (VOSIM): Creates complex, raw overtone structures.
  • SS (Summation Synthesis): Produces metallic, clear timbres.
  • PM (Phase Modulation): Delivers classic, gritty digital sounds.
• Dual Oscillators: Two interweaved oscillators with independent pitch controls (A and B) that can be hard-synced.
• Tone Shaping: Four main parameters—Morph (waveform blending), Fold (wavefolding), Mod (cross-modulation), and Damp—interact differently depending on the selected algorithm
• Integrated Envelope: A loopable AD envelope that can be triggered or free-running.
• Modulation Matrix: Dedicated knobs allow you to route the internal envelope to any of the six primary parameters (two pitches and four tone controls) with positive or negative depth.

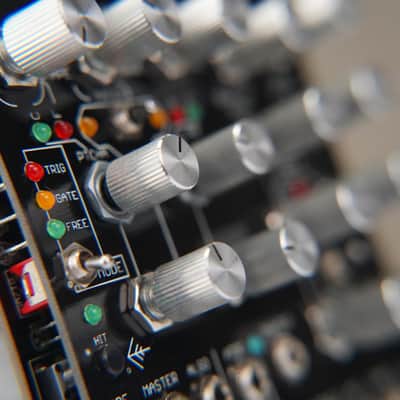

• Three Modes:
  • Trig: Envelope triggers via input.
  • Loop: Envelope repeats automatically.
  • Free: Disables the envelope for use as a standard free-running oscillator
• Size: 20 HP width; 26mm depth.
• Power Consumption: +12V: 150mA (80mA with +5V on); -12V: 5mA; +5V: 90mA (optional).

ACCESSORIES INCLUDED:

• 16 Pin Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 2" x 4"
