WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58451

BRAND: Intellijel

MODEL: Mutamix

FUNCTION: Eurorack Synthesizer Module

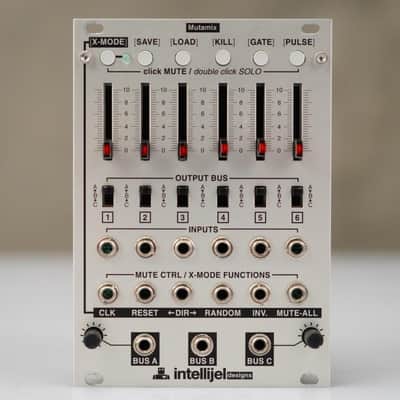

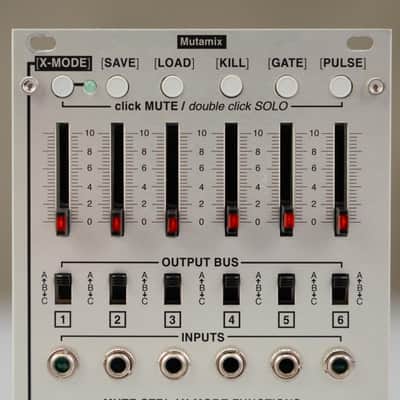

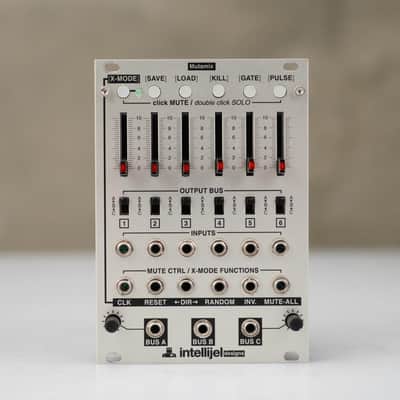

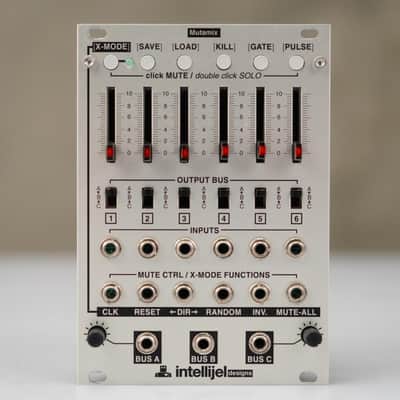

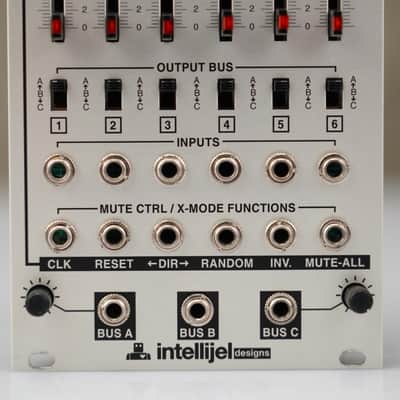

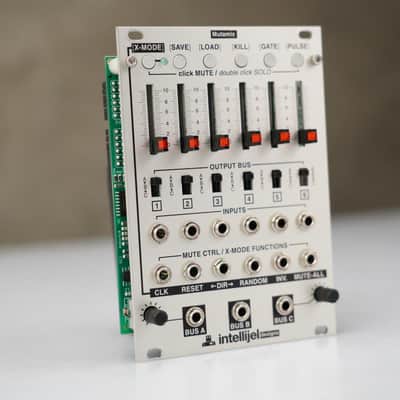

PRODUCT DESCRIPTION: This listing is for an Intellijel Mutamix Eurorack Synthesizer Module. The Intellijel Mutamix is a 18HP, 6-channel Eurorack mixer module designed for both audio and CV signals, featuring three switchable output buses (A, B, C) and linear faders. Each channel includes dedicated mute/solo buttons and VCA-based muting, allowing for complex, rhythmic signal routing and performance-oriented, controllable mixing.

SPECS:

• Three Output Buses: Inputs can be routed to three independent buses (A, B, and C) using 3-way switches.
• VCA-Based Muting: All muting is performed via high-quality VCAs, ensuring silent, click-free switching.
• X-Mode: A special operational mode that transforms the module into a hybrid mixer/sequencer. In this mode, the buttons instantly recall mute presets, and CV inputs can be used to step-sequence or randomize these patterns.
• Digital Control: Mute arrangements can be saved as presets to internal EPROM for instant recall during live performances.
• Master Controls: Includes master output level sliders for buses A and C.
• Width: 18HP.
• Depth: 38mm, making it "skiff-friendly".
• Power Usage: 58mA at +12V and 44mA at -12V.
• Sliders: 6 LED linear faders for input attenuation. The LEDs can be physically swapped for different colors.
• Response Curve: Includes internal jumpers to select between linear and pseudo-logarithmic response.
• Connectivity: Features a rear header to connect with the Intellijel Linix VCA/Mixer, allowing direct normalization of signals between the two.

ACCESSORIES INCLUDED:

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 2" x 4"
