WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58492

BRAND: Noise Engineering

MODEL: Basimilus Iteritas

FUNCTION: Eurorack Synthesizer Module

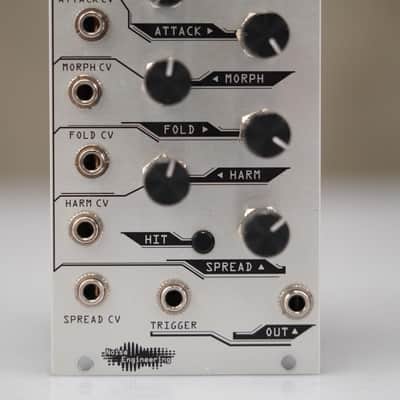

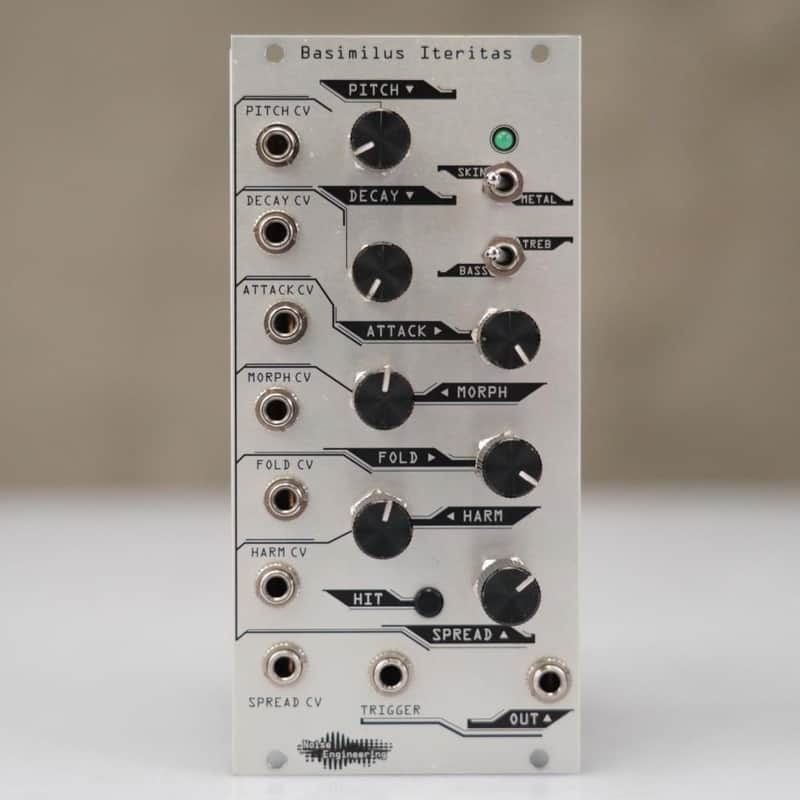

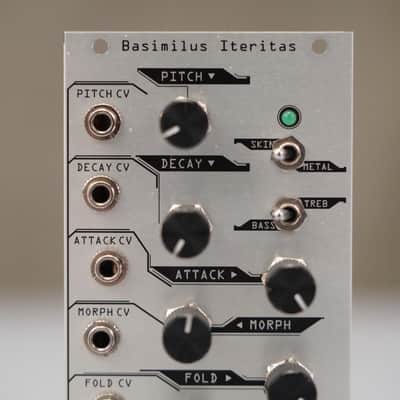

PRODUCT DESCRIPTION: This listing is for a Noise Engineering Basimilus Iteritas Eurorack Synthesizer Module. The Noise Engineering Basimilus Iteritas is a parameterized digital drum voice for Eurorack systems, known for its versatile six-oscillator additive and FM synthesis architecture.

SPECS:

• Six-Oscillator Engine: Uses a combination of additive and FM synthesis to create rich, complex timbres.
• Three Operating Modes:
  • Skin: A classic additive synthesis mode ideal for standard membrane drum sounds.
  • Liquid: Similar to Skin but adds a hard pitch envelope for extra punch and "drippy" percussive effects.
  • Metal: A 6-operator FM mode perfect for metallic, atonal sounds like cymbals and industrial hits.
• Harmonic Spread: Displaces the six oscillators across various ranges, moving from harmonic overtone series to inharmonic textures.
• Wavefolding (Infinifolder): An extreme take on a wavefolder that adds significant crunch and timbral variety to the summed oscillators.
• Size: 10HP (original version was 12HP).
• Depth: 25mm to 38.1mm depending on the model version.
• Power Usage: +12V/105mA and -12V/10mA.
• Connectivity: Includes 9 CV inputs for nearly every parameter, a trigger input, and an envelope output for modulating other modules.

ACCESSORIES INCLUDED:

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 3" x 2"
