WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58482

BRAND: Make Noise Music

MODEL: Pressure Points

FUNCTION: Eurorack Synthesizer Module

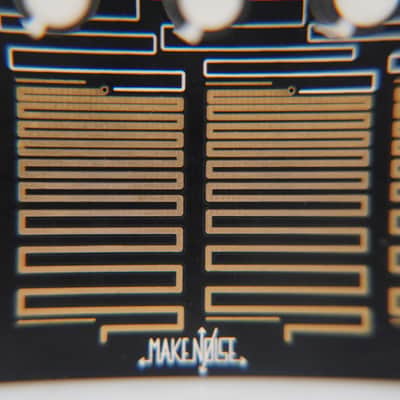

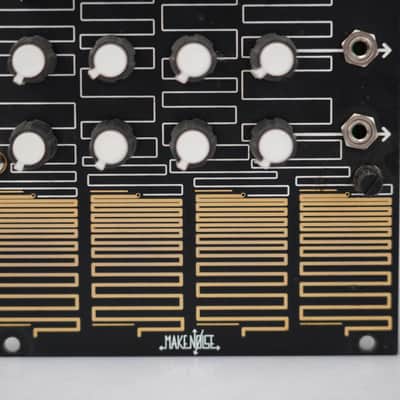

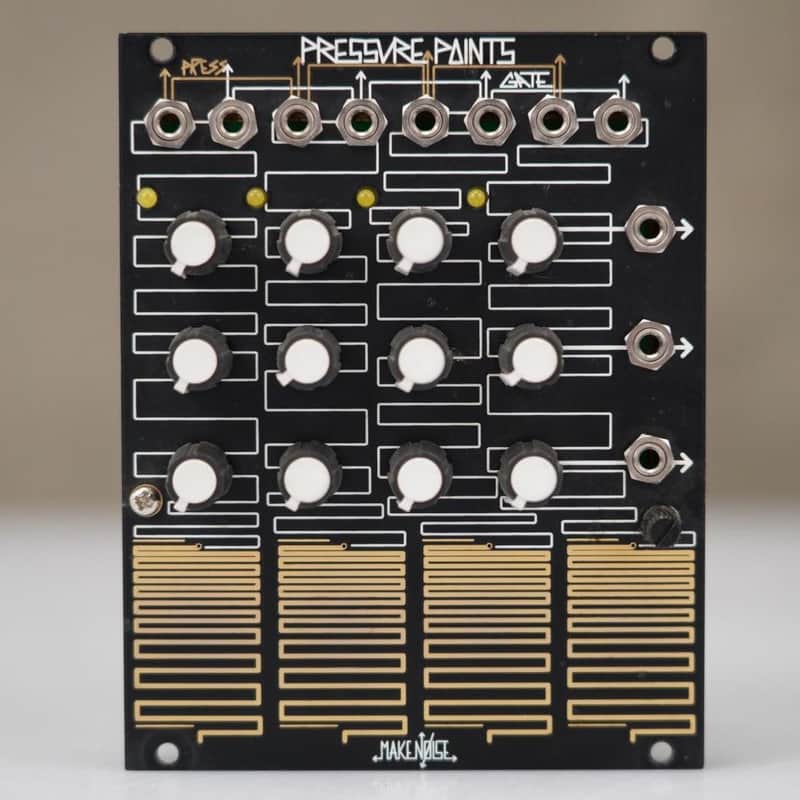

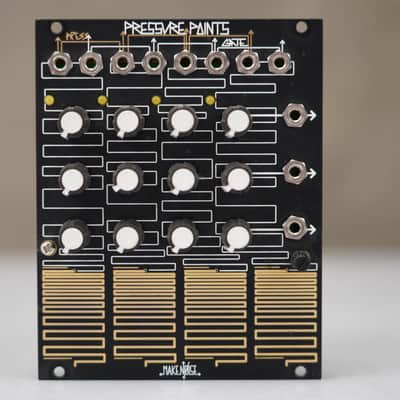

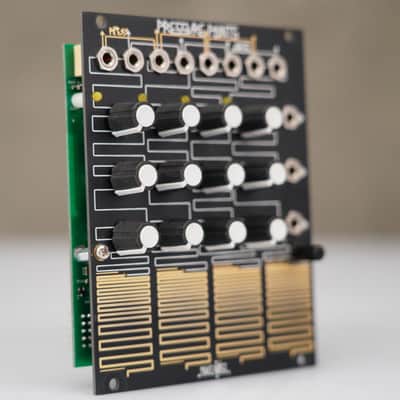

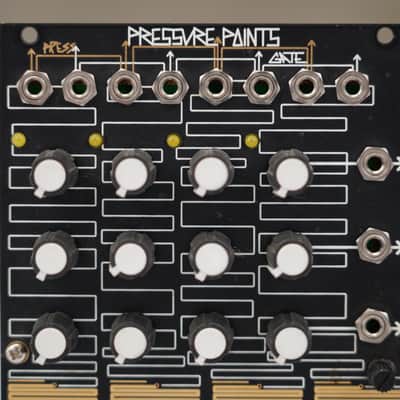

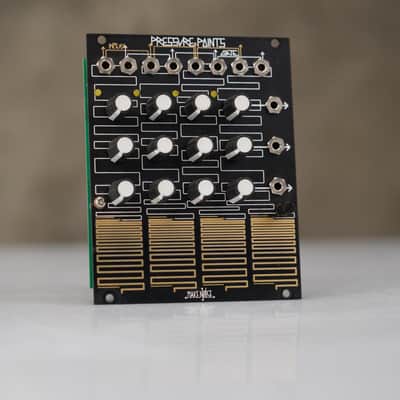

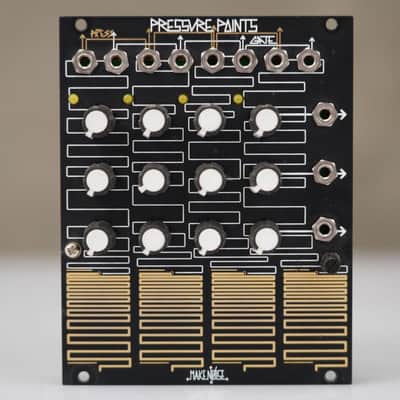

PRODUCT DESCRIPTION: This listing is for a Make Noise Music Pressure Points Eurorack Synthesizer Module. The Make Noise Music Pressure Points is a tactile controller and analog sequencer Eurorack module that uses gold-plated copper touch plates to allow manual interactivity with a modular system.

SPECS:

• Touch Plates: Touching these gold-plated plates makes the user part of the circuit, generating three types of signals: Gate, Pressure (CV), and Tuned Voltages.
• Pressure Output (PRESS): Generates a control voltage proportional to the amount of finger contact on the plates, allowing for expressive real-time modulation of pitch or timbre.
• Tuned Voltages: Each of the 4 stages has three knobs to set independent voltages. Touching a stage activates these outputs, effectively acting as a manual preset or 3-channel 4-step sequencer.
• Gate Outputs: Provides both a global gate (active when any plate is touched) and individual gates for each of the four stages.
• Width: 20HP.
• Depth: 24mm (approx. 0.94 inches).
• Power Consumption: 20mA @ +12V; 0mA @ -12V.
• Panel: Gold-plated copper touch plates with a black finish.

ACCESSORIES INCLUDED:

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 2" x 4"
