ADDAC System ADDAC102 VC FM Radio Eurorack Module #58537

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58537

BRAND: ADDAC System

MODEL:  ADDAC102 VC FM Radio

FUNCTION: Eurorack Synthesizer Module

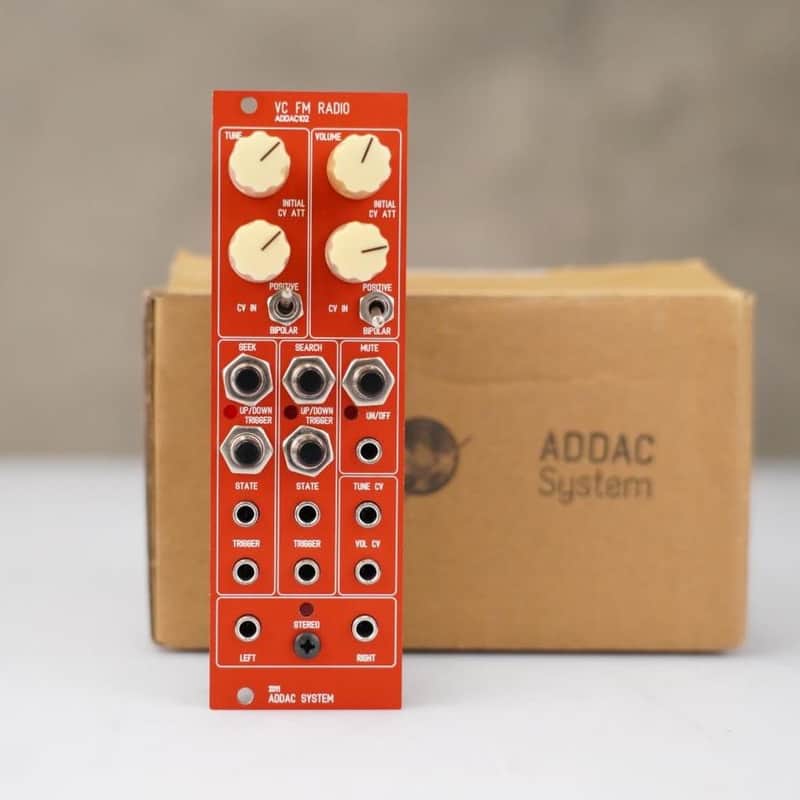

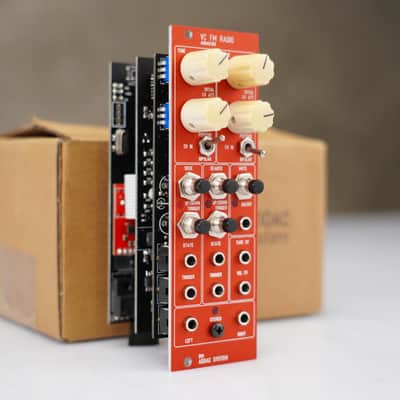

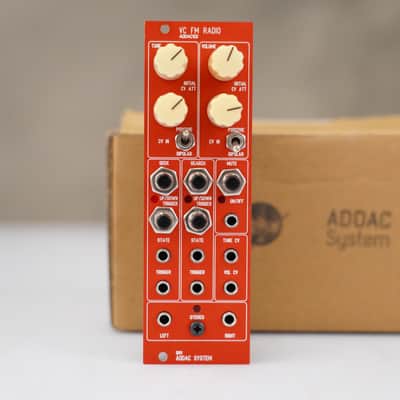

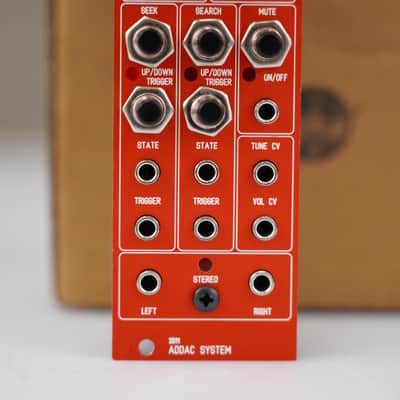

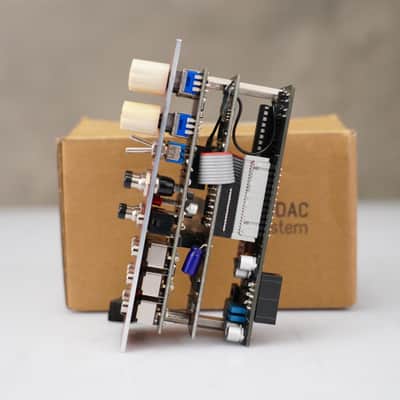

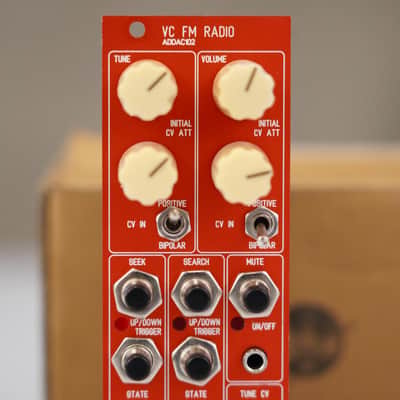

PRODUCT DESCRIPTION: This listing is for an ADDAC System ADDAC102 VC FM Radio Eurorack Synthesizer Module. The ADDAC System ADDAC102 VC FM Radio is an 8HP Eurorack module that allows you to tune into live FM radio broadcasts and use them as sound sources or noise generators within your synthesizer system.

SPECS:

• Voltage Control (CV): Features full CV control over tuning and volume with built-in attenuators that can be switched between unipolar or bipolar modulation.
• Station Navigation: Includes manual buttons and gate inputs for Seek (finding the next clear station) and Search (incremental frequency steps) functions.
• Internal VCA: The volume control acts as a voltage-controlled amplifier (VCA), allowing for dynamic modulation of the radio signal.
• Stereo Output: Provides a stereo audio output with a dedicated LED indicator that displays if a station is transmitting in mono or stereo.
• Noise Source: Excellent for capturing electromagnetic interference and static between stations for textural sound design.
• Width: 8 HP.
• Depth: 50mm (Version 2 is skiff-friendly).
• Power Consumption: 100 mA each for both +12V and -12V rails.
• Frequency Range: Standard FM range (typically 87.5 to 108 MHz), with a dedicated jumper to switch between EU (100KHz) and US (200KHz) channel spacing.
• Inputs/Outputs: Includes CV inputs for Tune/Volume, gate inputs for Seek/Search/Mute, and an external wire antenna connected via a 2.5mm jack.

ACCESSORIES INCLUDED: This item comes as seen in photos and includes an original ADDAC box.

EXTRAS INCLUDED:

• Eurorack Power Cable
• (2) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 4" x 4"
