WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.
PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.
INVENTORY #58431
BRAND: Malekko Heavy Industry
MODEL: SYNC
FUNCTION: Eurorack Synthesizer Module

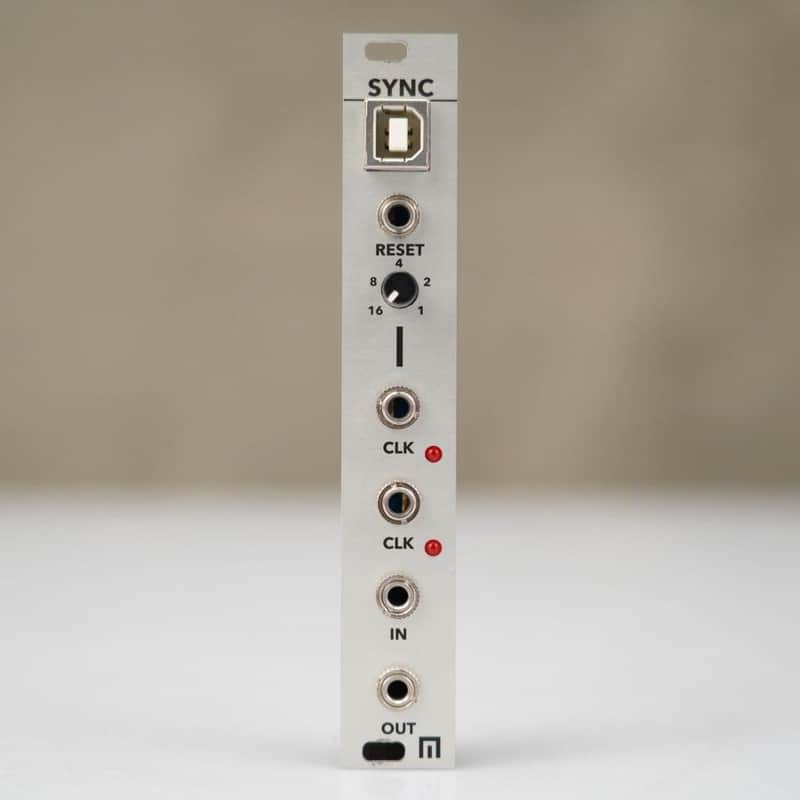

PRODUCT DESCRIPTION: This listing is for a Malekko Heavy Industry SYNC Eurorack Synthesizer Module. The Malekko Heavy Industry SYNC is a compact 4HP USB and MIDI interface designed to synchronize Eurorack modular systems with computers (DAWs) or external hardware. It serves as a primary clock source that can be further expanded with dedicated CV/Gate or DIN Sync modules.
SPECS:
- Connectivity: Features a USB connection for direct computer syncing and 3.5mm MIDI In/Out/Thru jacks for connecting external hardware.
- Clock Outputs: Provides a fixed 1/16 note clock output, a variable clock output, and a reset output to maintain timing across your system.
- Class Compliant: Plug-and-play operation on both PC and Mac without requiring additional drivers.
- Expansion Ready: Includes a 6-pin connector on the back to link with optional expanders like the Malekko CV/Gate or DIN Sync modules.
- Width: 4HP.
- Depth: 30mm.
- Current Draw: 37mA (+12V) and 6mA (-12V).
- I/O: 0-5V Logic I/O for clock and reset signals.
ACCESSORIES INCLUDED:
- Eurorack Power Cable
- (2) Eurorack Screws & Washers
UNPACKAGED WEIGHT: 1 lbs.
UNPACKAGED DIMENSIONS: 5" x 1" x 2"
