Antimatter Sub Ring Eurorack Module w/ Box #58549

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58549

BRAND: Antimatter Audio

MODEL:  Sub Ring

FUNCTION: Eurorack Synthesizer Module

PRODUCT DESCRIPTION: This listing is for an Antimatter Audio Sub Ring Eurorack Synthesizer Module. The Antimatter Audio Sub Ring is a 5-channel analog utility and mixer module designed to add harmonic depth and character to oscillator signals in a Eurorack system. It combines two sub-octave generators, an analog noise source, and a ring modulator into a compact 6HP footprint.

SPECS:

• The Sub Ring serves as a specialized mixer wherein various harmonic elements are derived from a single primary input.
• 5-Channel Mixer: Sums all internal and external signals at the "Mix" output with a 1.5X amplification factor to ensure strong output levels.
• Sub-Octave Generators: Generates two analog sub-octaves (-1 and -2 octaves) derived directly from Input 1, each with its own level control.
• Analog Noise: Includes an internal white noise generator with a dedicated level control and its own independent output jack.
• Ring Modulator: Modulates Input 1 with Input 3 (or an external signal patched into the Ring input) to create complex sideband frequencies.
• Normalization Functions: Inputs 2 and 4 are normalled to internal functions but can be overridden by external signals to act as standard mixer inputs.
• Width: 6HP.
• Depth: 38mm to 39mm.
• Current Draw: 35mA on both the +12V and -12V rails.
• Coupling: DC-coupled circuitry, allowing the module to process control voltages (CV) as well as audio.
• Format: Standard Eurorack 3U.

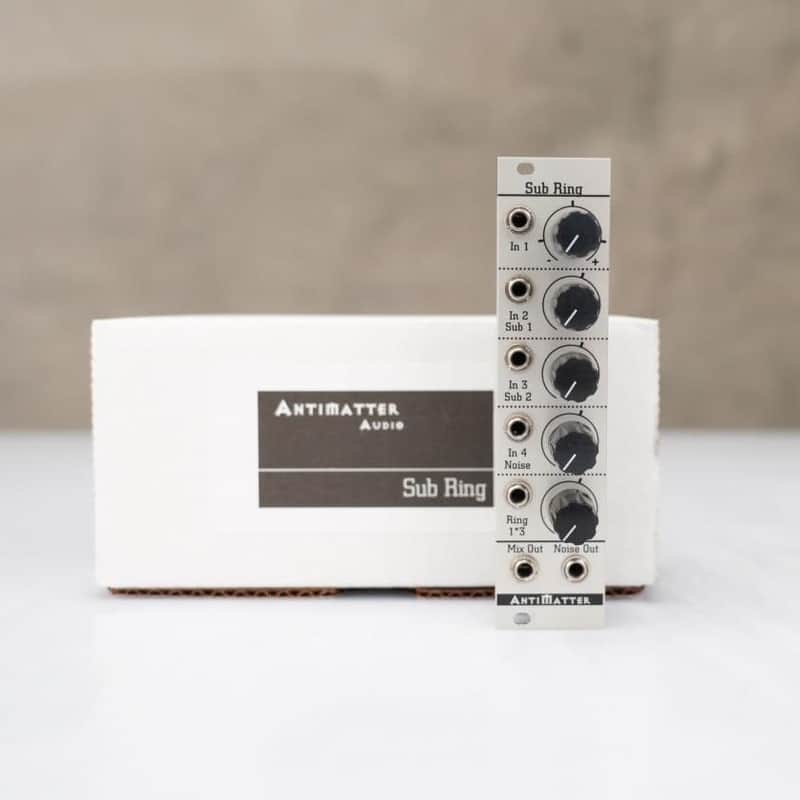

ACCESSORIES INCLUDED: This item comes as seen in photos and includes the original Antimattter box.

• Eurorack Power Cable

• (2) Eurorack Screws

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 7" x 3" x 3"
