WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58555

BRAND: 4ms

MODEL: Quad Clock Distributor

FUNCTION: Eurorack Synthesizer Module

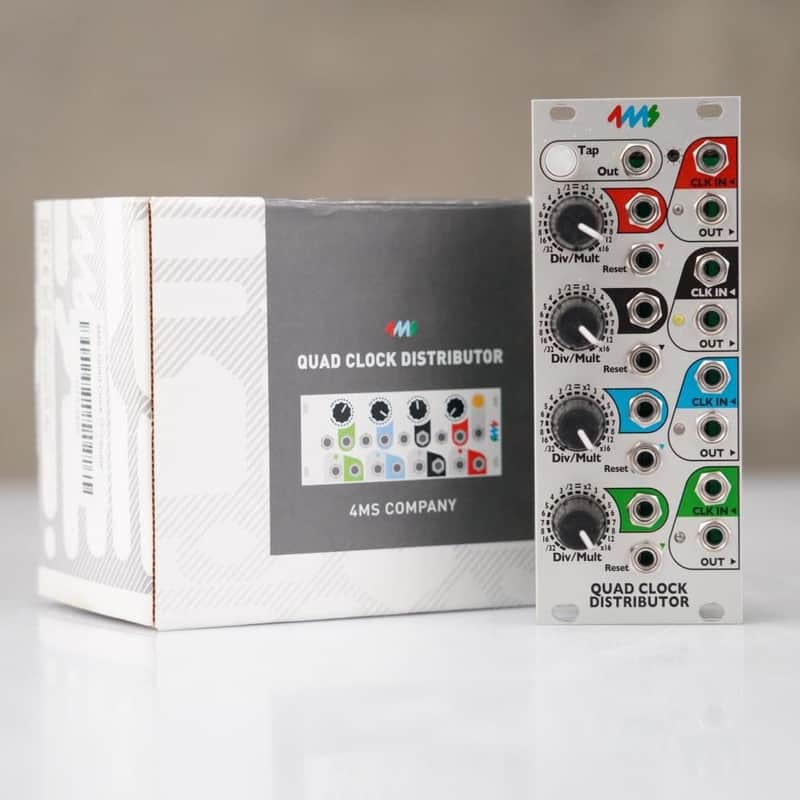

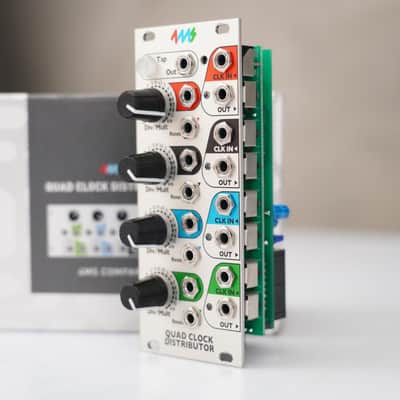

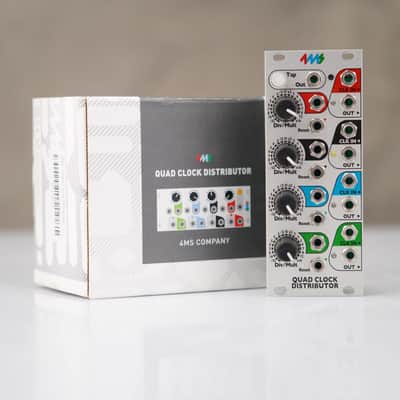

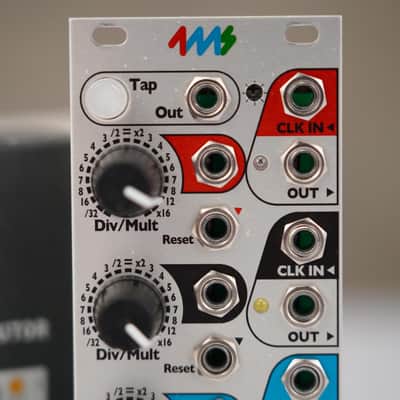

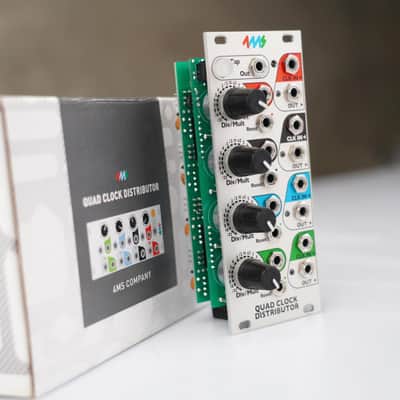

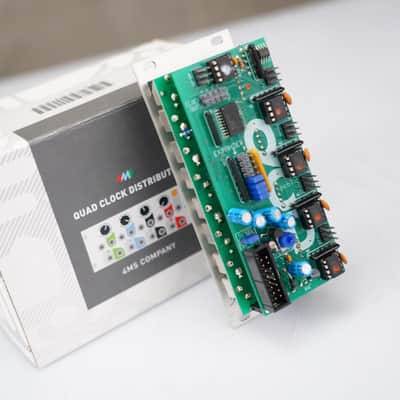

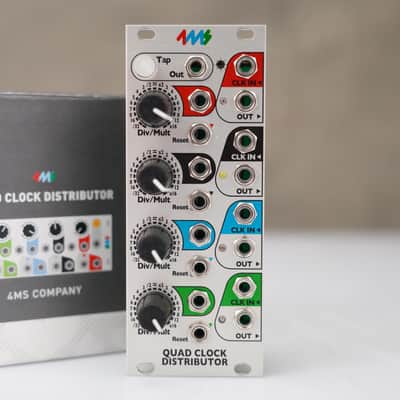

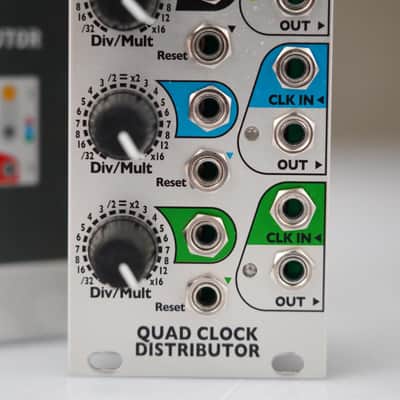

PRODUCT DESCRIPTION: This listing is for a 4ms Quad Clock Distributor Eurorack Synthesizer Module. The 4ms Company Quad Clock Distributor (QCD) is a 10HP Eurorack module designed for complex clock division and multiplication. It features four independent channels that can divide or multiply clock signals from /32 to x16, and it includes a master tap tempo button for head-of-the-chain control.

SPECS:

• Independent Channels: Four voltage-controlled channels, each with its own clock input, reset jack, and division/multiplication CV input.
• Flexible Sync: Each channel can sync to the internal tap tempo, an external clock, or the channel directly above it.
• Clock Distribution: Provides five synchronized outputs: one for each of the four channels and a fifth output specifically for the master tap tempo.
• Reset Triggers: Individual reset jacks allow for restarting the clock cycle, which can be used to offset phases or create rhythmic shifts.
• Width: 10 HP.
• Depth: 1.0 inch (26mm).
• Power Consumption:
  • +12V rail: 48mA (with jumper for external 5V) or 88mA (using internal 5V).
  • +5V rail: 41mA (if using external 5V jumper).
  • -12V rail: 40mA.

ACCESSORIES INCLUDED: This item comes as seen in photos and includes the original 4ms box.

EXTRAS INCLUDED:

• Eurorack Power Cable
• 8-Pin QCD Expander Cable
• 4ms Instruction Manual
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 3" x 4"
